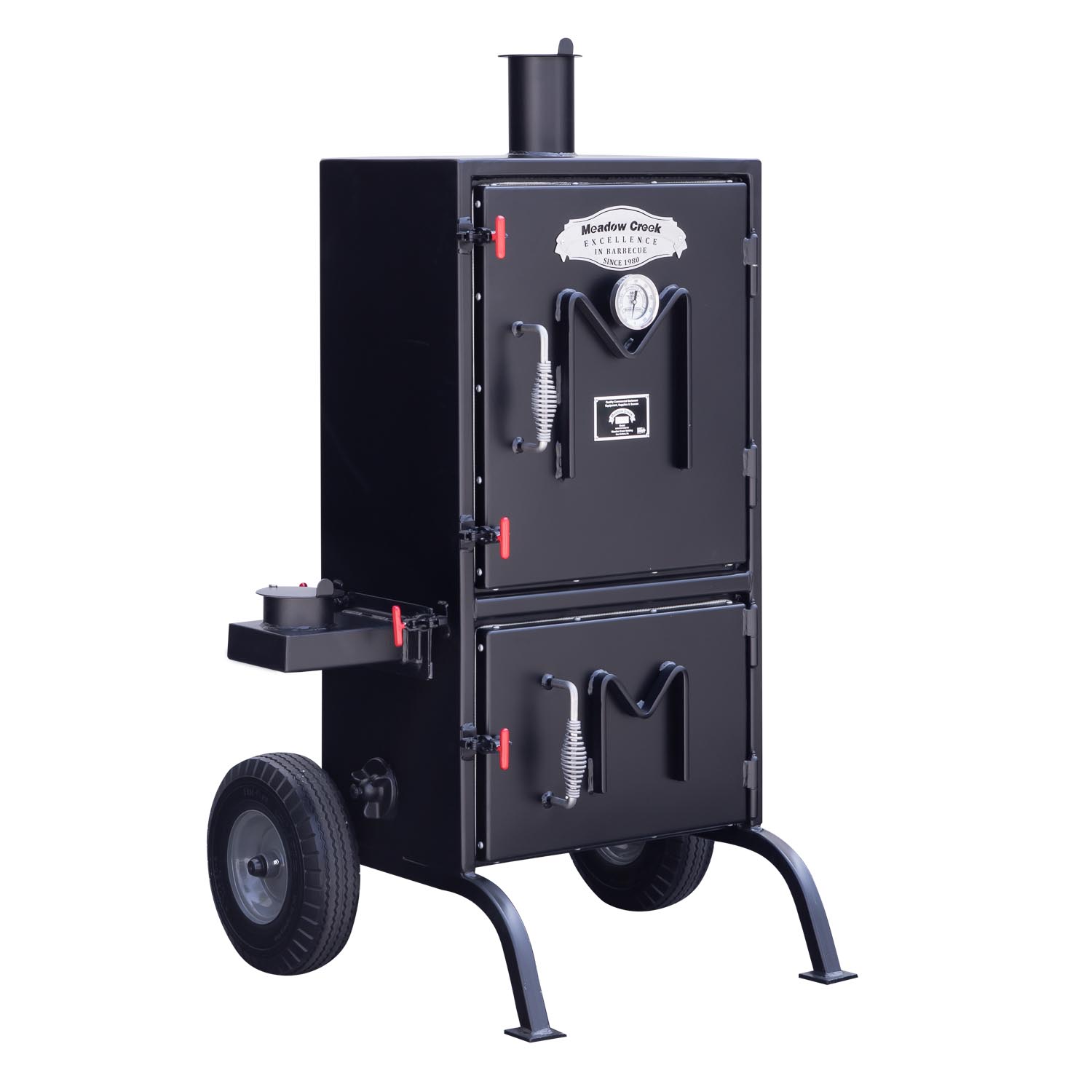

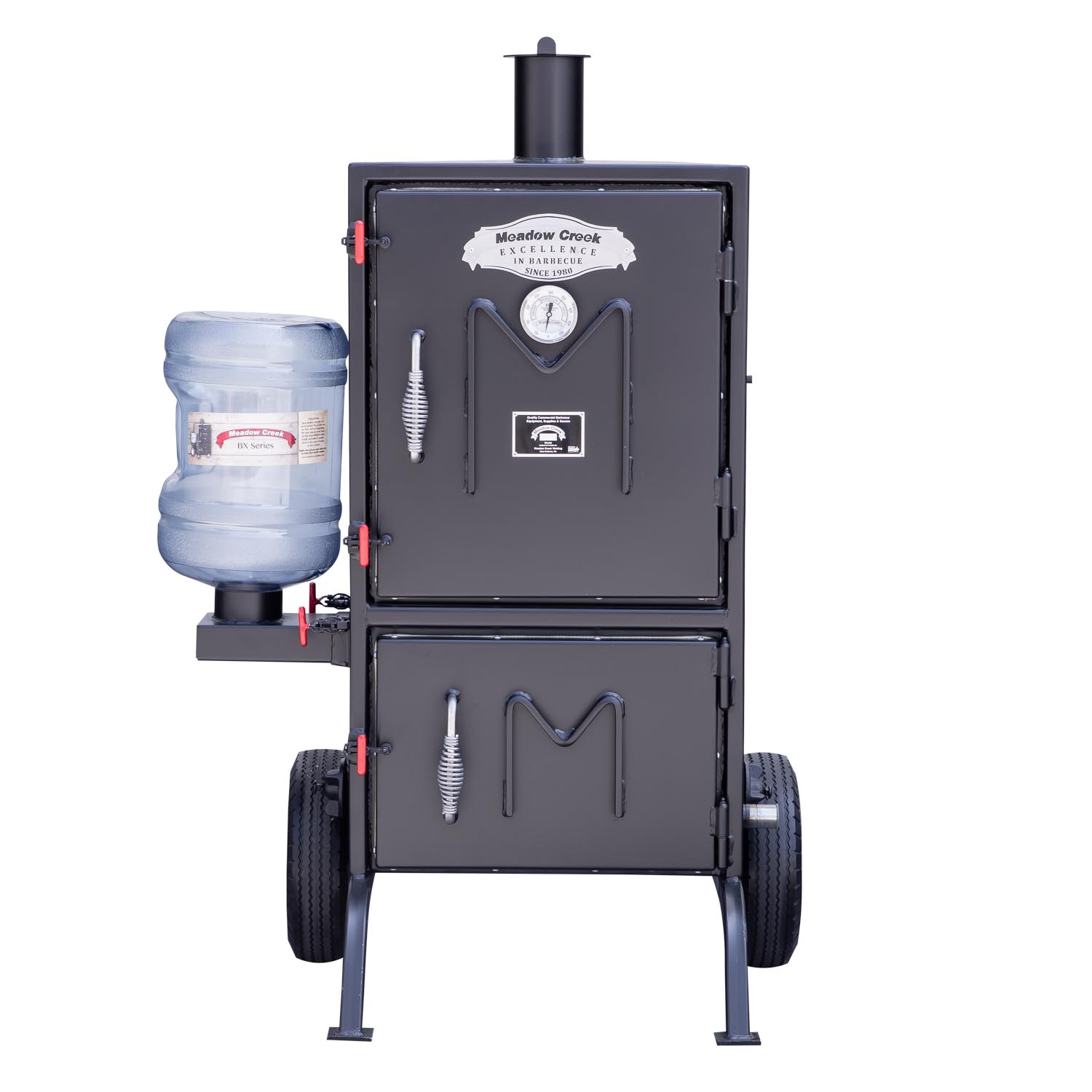

Meadow Creek entered the cabinet smoker market with the development of the several years ago. Now the BX25 Box Smoker offers the same advantages in a smaller size. If you liked the BX50 but thought it’s too heavy or too big for your use, you’ll love the BX25. It weighs 300 pounds less (about half as heavy) and holds half pans instead of full pans.

The BX25 comes with an auto-feed water system and a 5-gallon water jug for hassle-free water smoking just like that in the BX50. It does an excellent job with or without water, unlike some cabinet smokers on the market, such as the famous Backwoods Competitor. This makes it possible to smoke jerky or anything you want to smoke dry (without the use of water).

If you’re looking for a backyard or competition smoker that is compact, easy to use, and fuel efficient—and of course built “Meadow Creek strong”—the BX25 Box Smoker is an excellent choice.


  • Double walls with 1″ insulation

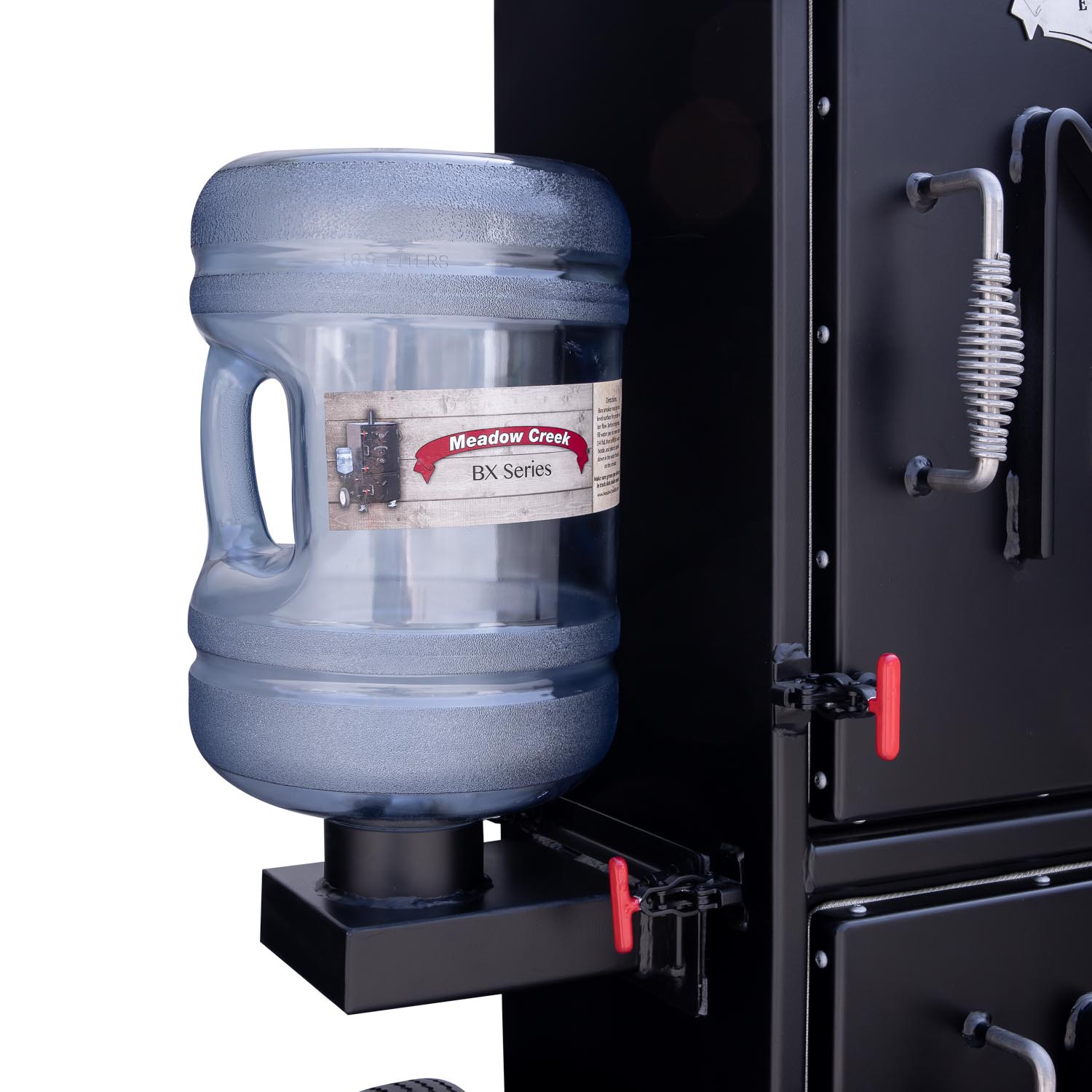

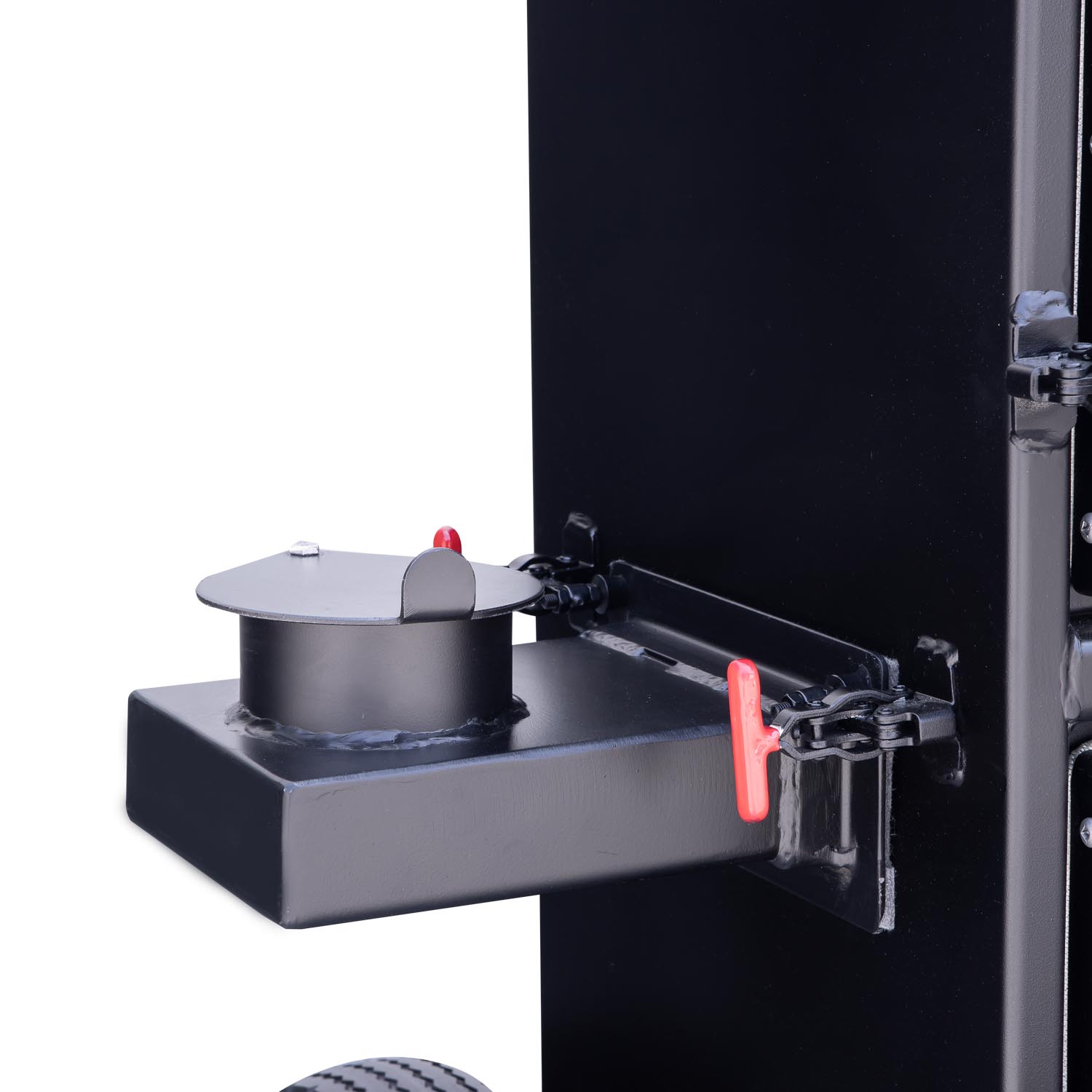

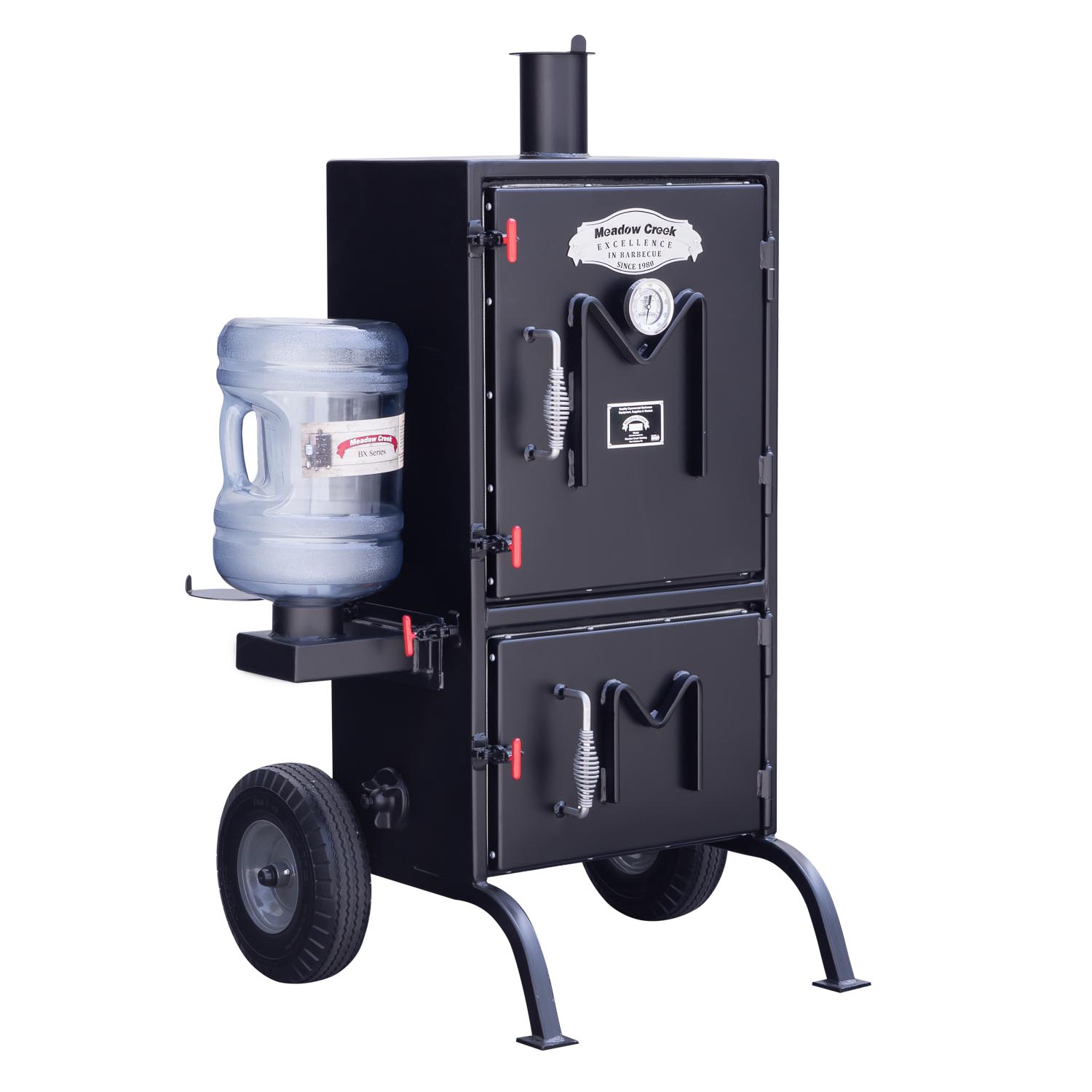

  • Auto-feed water system and a 5-gallon water jug

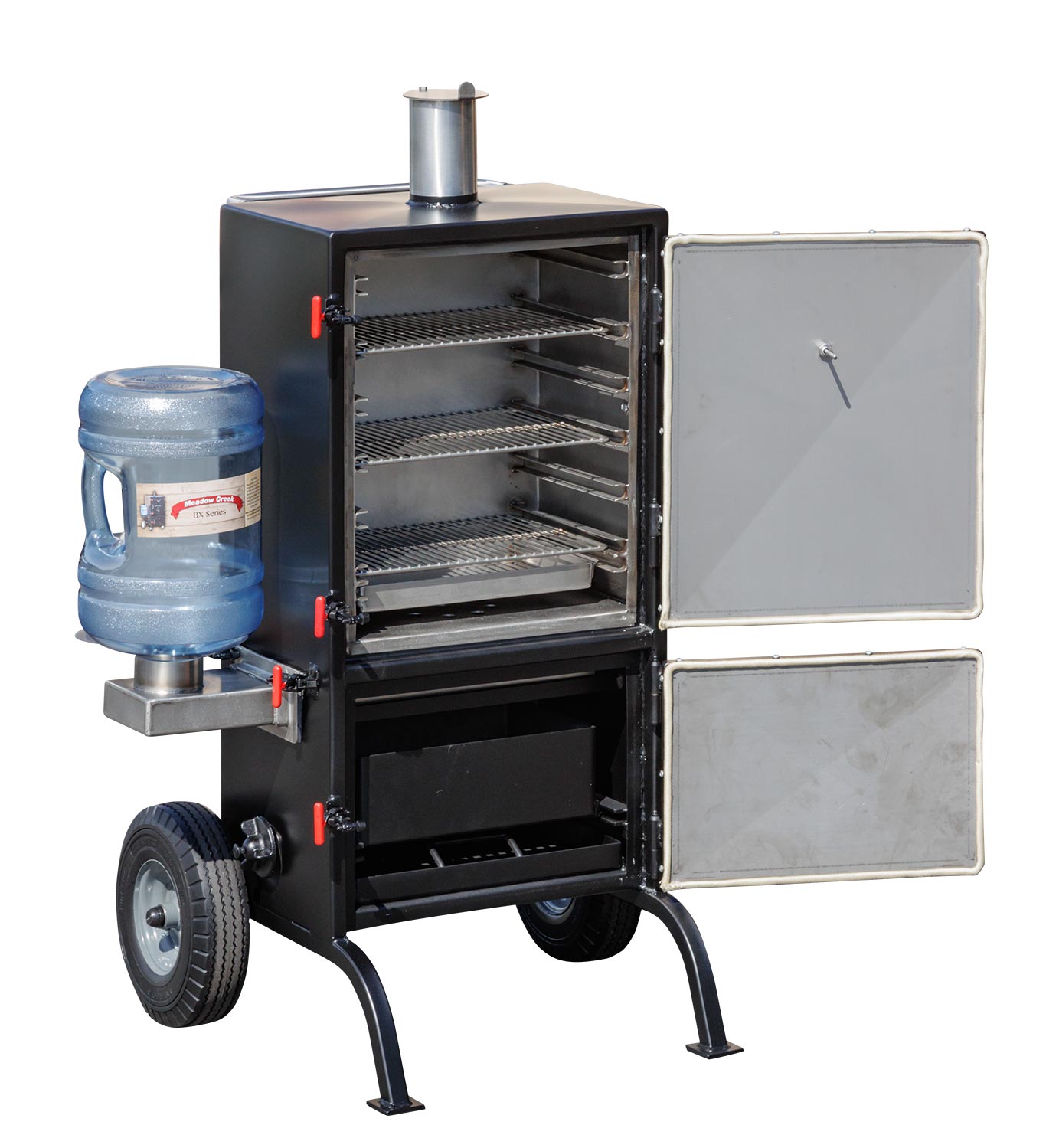

  • Removable water pan
  • Built for wet and dry smoking

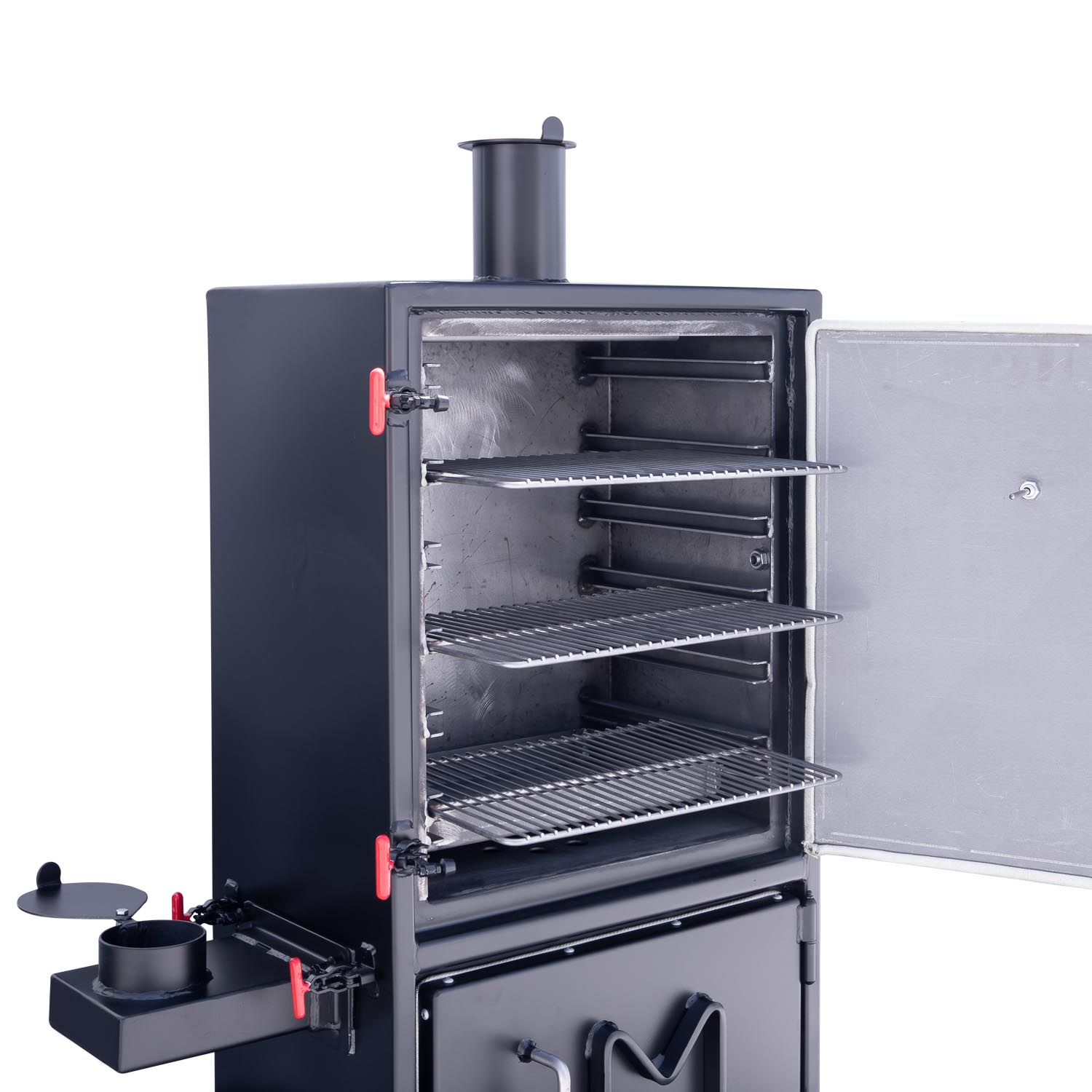

  • Slide-out cooking grates made of rust-free food-grade T304 stainless steel rod
  • Adjustable grate configuration (There are 5 slots total, with the option of adding two more grates.)
  • Painted with black heat-resistant paint in an attractive matte finish

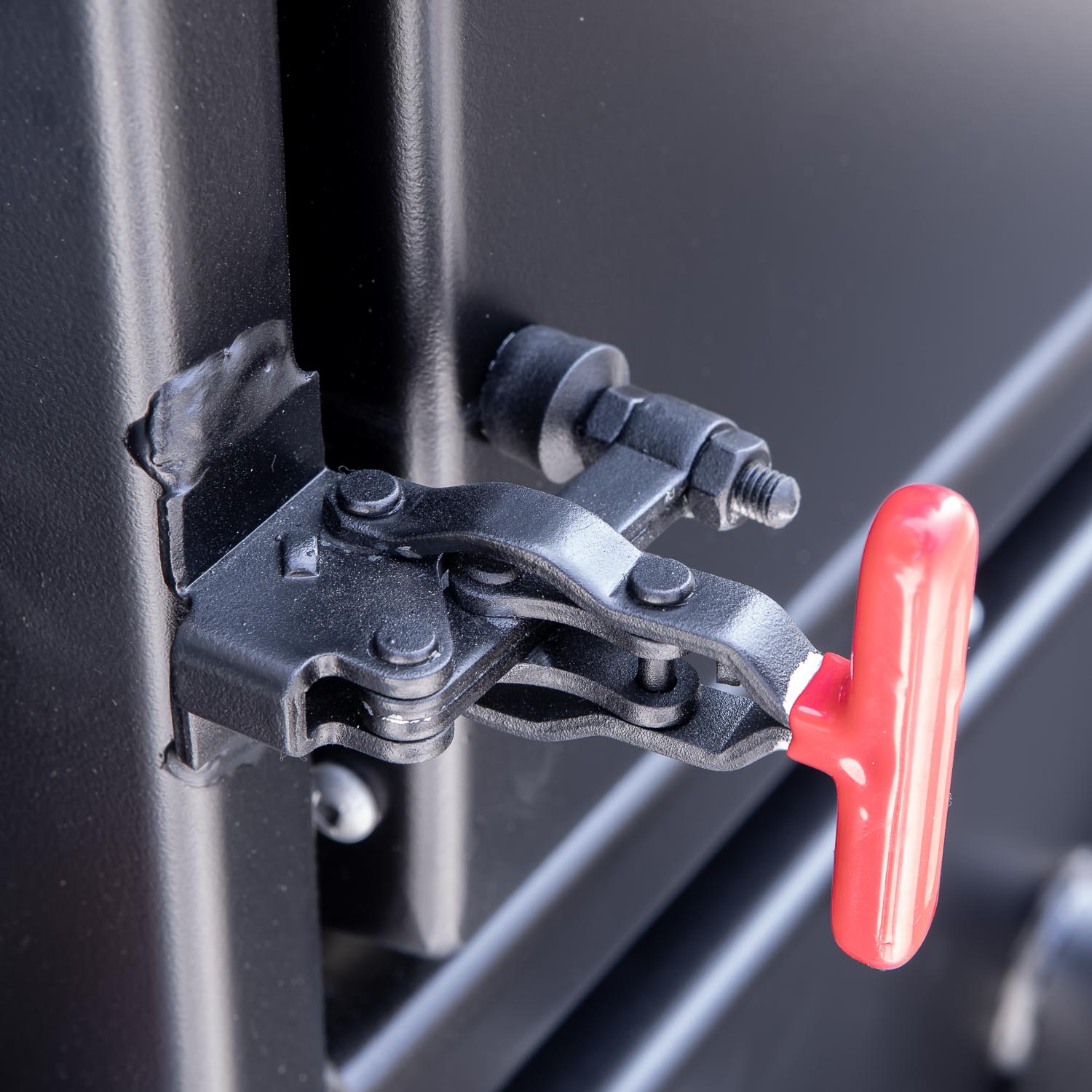

  • Positive-lock latches on all doors

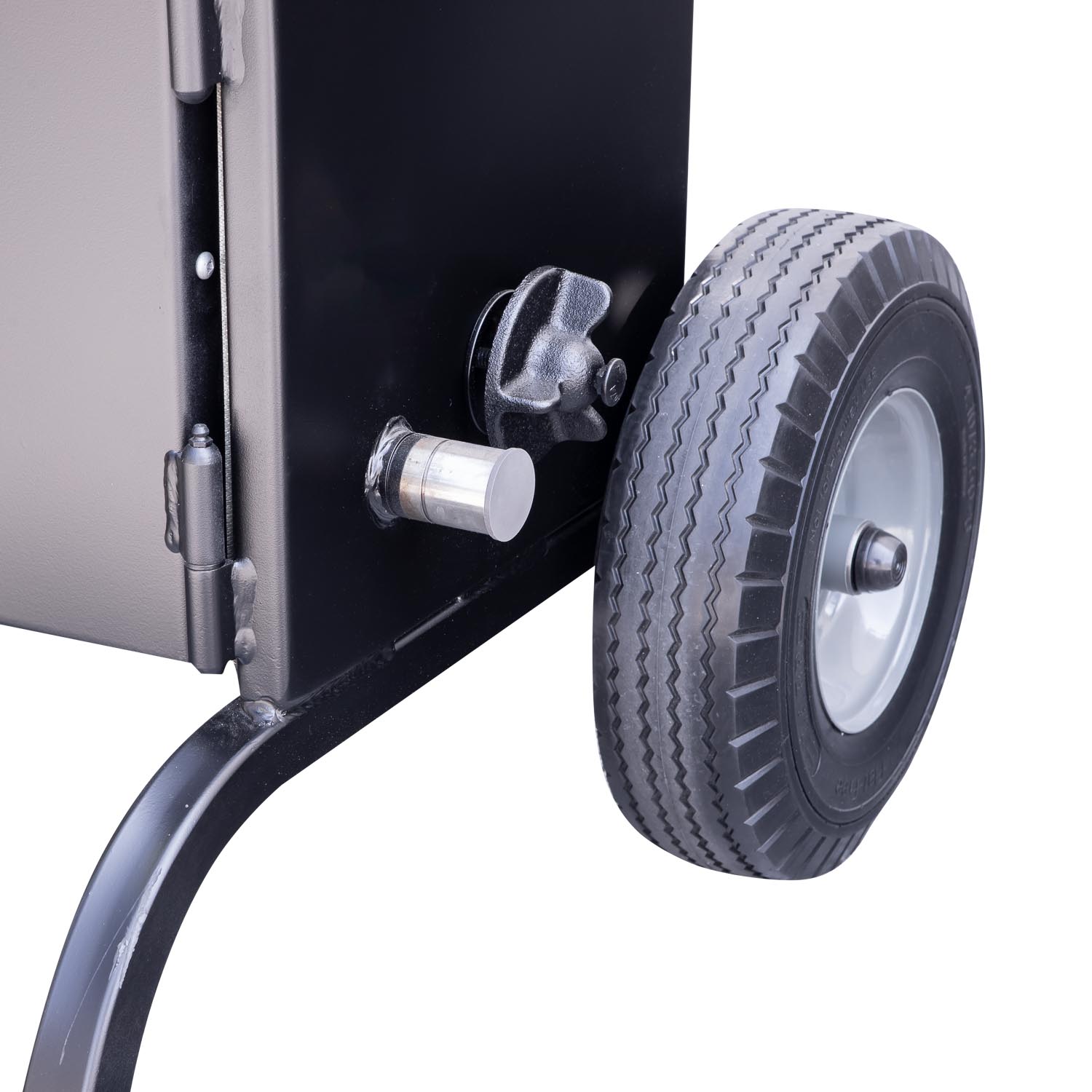

  • Built-in Guru adapter for temp controller mounting

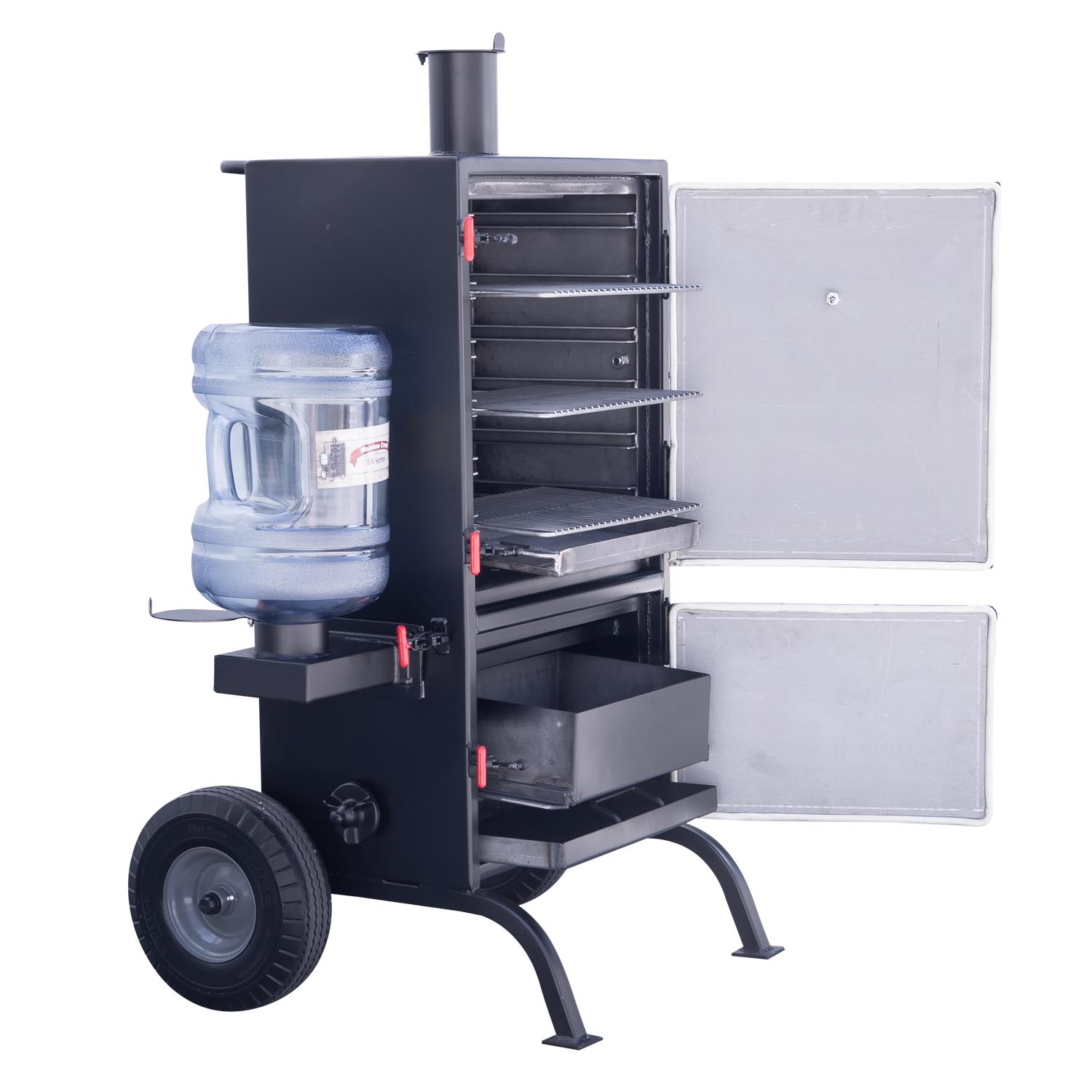

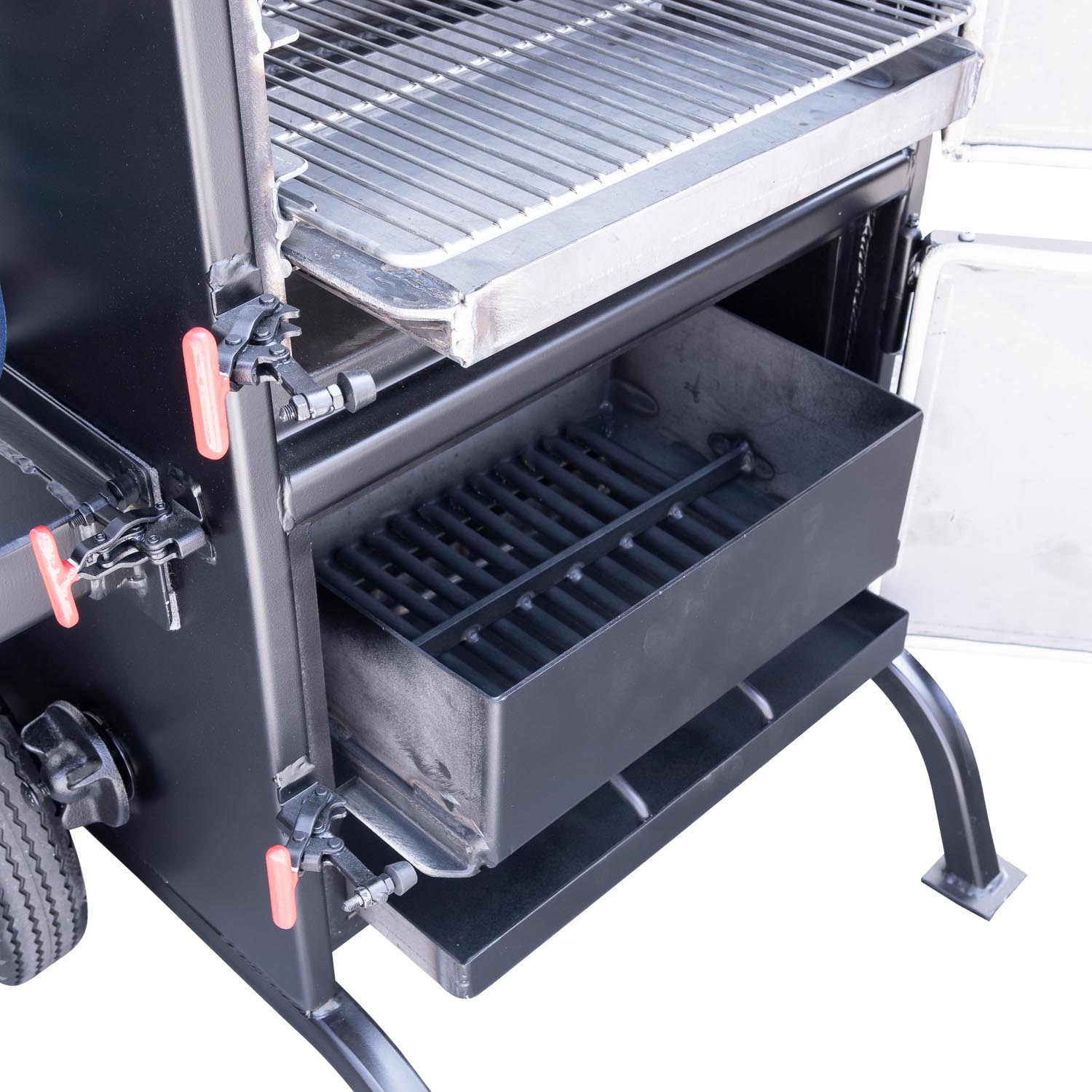

  • Slide-out charcoal basket with a grate for the ashes to fall through
  • Rolls on 2 solid urethane tires and rests on two stabilizer legs
  • Stainless steel handles

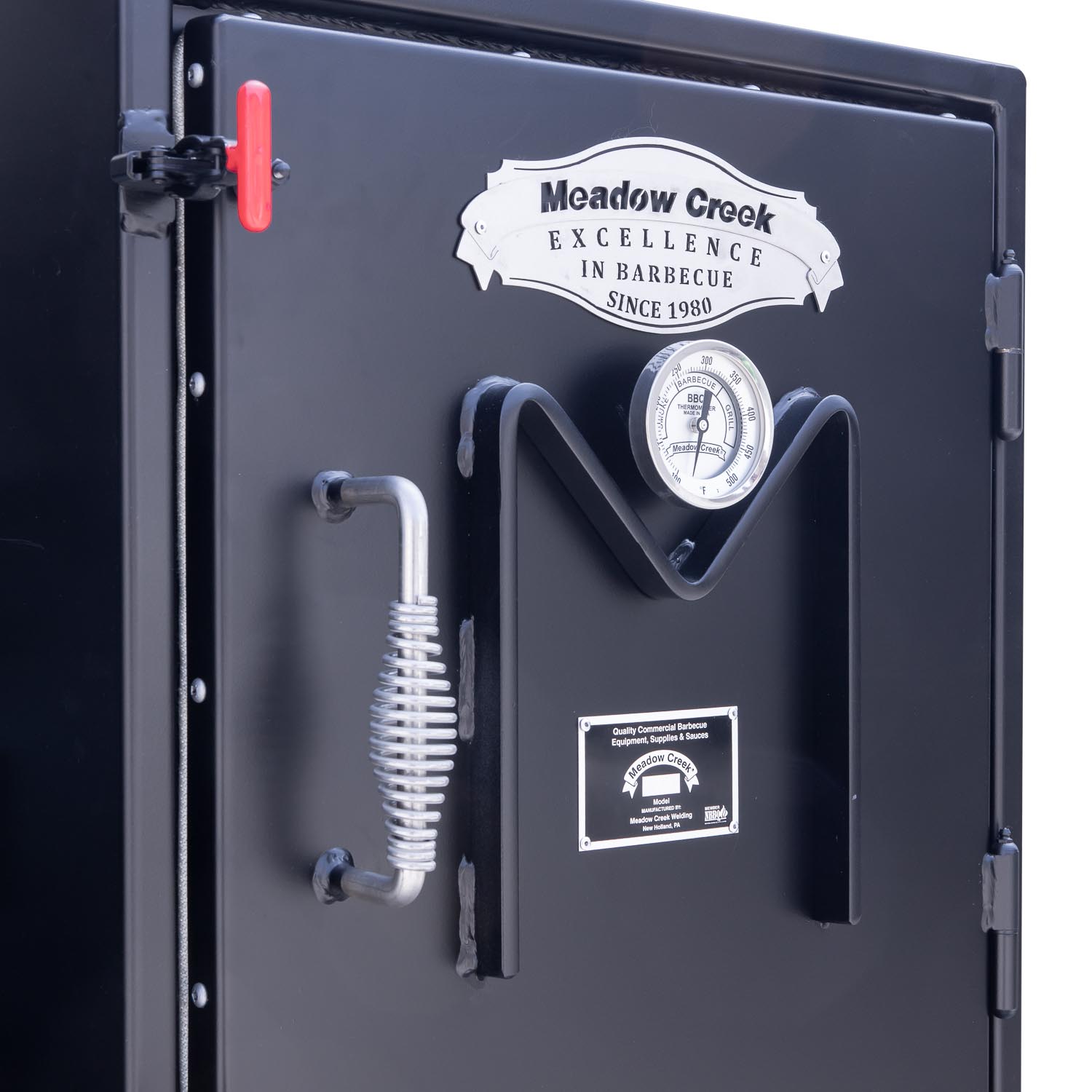

  • Stainless steel calibratable thermometer
  • Cast iron spin vents at the bottom of the firebox for precise draft control
  • Uncoated steel interior

Additional information

Overall Dimensions

55"H x 36"W x 30"D

Smoking Chamber Dimensions

22"H x 20"W x 12"D

Cooking Area

4.19 sq. ft. (604 sq. in.)

Grate Dimensions

11.5" x 17.5"

Grate Style

Wire Grid With 1/2" Spacing

Number of Grates


Fire Basket Dimensions

5"H x 11"W x 15"L


325 lbs.

Shipping Weight

425 lbs.

Insulation Thickness


Metal Thickness

14 Gauge

Capacity Pork Butts


Capacity Baby Back Ribs


Capacity Spare Ribs


Capacity St Louis Ribs


Capacity Whole Briskets


Capacity Brisket Flats


Capacity Chicken Halves
