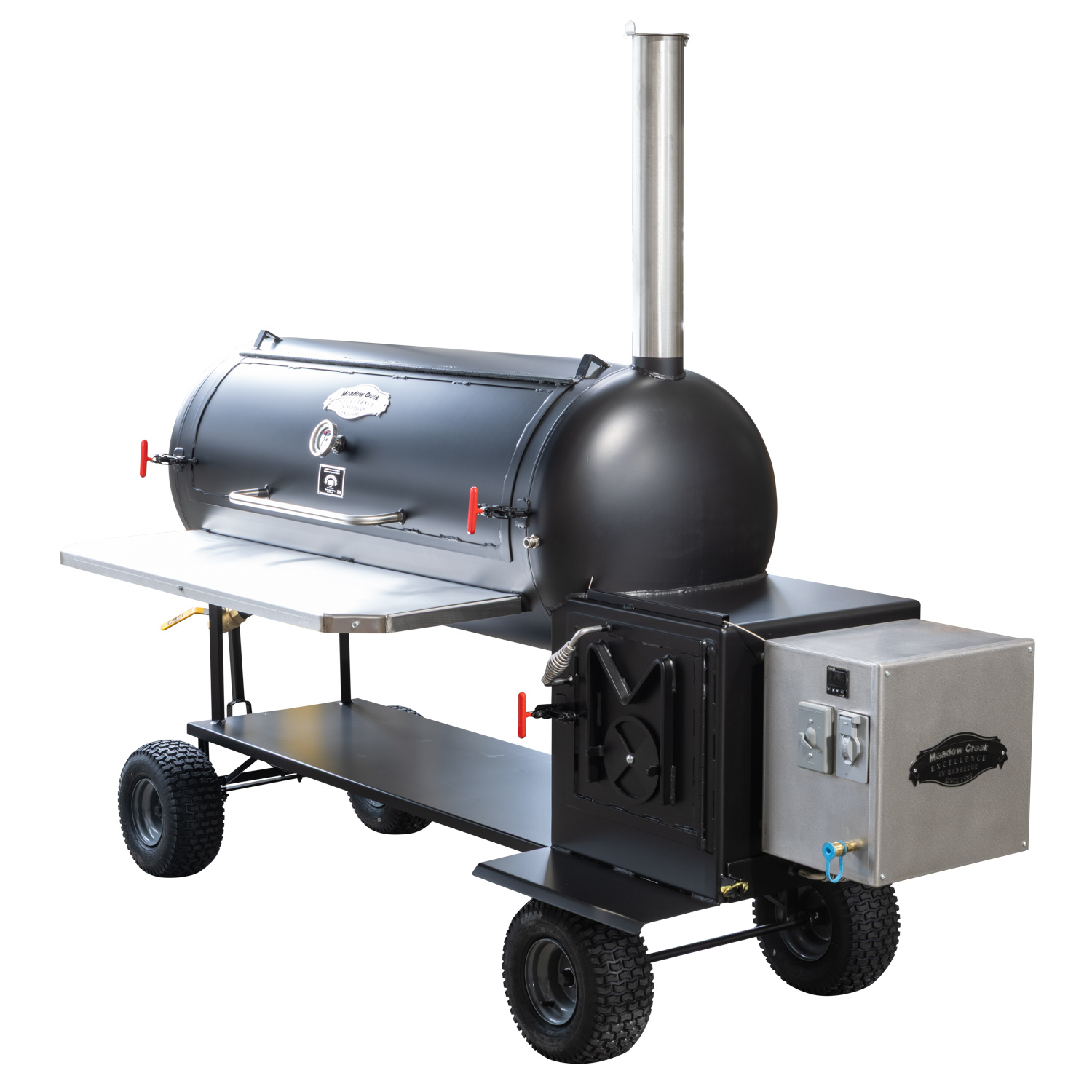

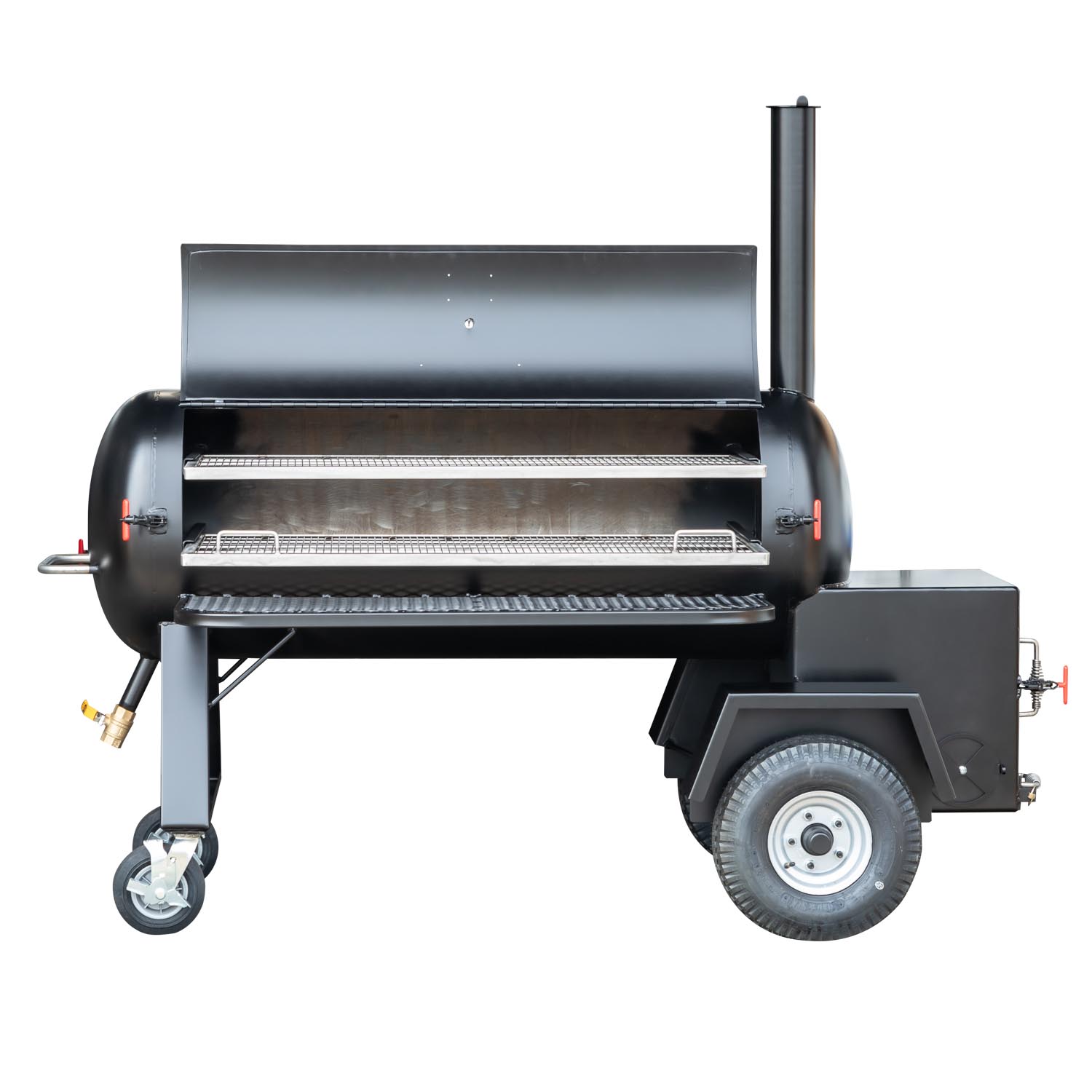

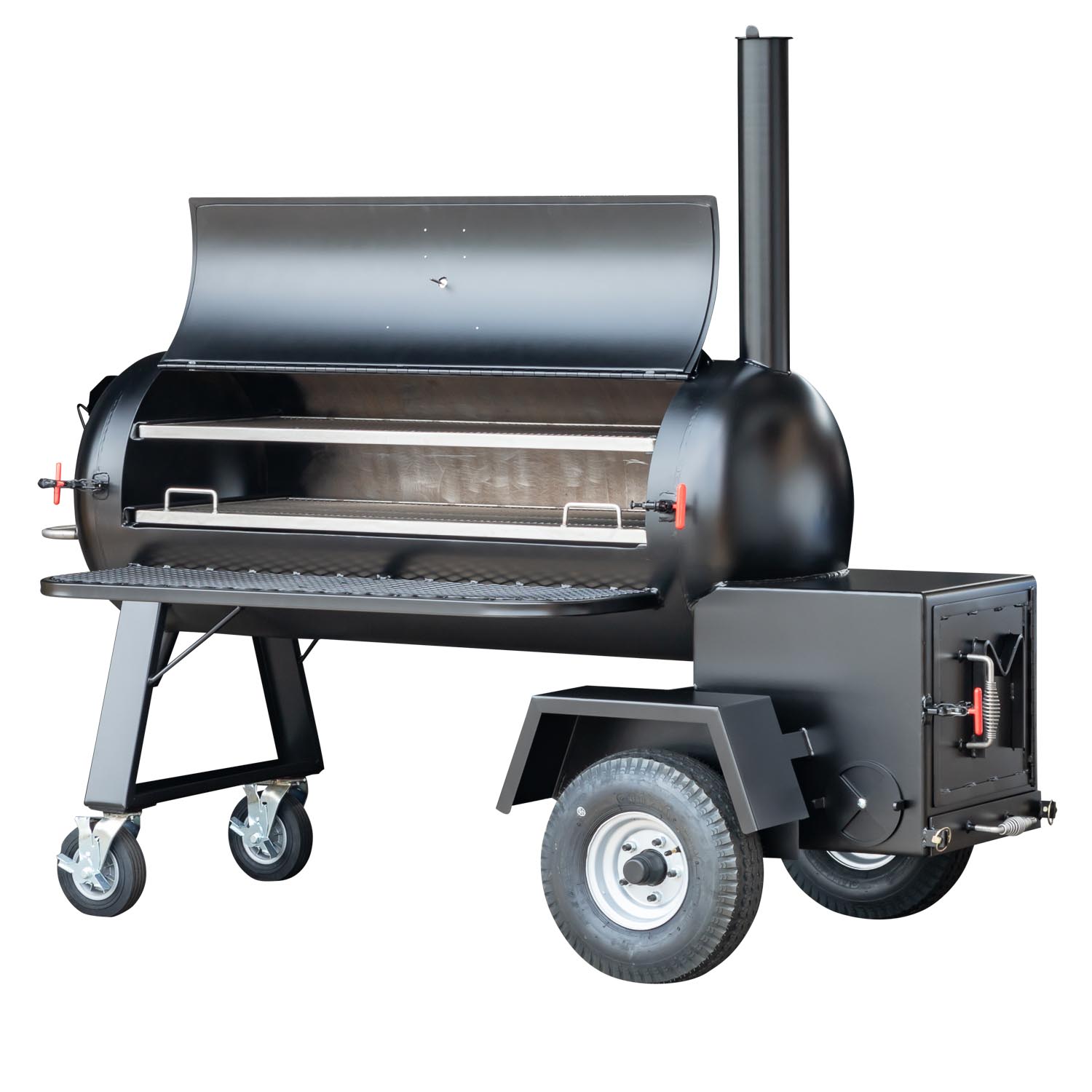

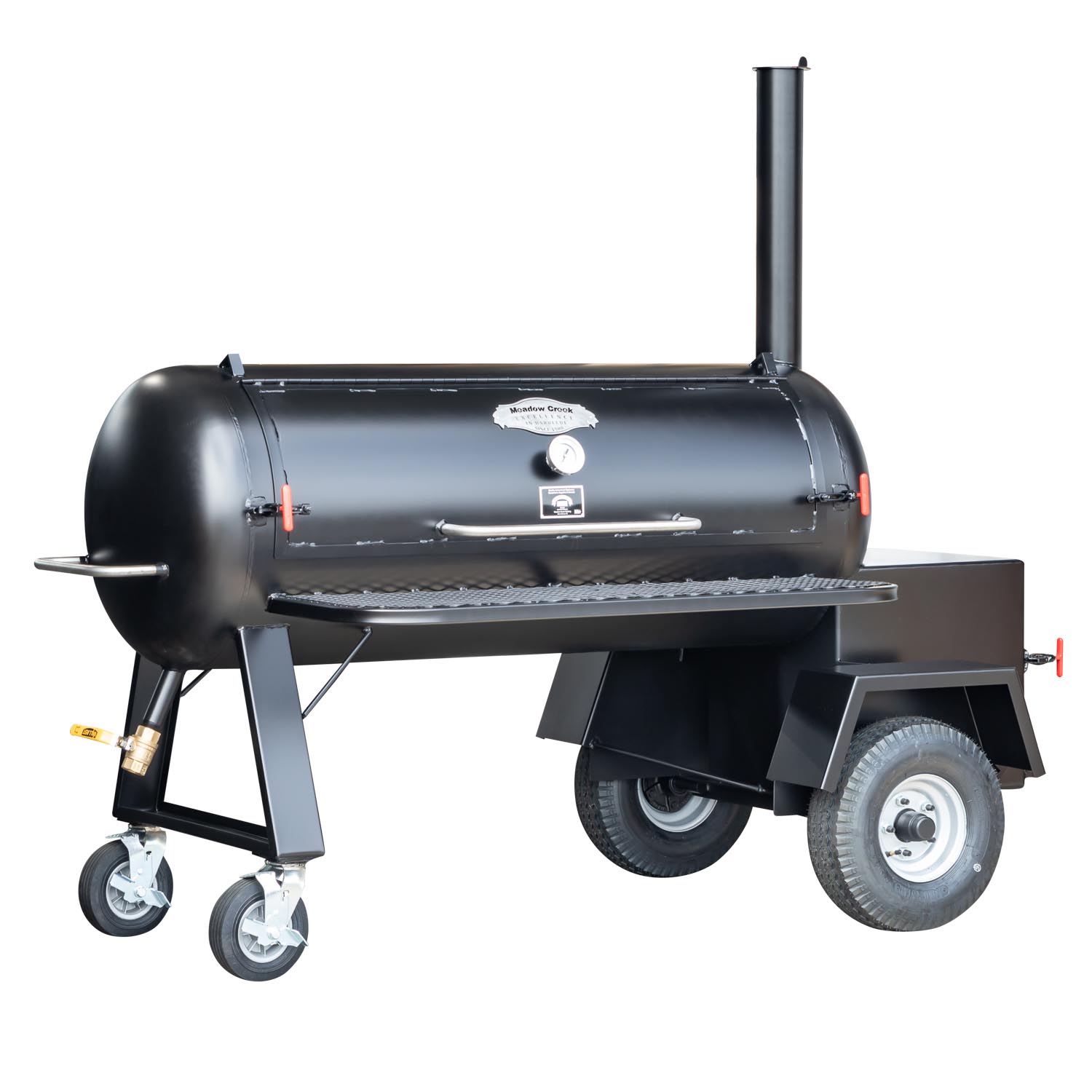

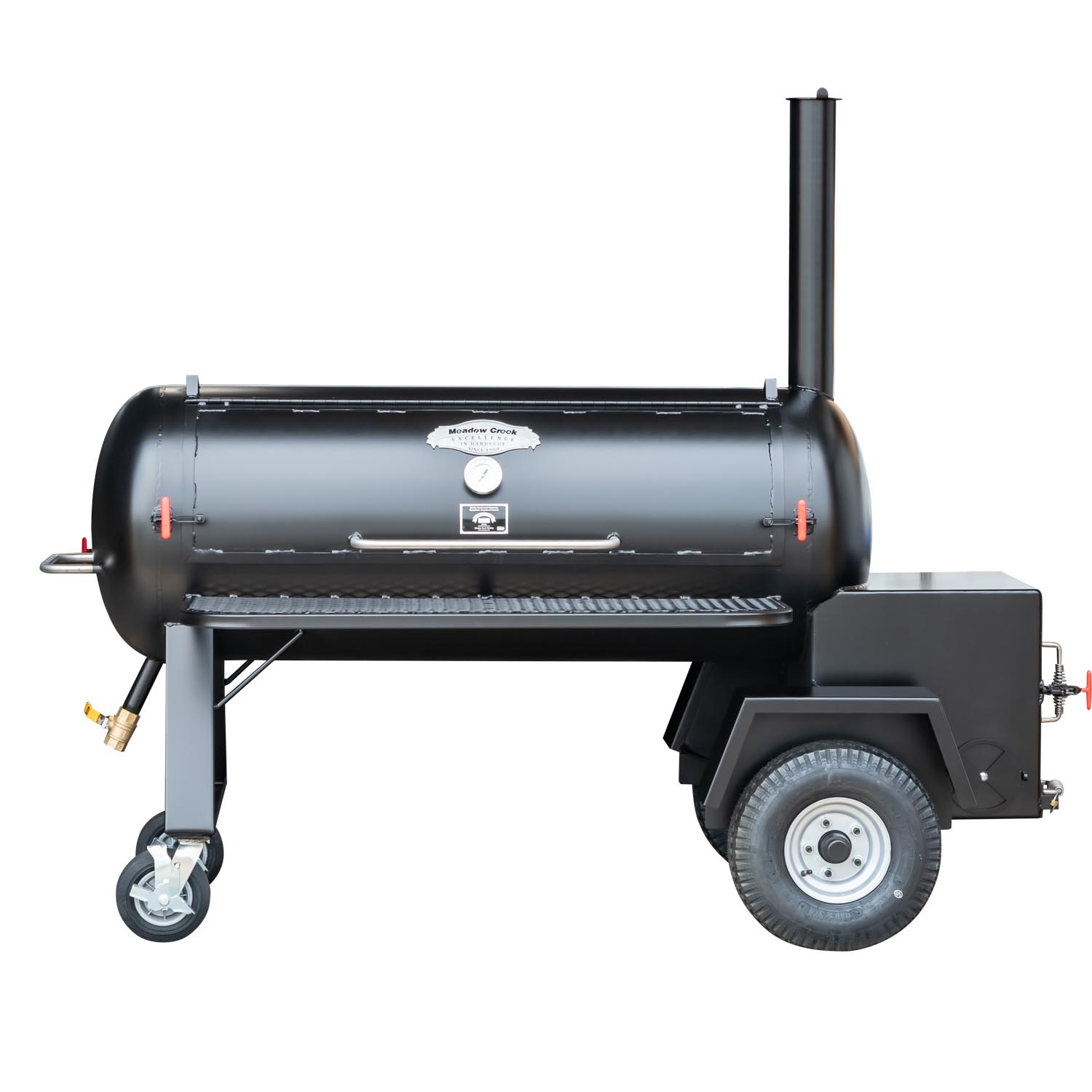

The TS120P BBQ Smoker is the TS120 BBQ Smoker without the trailer. If you want a Meadow Creek tank smoker with 11+ square feet of cooking area, but plan to keep your smoker on the patio or mostly in one area, this is a great choice for you. Reverse flow draft and rounded tank ends make it easy to maintain a steady temperature in this sweet smoker.
This smoker comes standard with “extras” such as food-grade stainless steel grates and a slide-out ash pan. This innovative ash pan makes clean-up quick and easy and helps you get more heat out of the same amount of fuel since the ashes can fall away from the fire. 18″ tires and swiveling, locking casters make it easy to move the smoker on hard surfaces and lock it into place.
Built by experts in welding and trailer manufacturing, this high-end BBQ smoker is ready to help you enjoy easy and profitable barbecues for years to come.
Features
Reverse flow draft

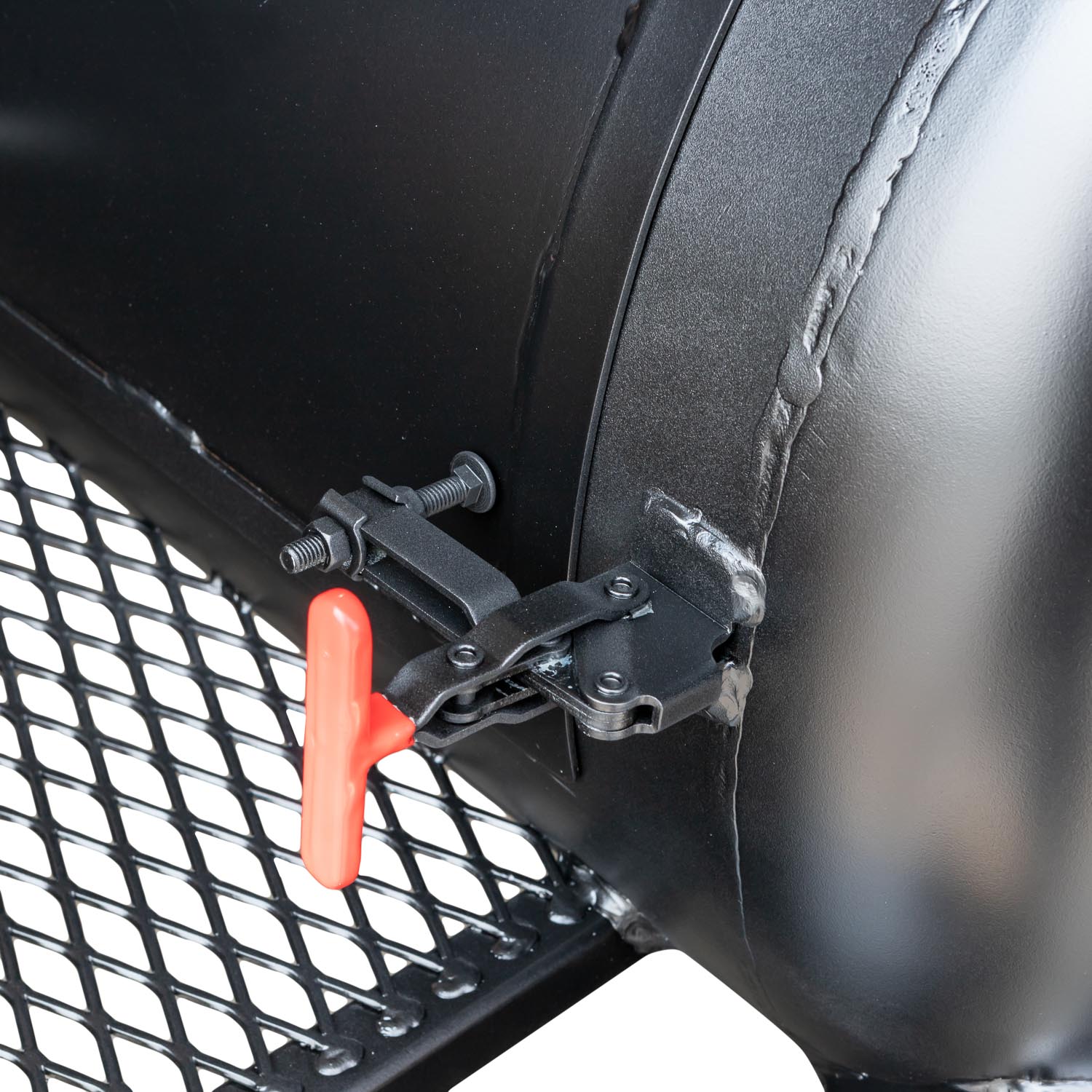

Positive-lock latches on all doors

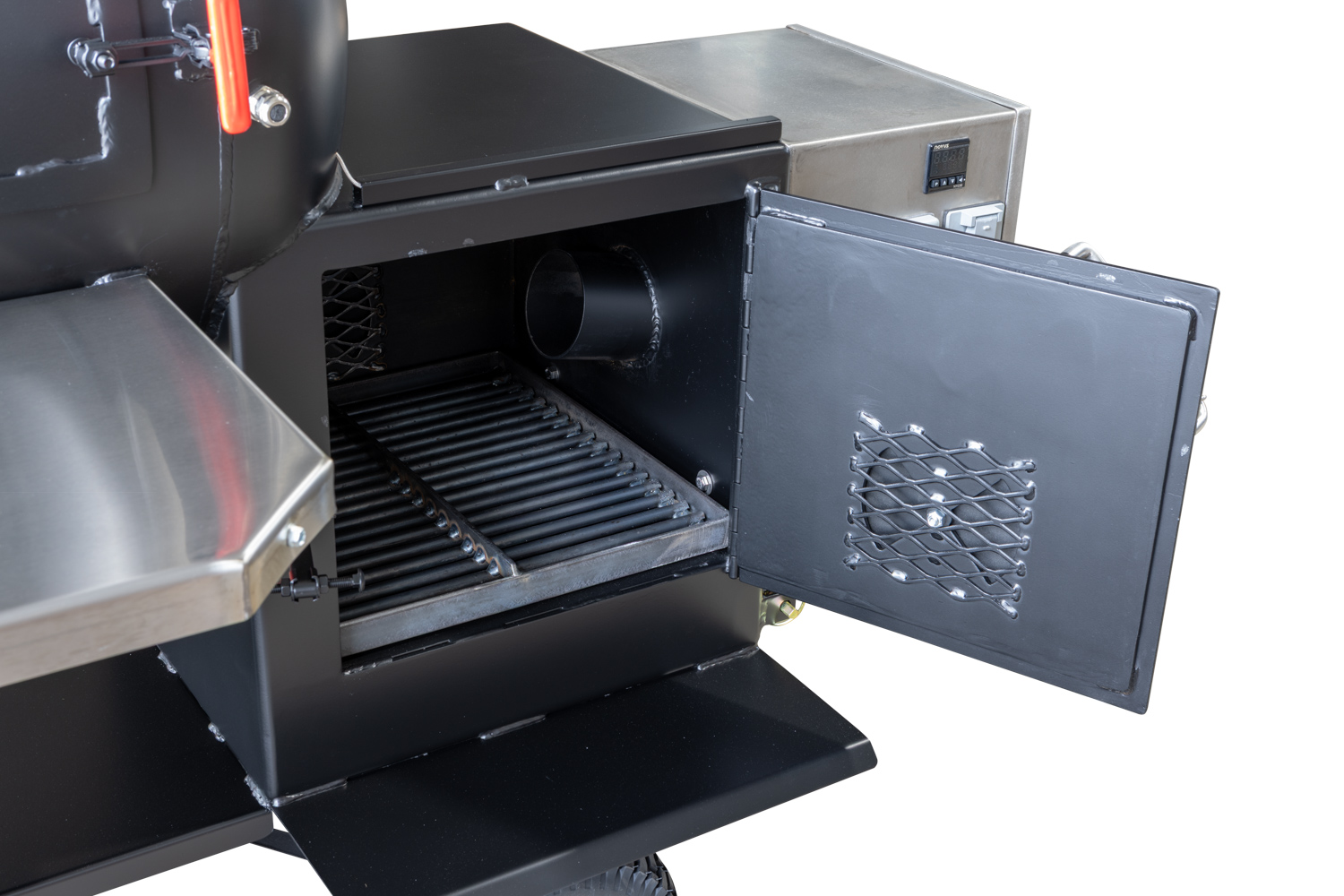

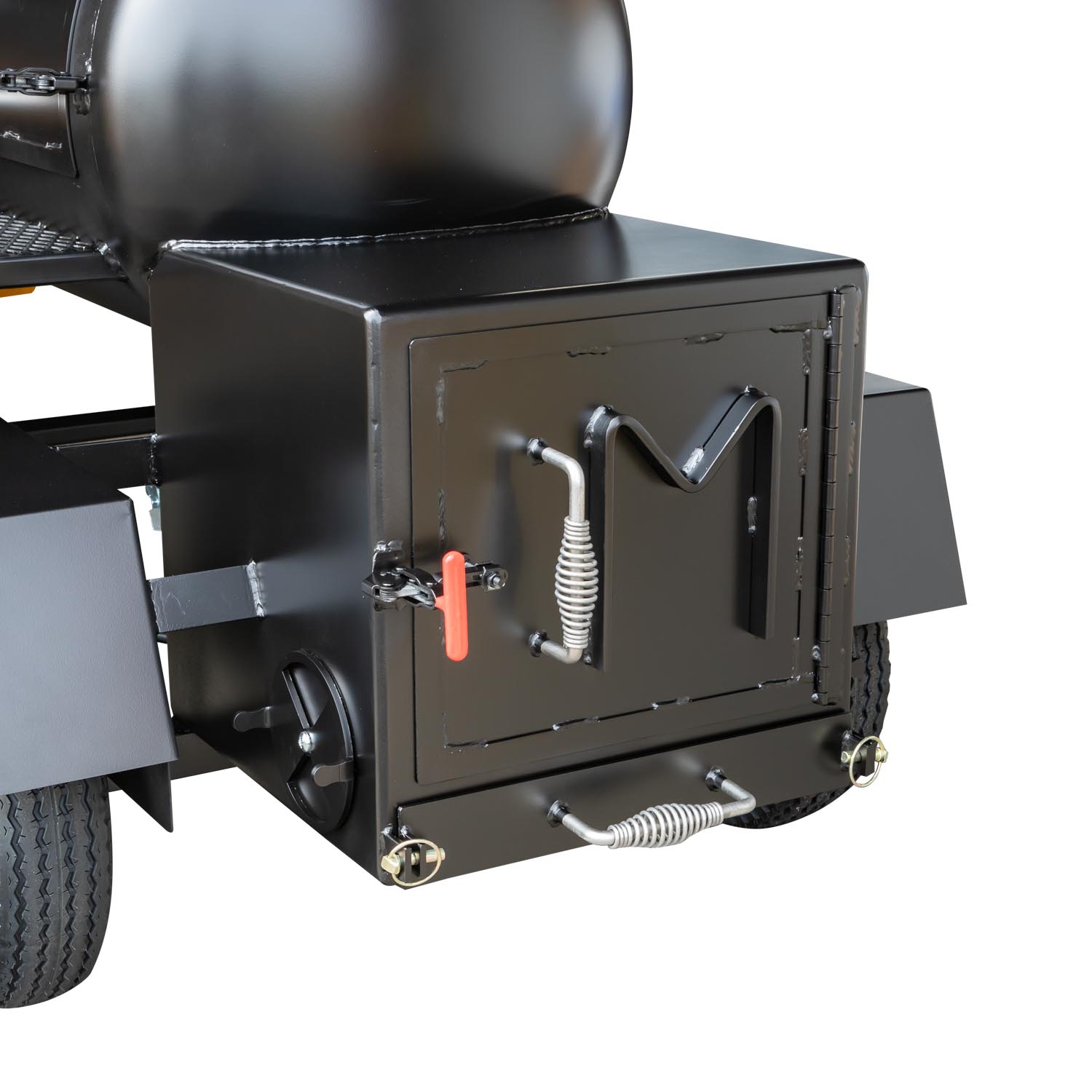

Grate in firebox with slide-out ash pan

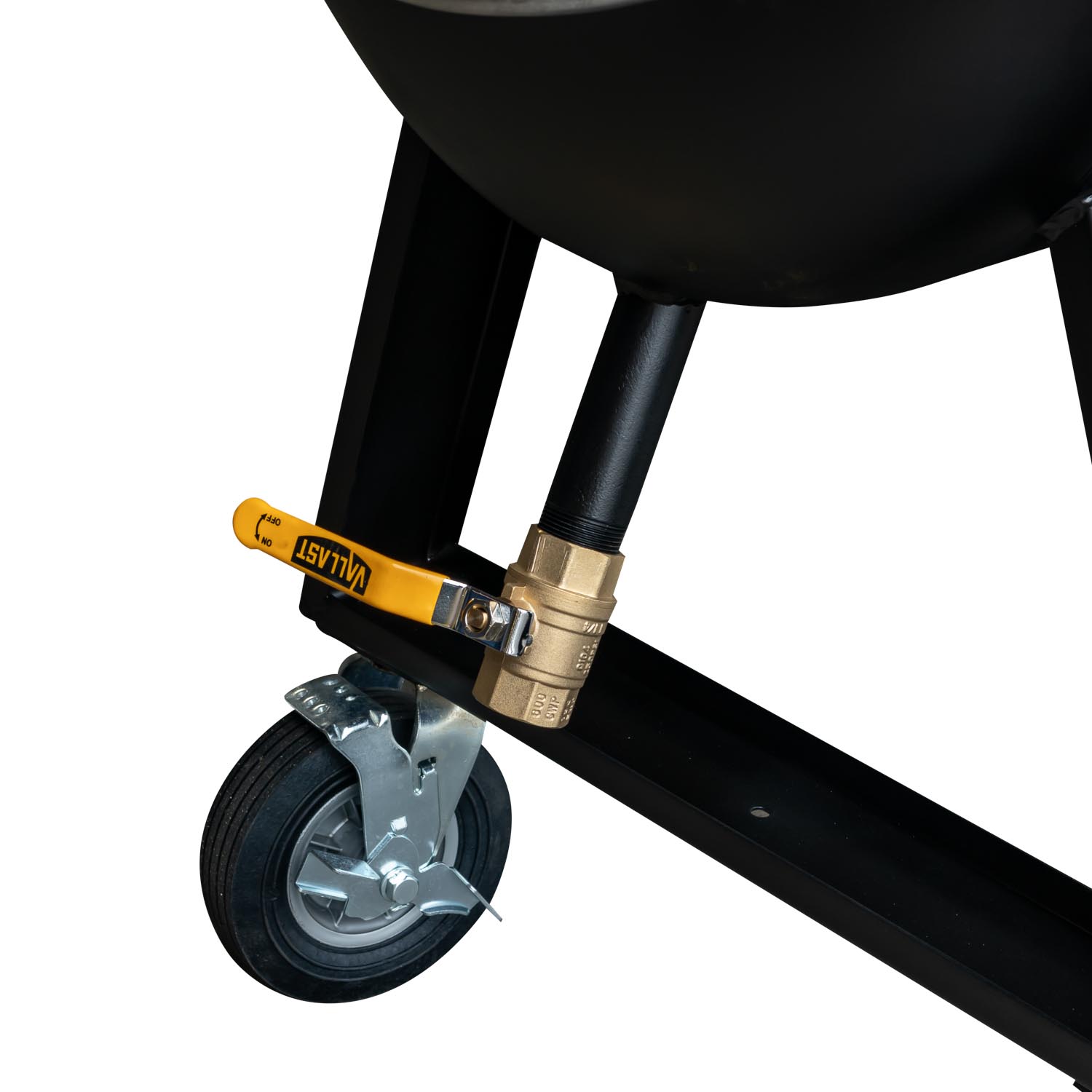

Drain with ball valve for draining the tank
Stainless steel handles
Door on one side of smoker

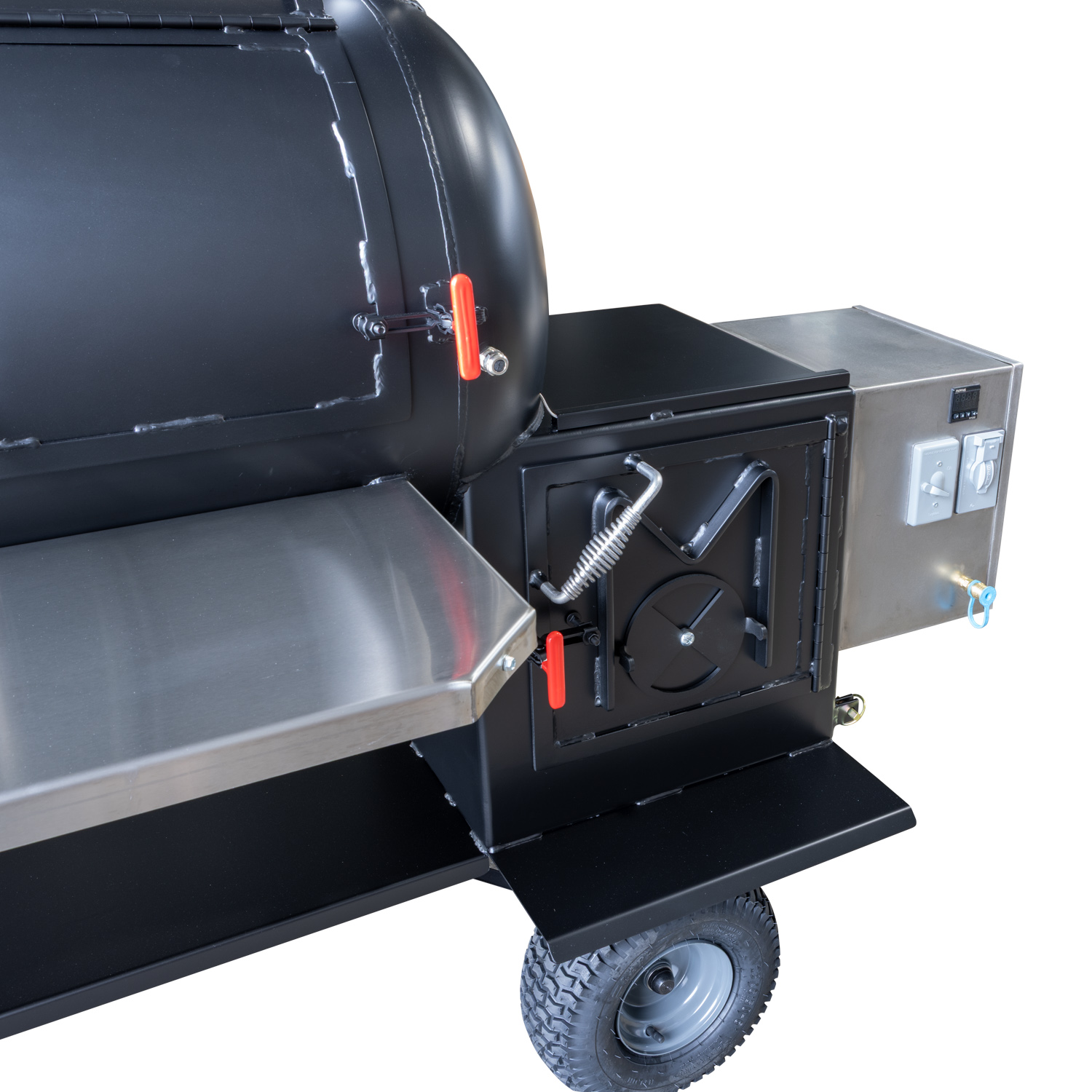

Stay cool handles and firebox door
Exterior work shelf

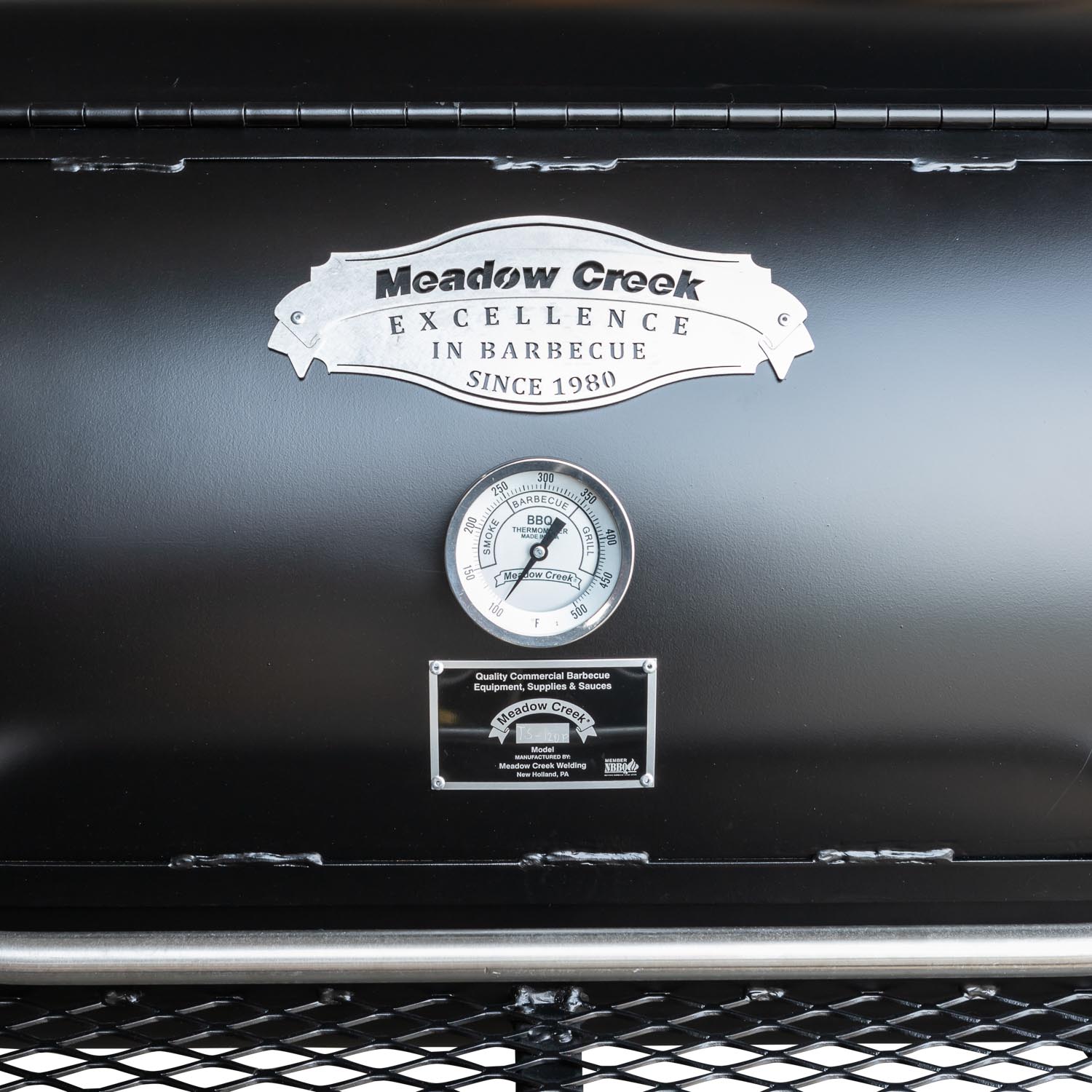

Stainless steel calibratable thermometer
18″ tires
8″ semi-pneumatic casters with brakes
Heat baffles on firebox protect the tires from excessive heat.

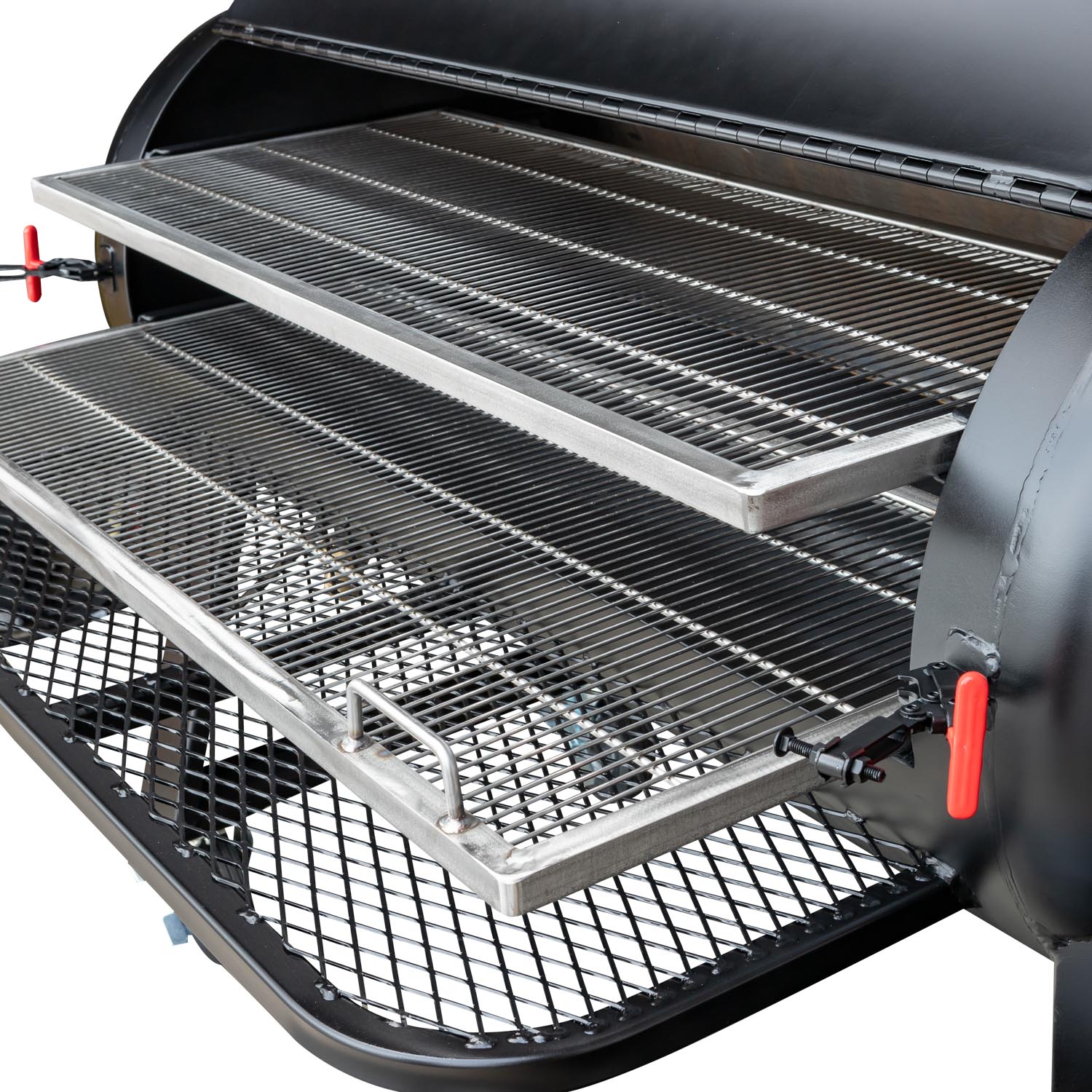

Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.

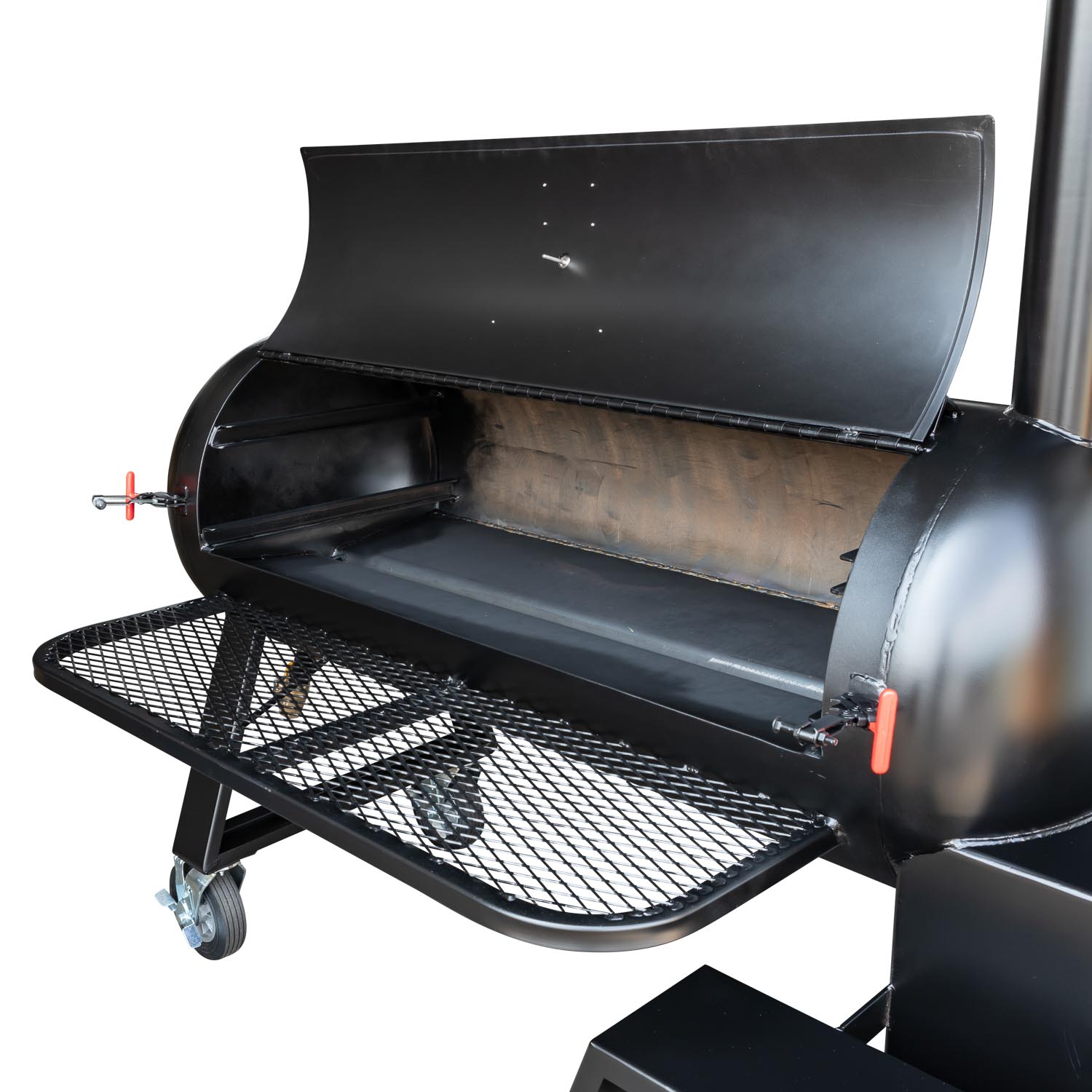

Built-in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
Tank is made of 3/16” plate steel and firebox of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
Additional information
Overall Dimensions
75”h x 90”l x 46”w
Cooking Area
14.29 sq. ft. (2,058 sq. in.)
Top Grate Dimensions
20” x 49”
Space Above Top Grate
4.25”
Bottom Grate Dimensions
22” x 49”
Space Between Grates
6.5”
Grate Style
Wire Grid With 1/2” Spacing
Tank Dimensions
24” x 68” (120-gallon)
Metal Thickness on Tank
0.1875”
Fire Box Dimensions
20.5” Cube (Inside: 20” x 20” x 15”)
Metal Thickness on Fire Box
0.25”
Optional Warming Box Dimensions
12” x 18” (Inside)
Warming Box Grate Dimensions
11.5” x 17.5”
Space Between Grates in Warming Box
8.5”
Net Weight
830 lbs.
Shipping Weight
1,225 lbs.
Shipping Dimensions
105"l x 64"w x 85"h
Capacity of Pork Butts
21-22
Capacity of Baby Back Ribs
15-18
Capacity of Spare Ribs
12-14
Capacity of Whole Briskets
13-14
Capacity of Whole Chickens
30-31
Capacity of Whole Pigs
100 lbs.
