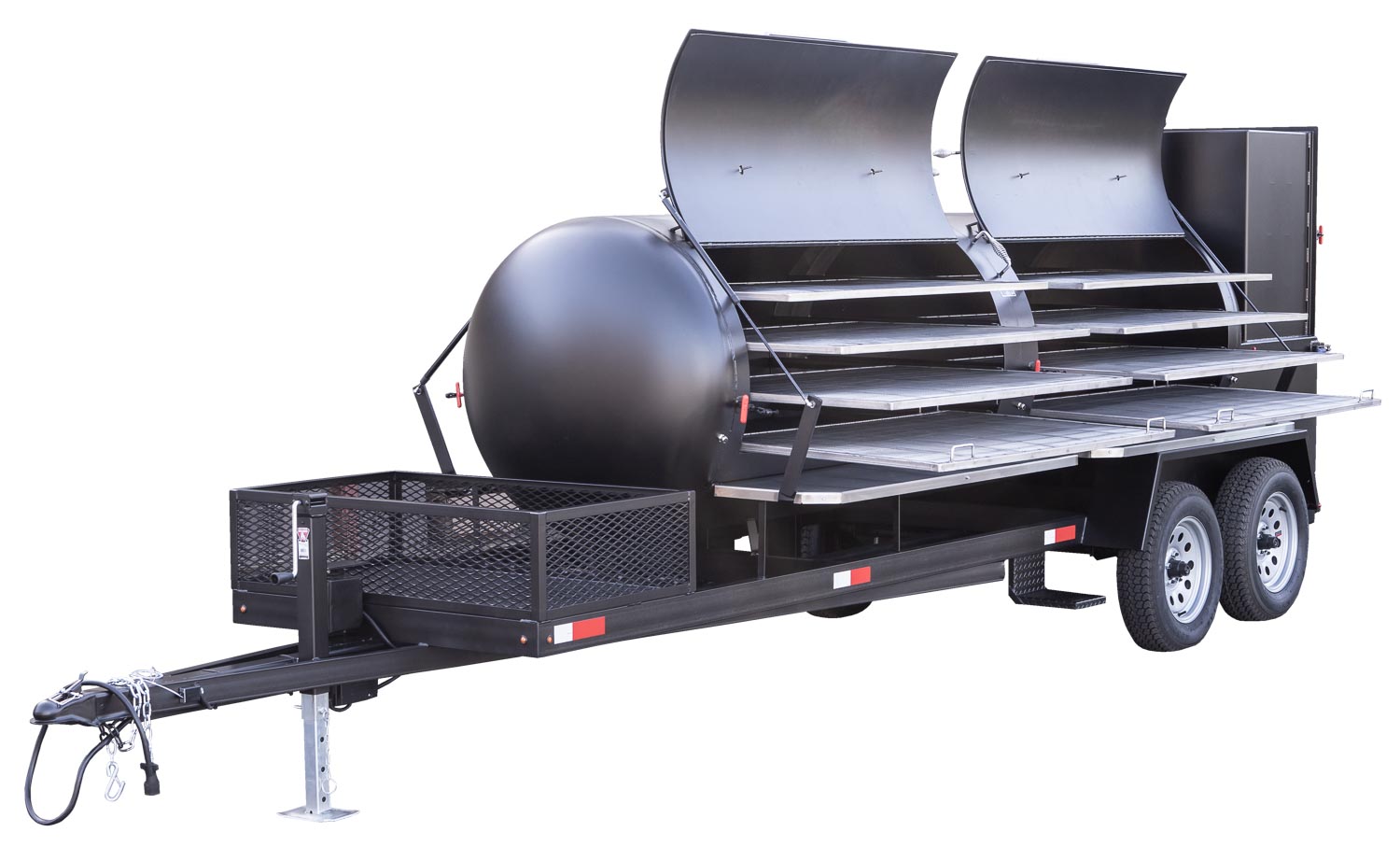

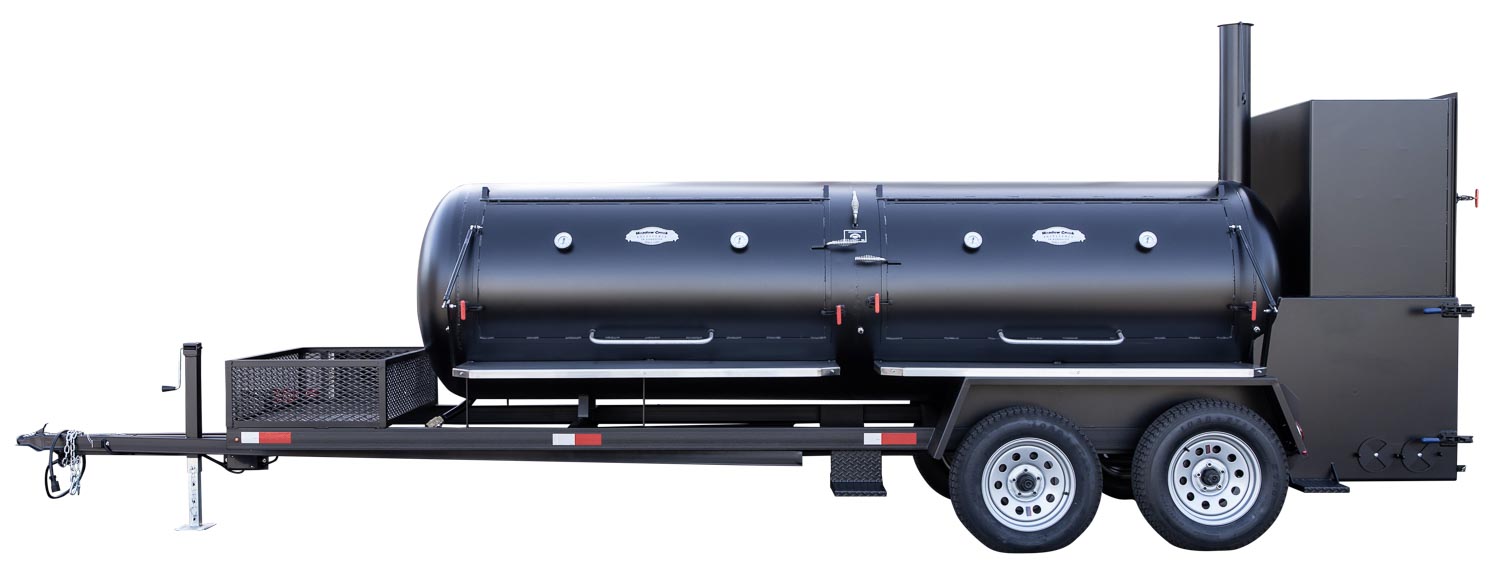

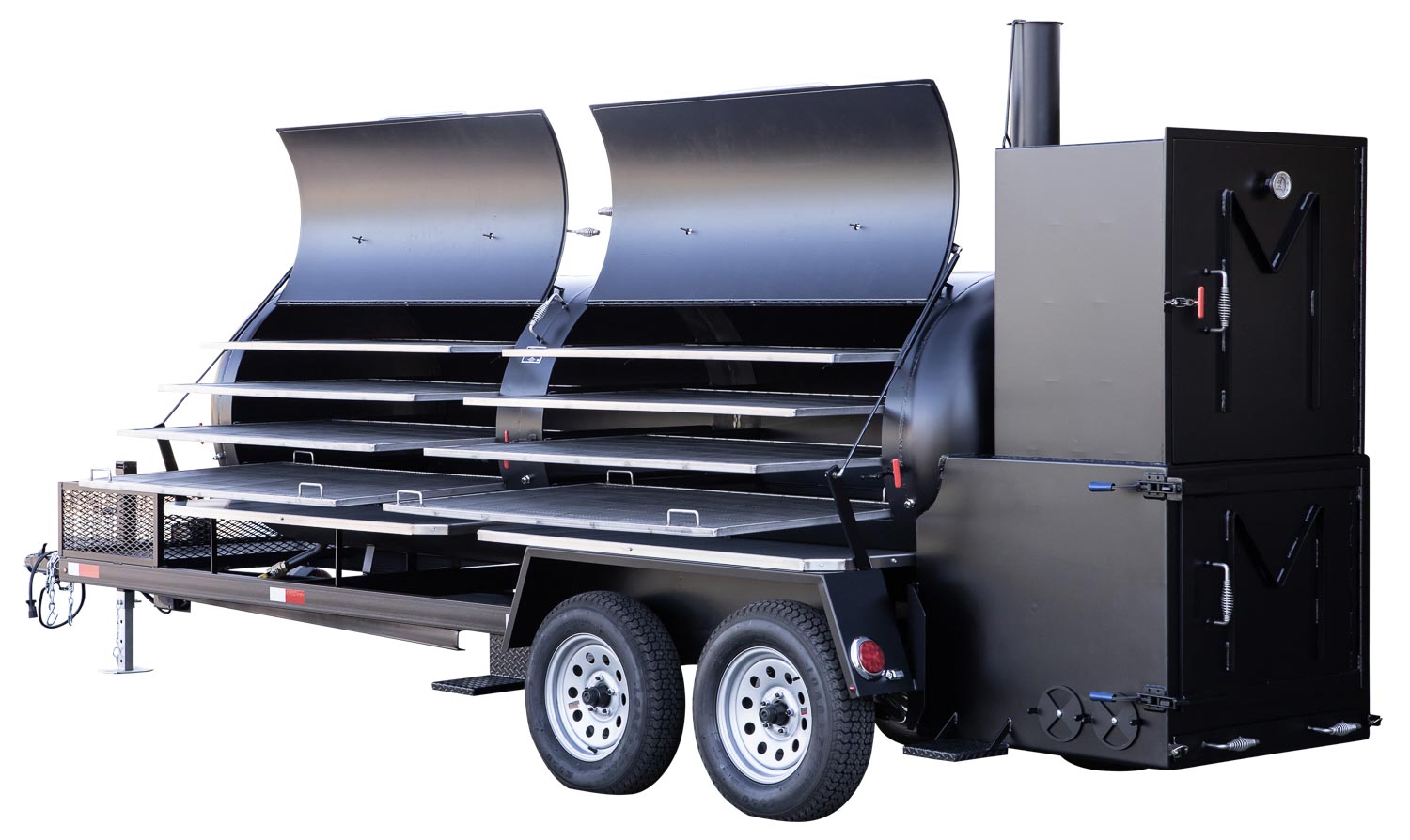

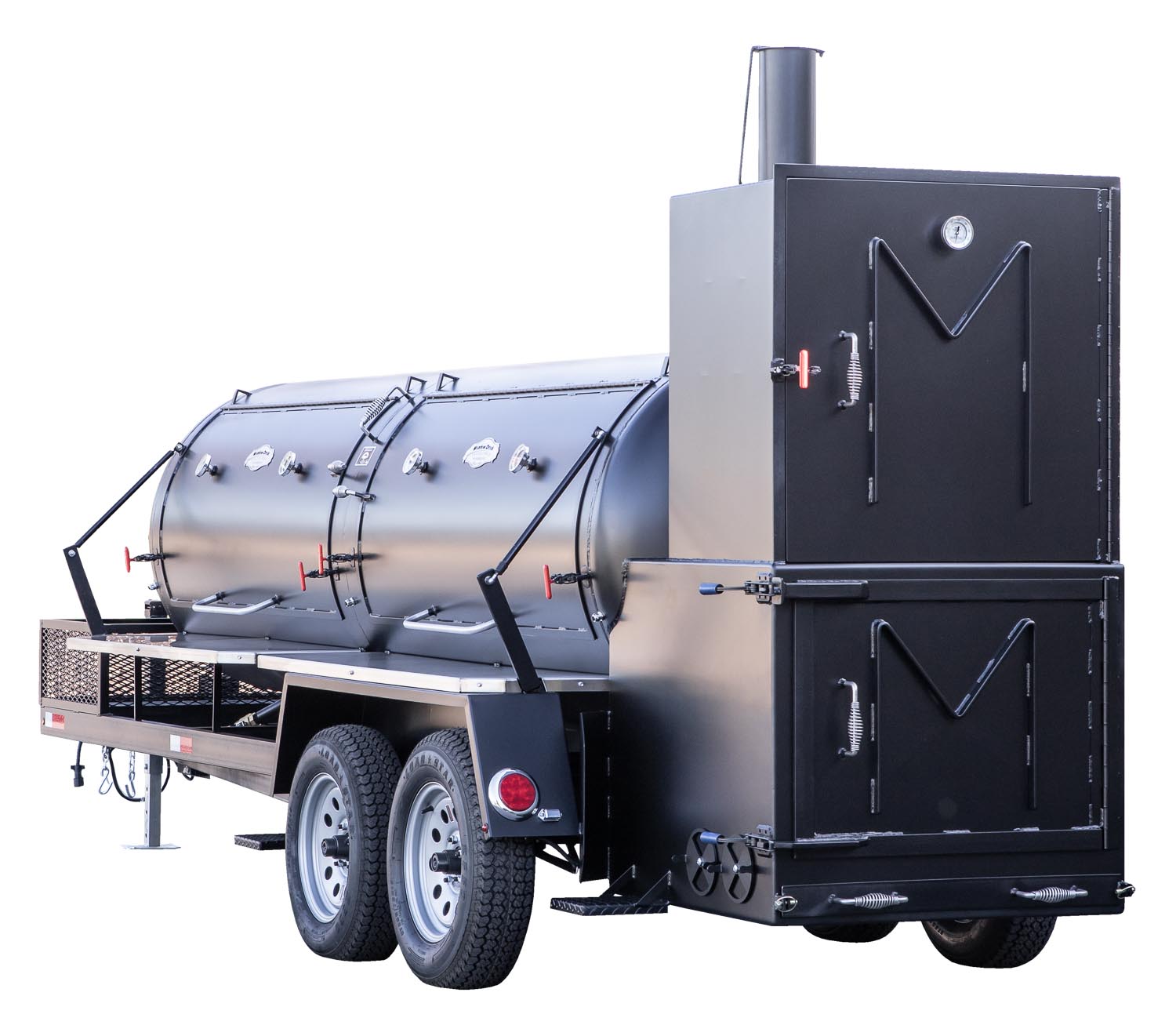

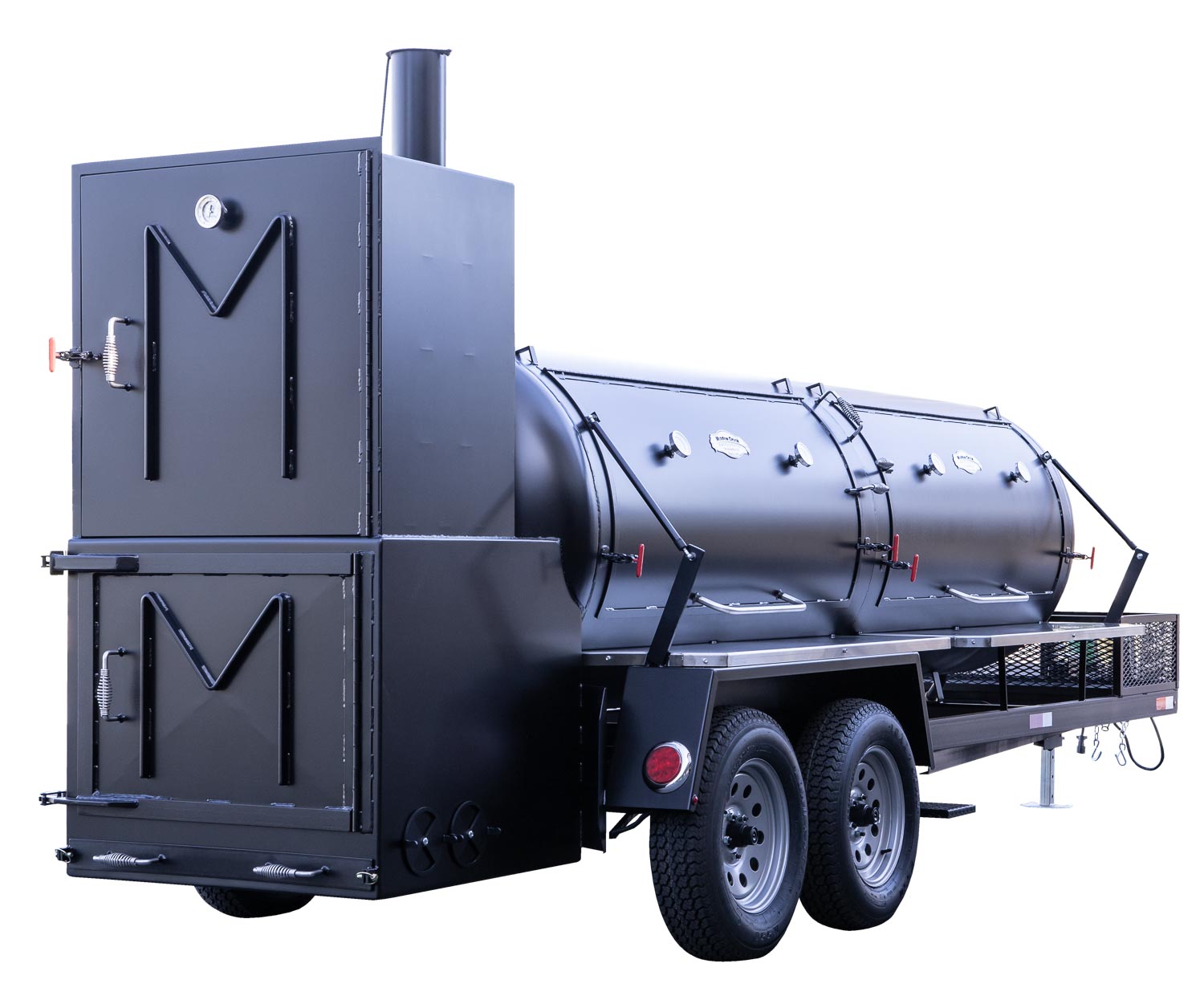

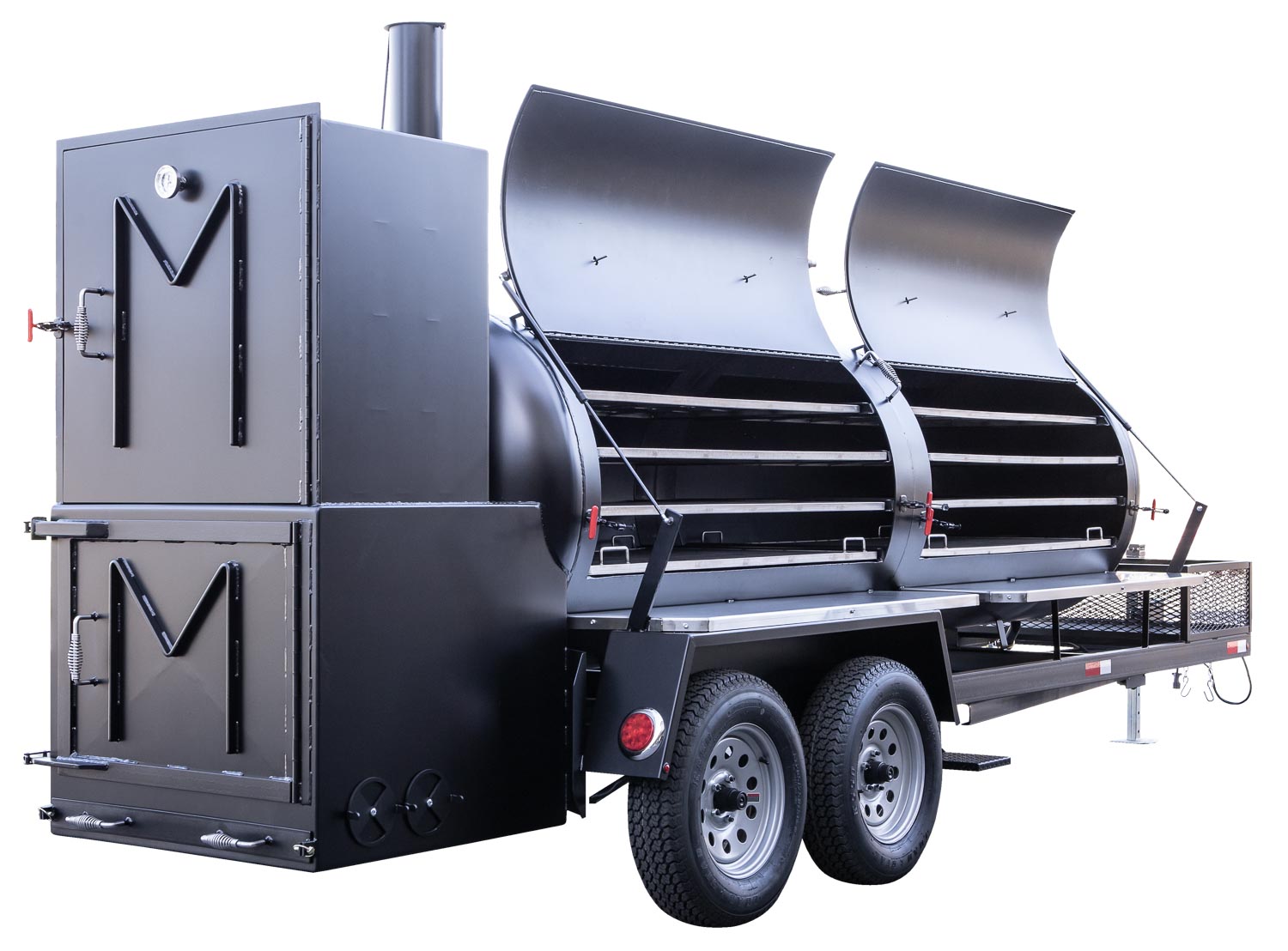

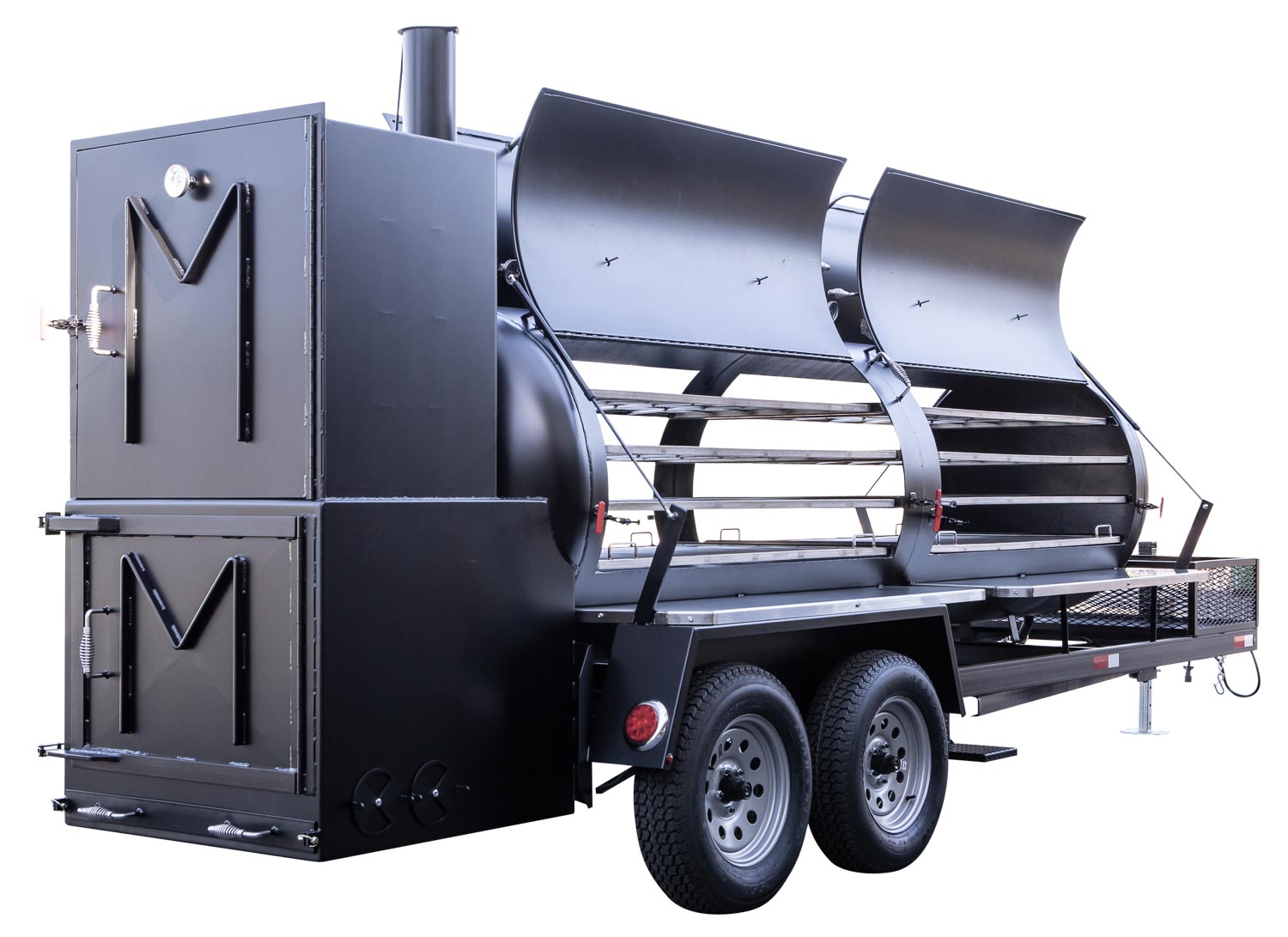

The TS1000 Tank Smoker Trailer is our biggest reverse-flow tank smoker, ready for any crowd you can throw at it. Built to satisfy the demands of large caterers and barbecue restaurants who maxed out the huge TS500, the TS1000 boasts a giant 1,000-gallon tank for more than 2-1/2 times the cooking capacity of the TS500.
Its eight sliding stainless steel grates offer 130 square feet of cooking area, enough space for up to 180 pork butts or 140 briskets! The spacious warming box holds six full-size restaurant pans. The TS1000 provides all the standard features of our TS series, giving you the ease of use and the confidence you need to focus on supplying the best barbecue your crowd has ever tasted.
When it’s time to hit the road, the TS1000’s rugged trailer has the quality, balance, and safety features to give you peace of mind no matter how many miles you need to cover. A four-inch channel frame provides a bullet-proof foundation for this beast of a smoker, the heavy-duty tandem axle with brakes keeps the fifteen-inch highway wheels rolling, and ample LED lighting keeps you visible.
Features of the TS1000 Barbeque Smoker

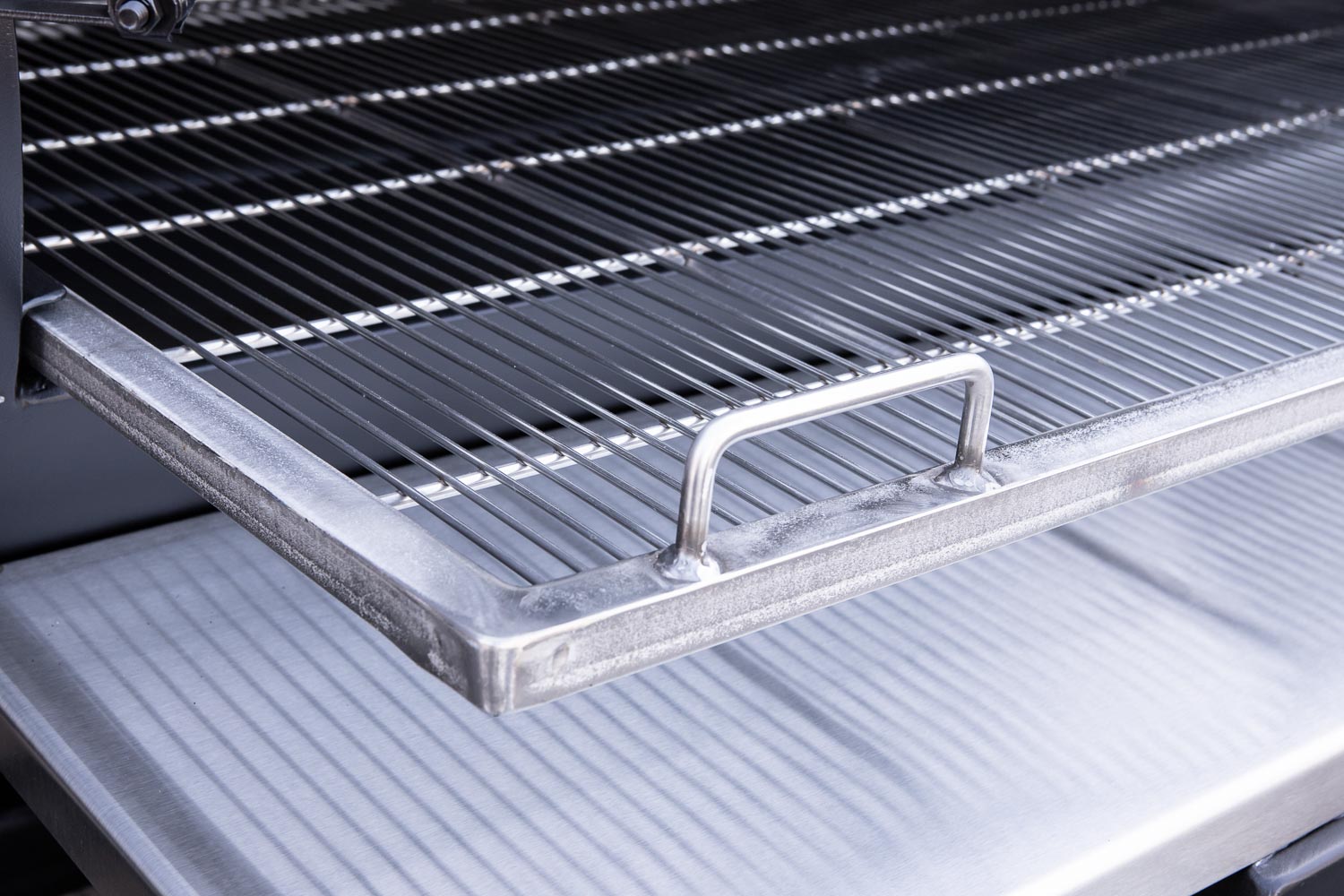

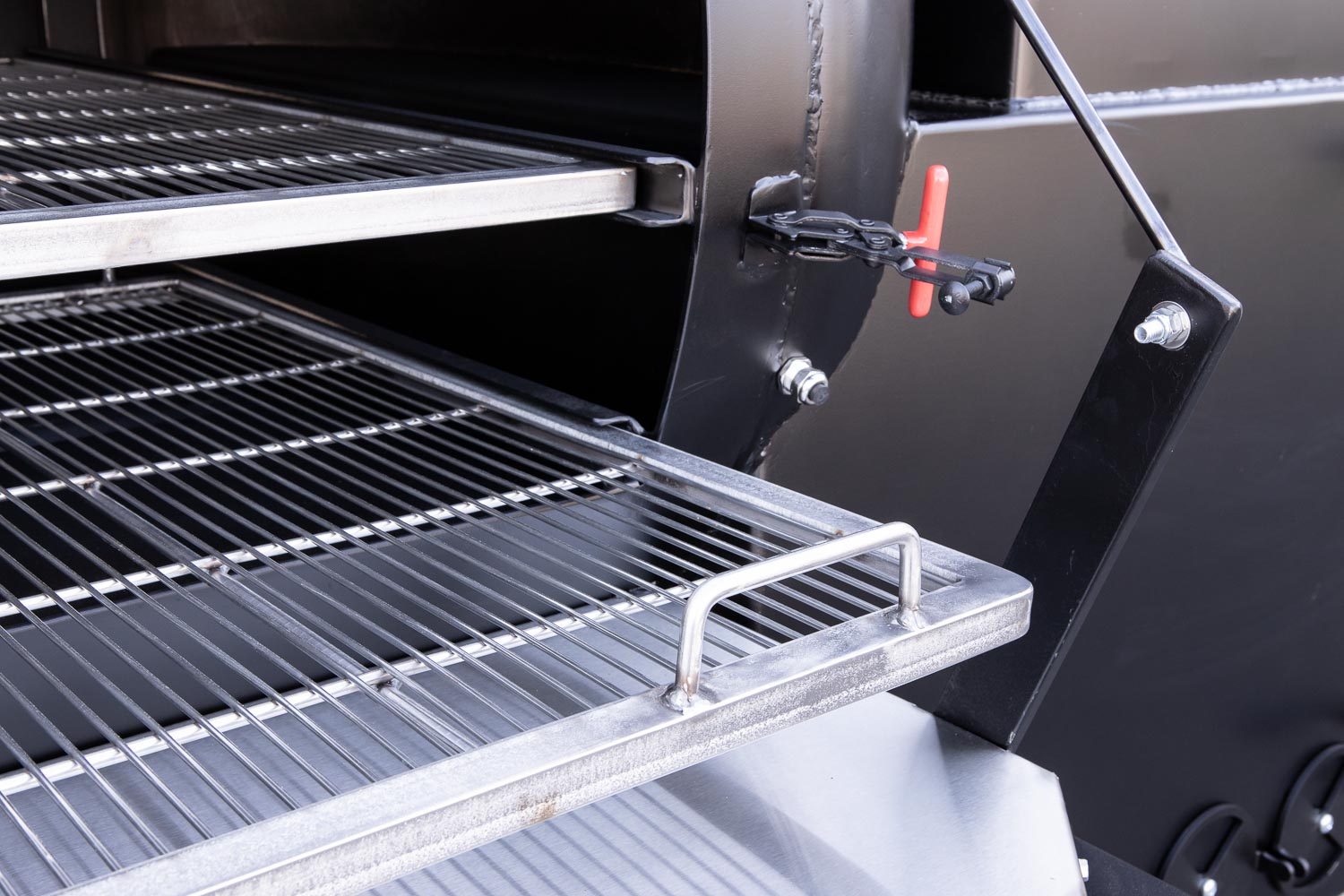

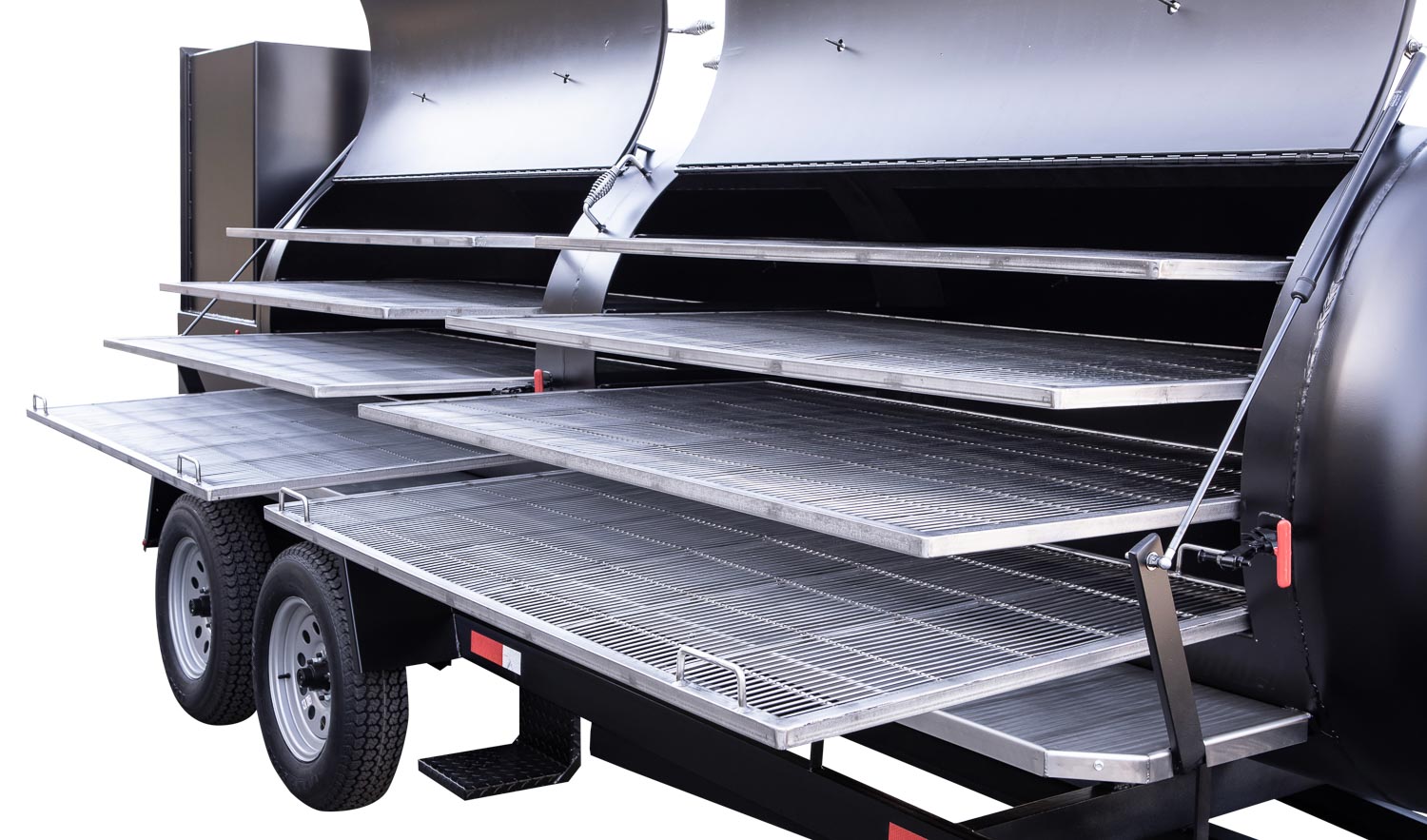

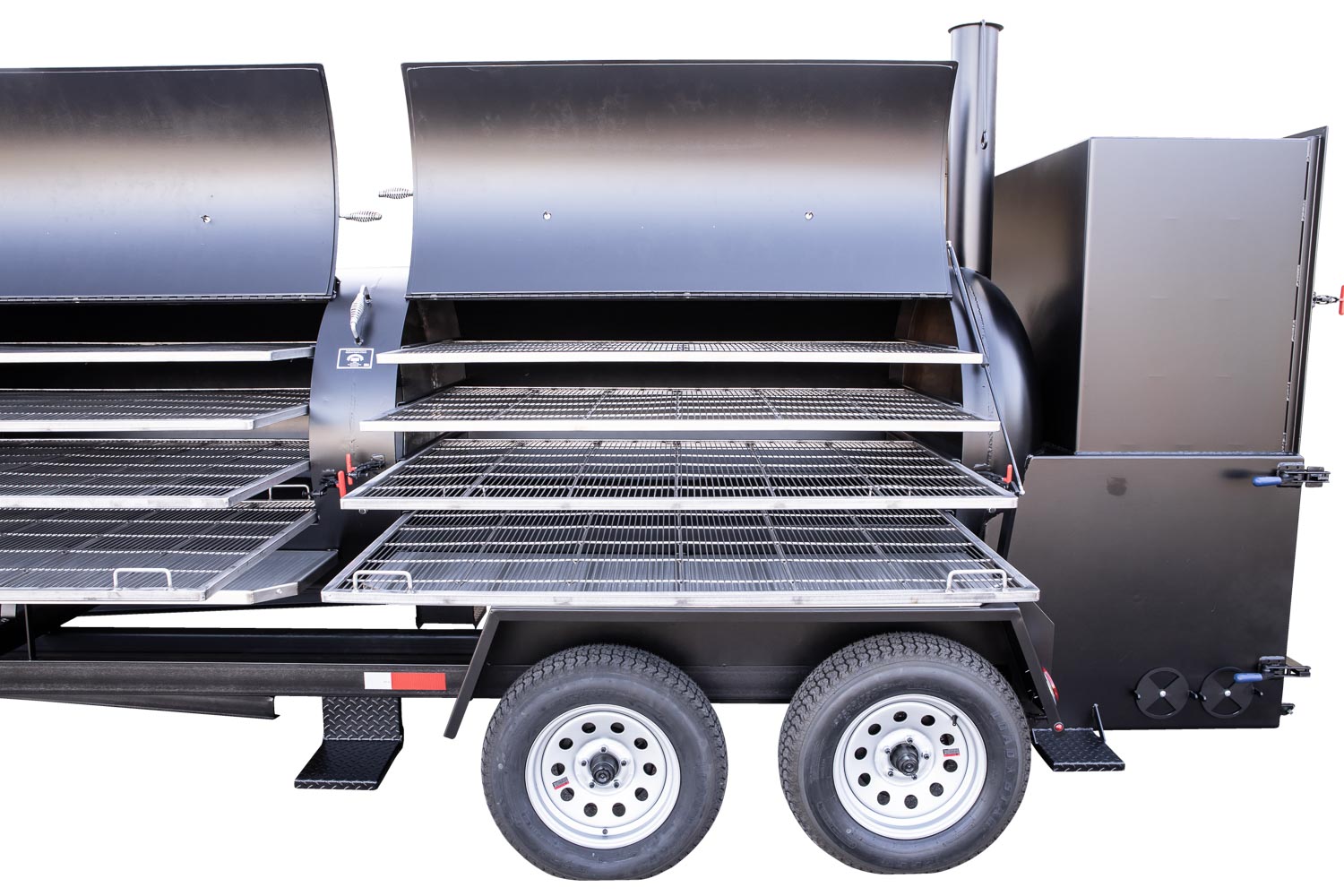

8 Stainless Steel Slide-Out Grates
Reverse-Flow Draft

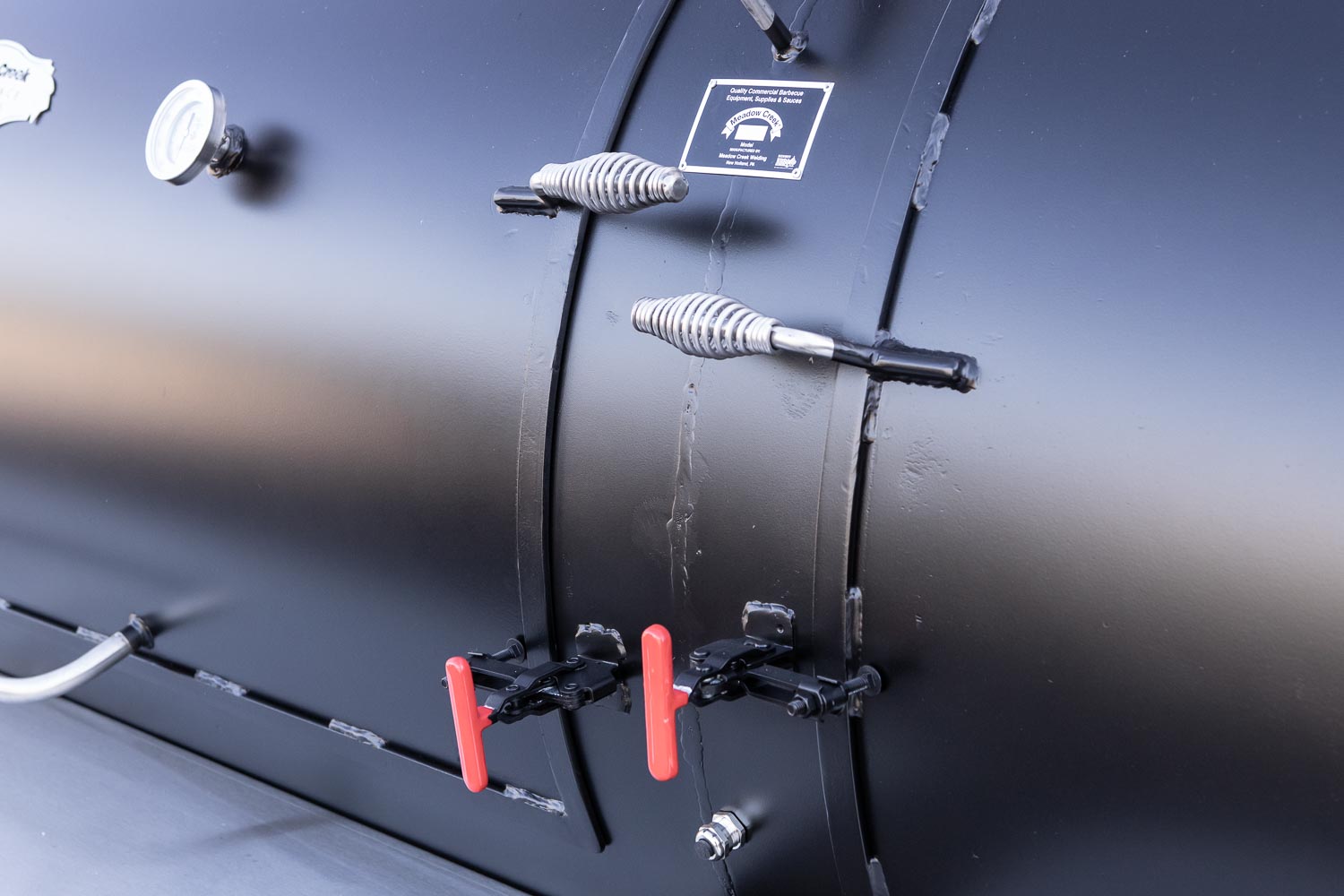

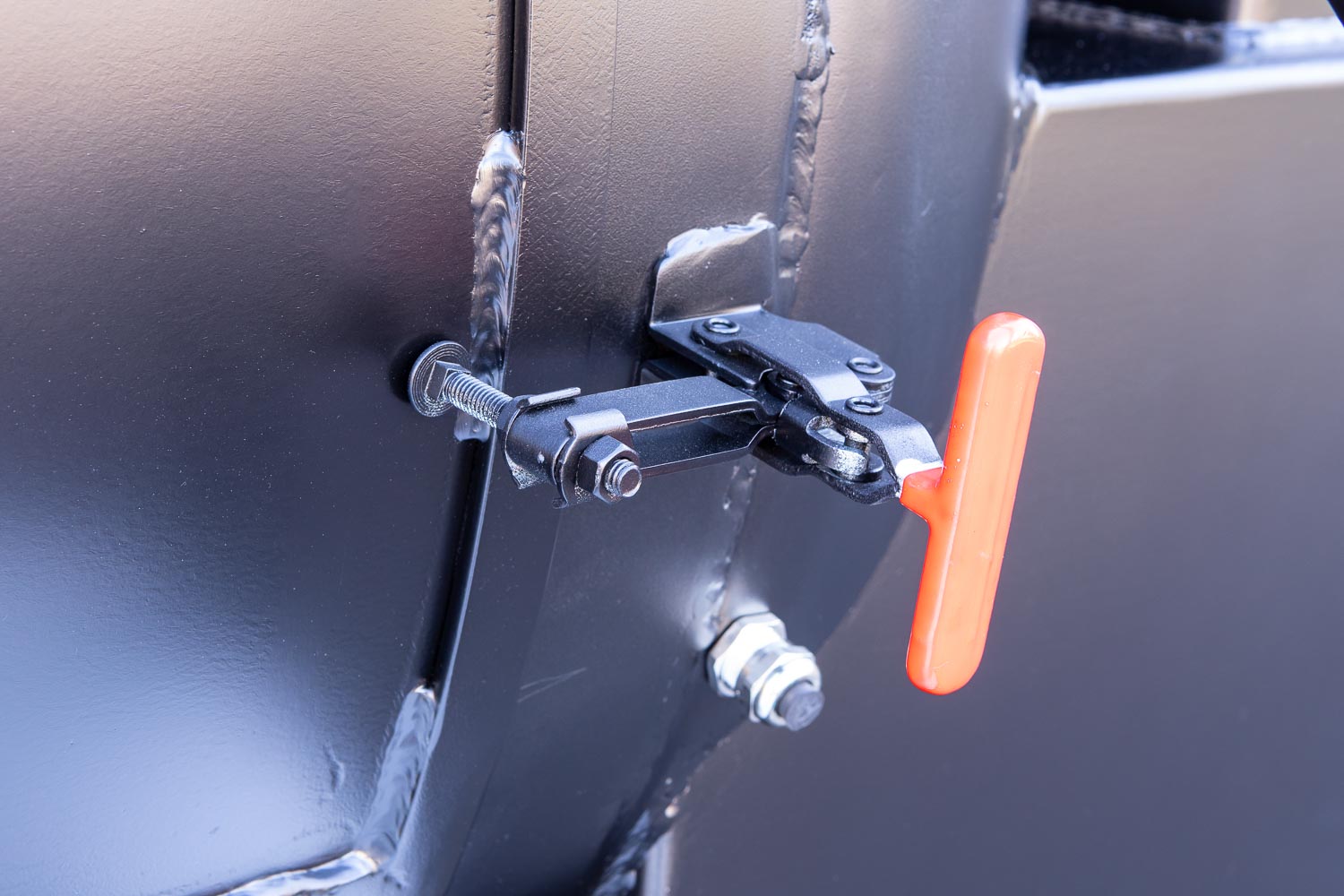

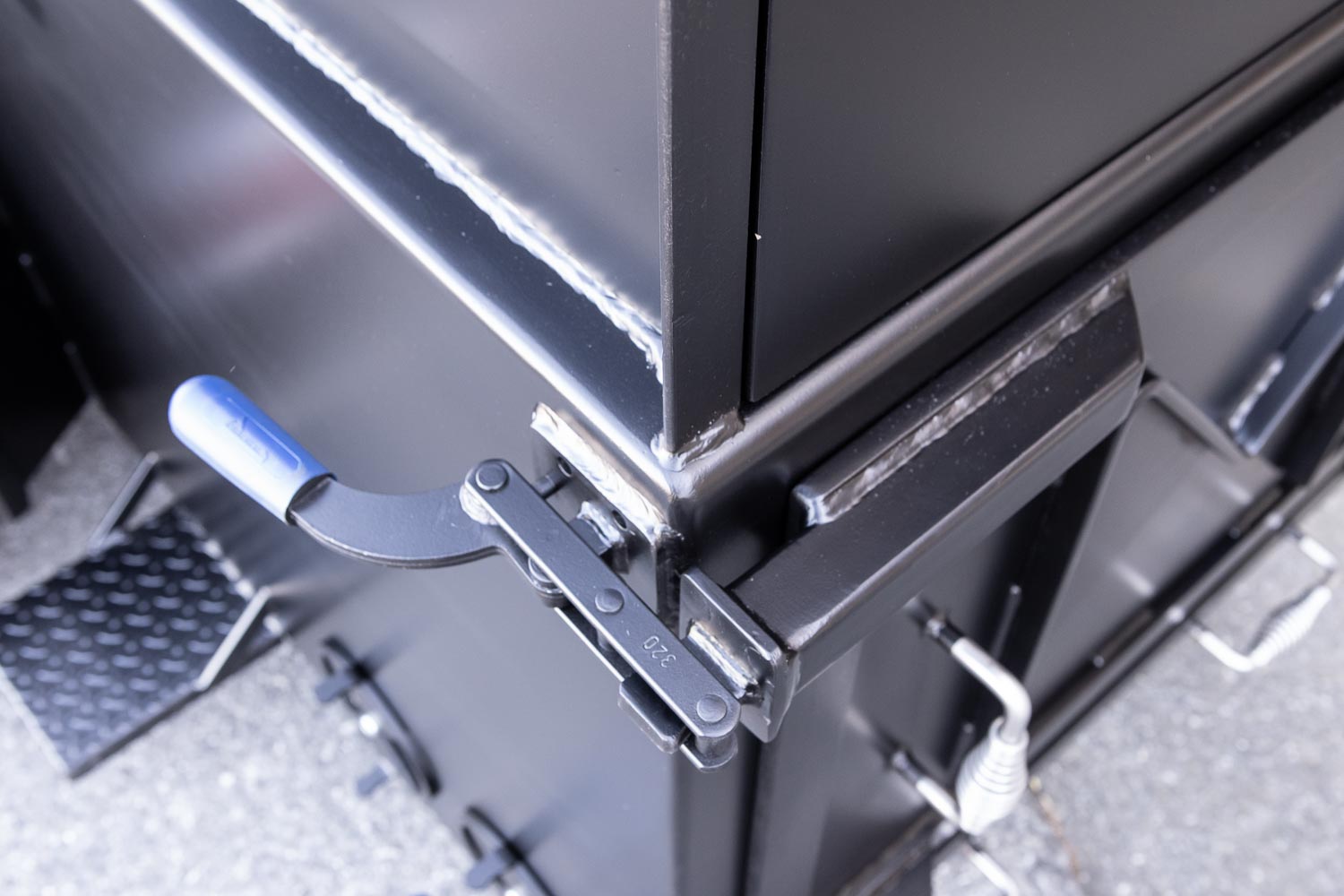

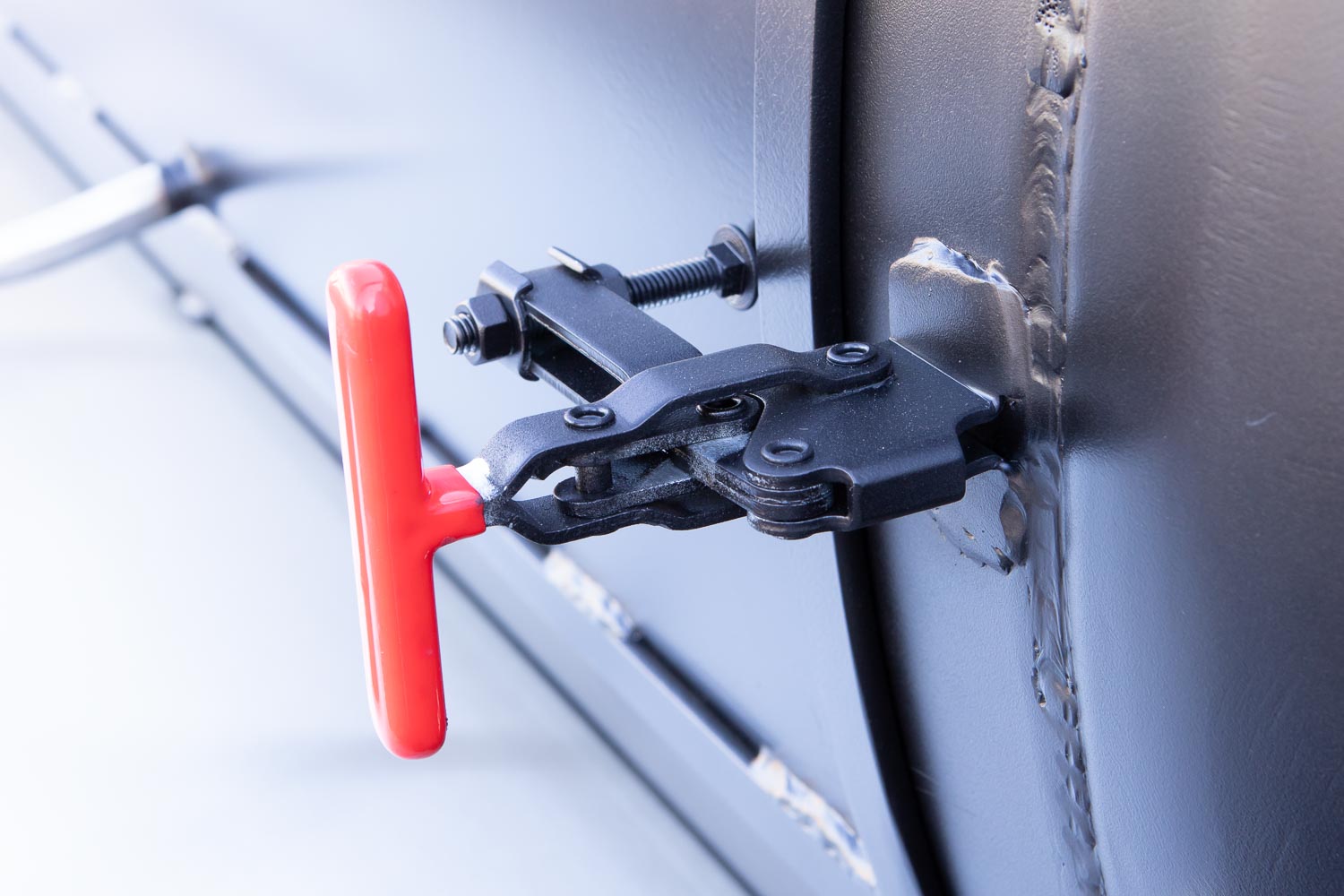

Positive-Lock Latches

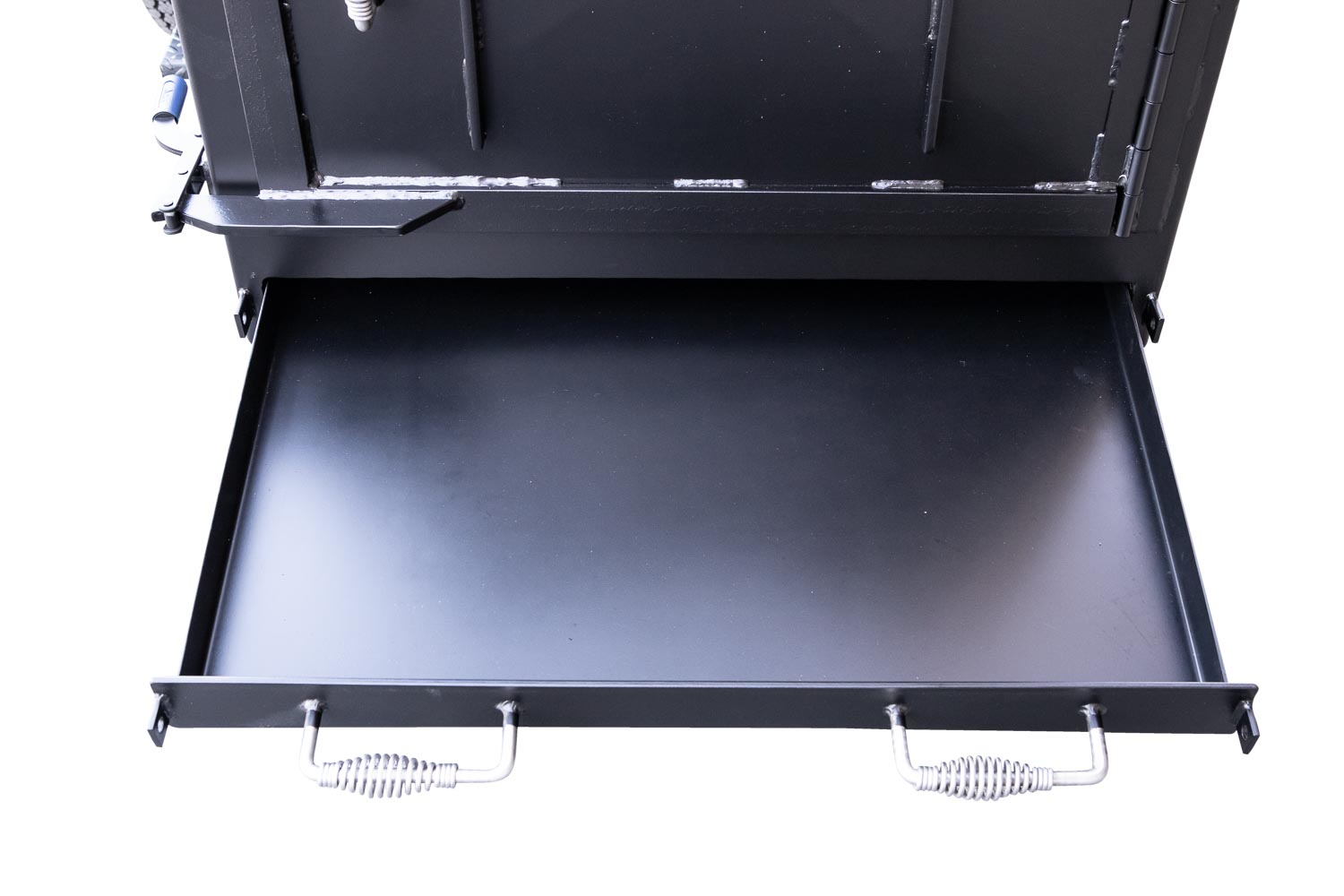

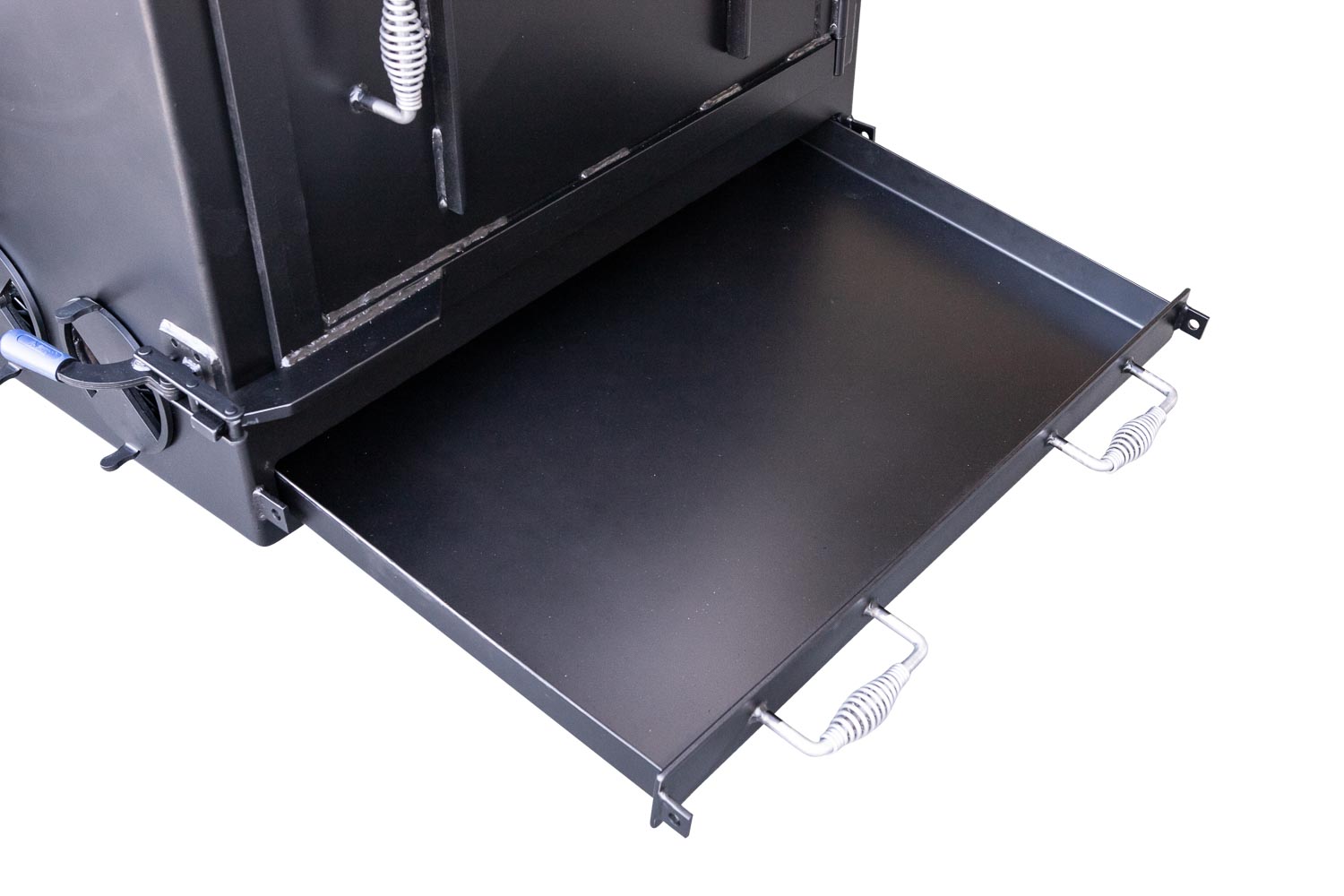

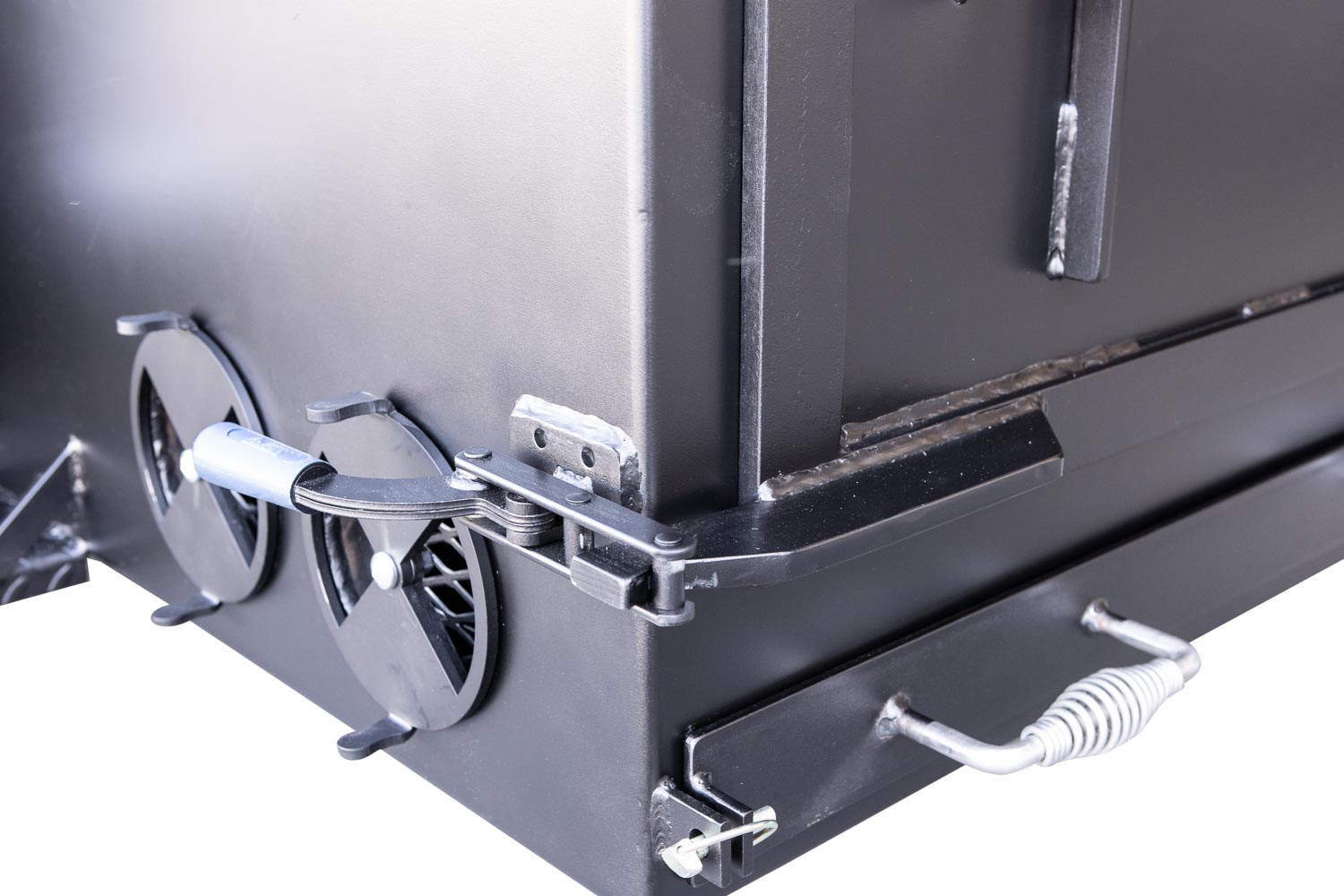

Ash Slide-Out Pan

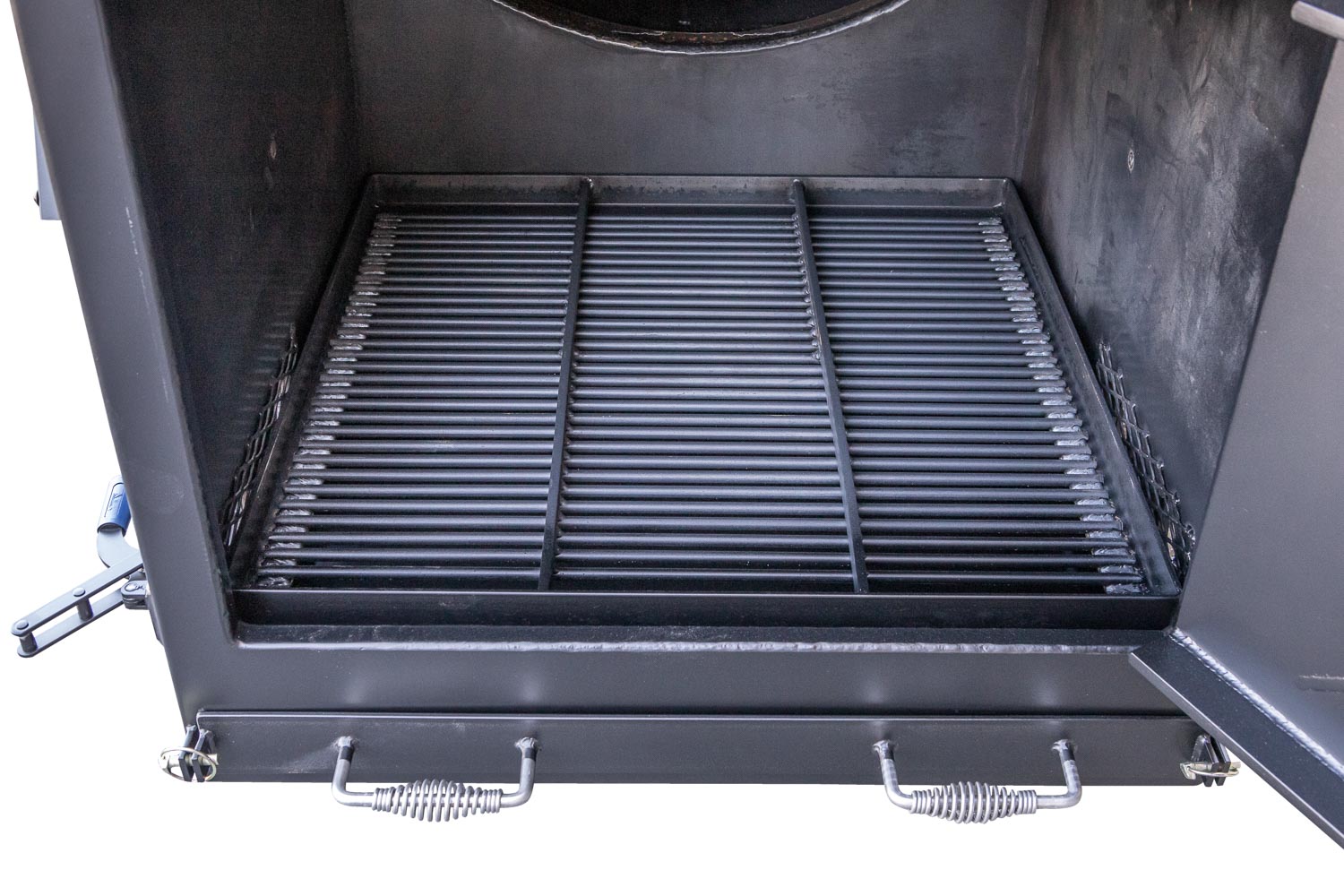

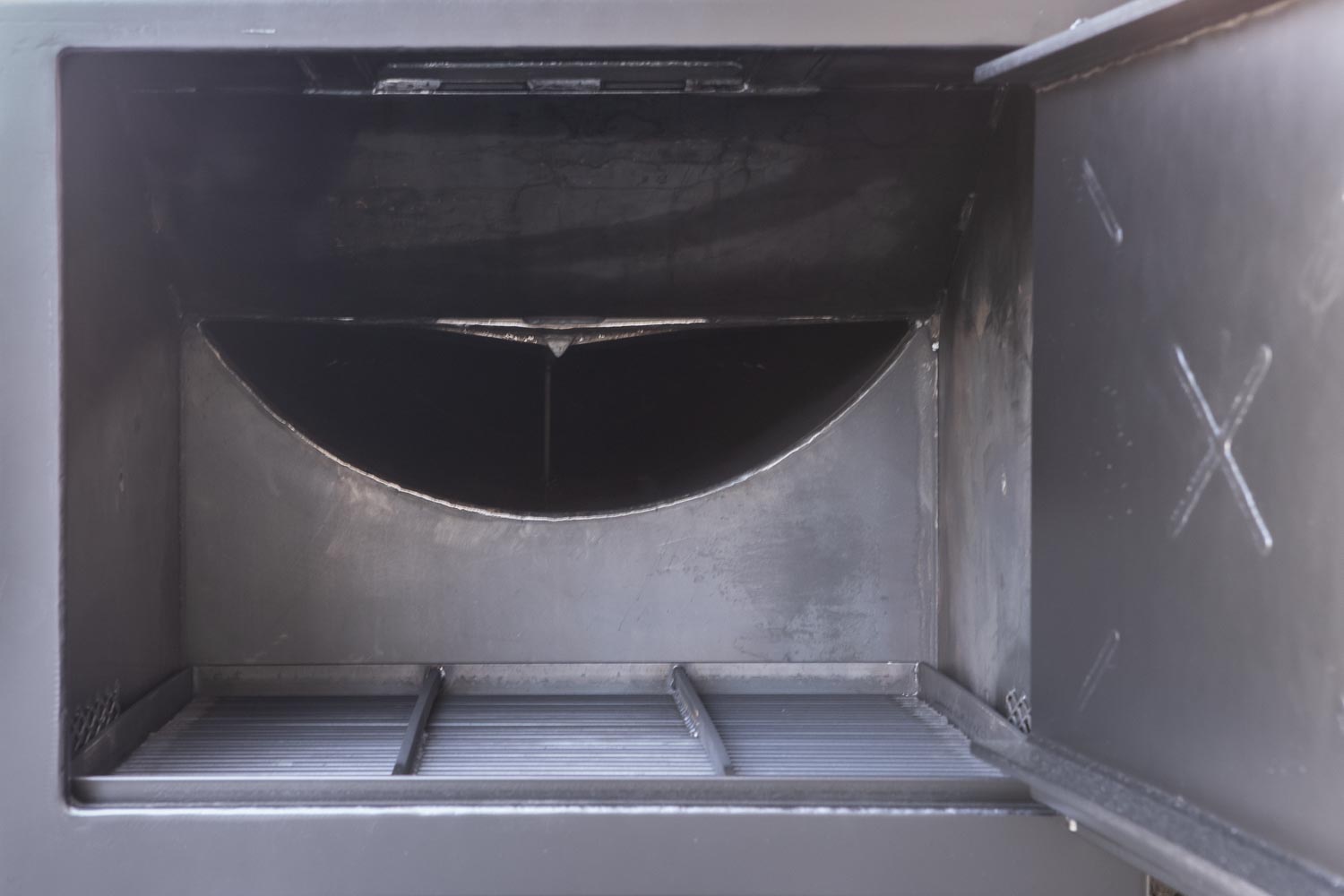

Charcoal Grate in Firebox
Built-In Water Pan
Ball Valve Drain
All Stainless Steel Handles

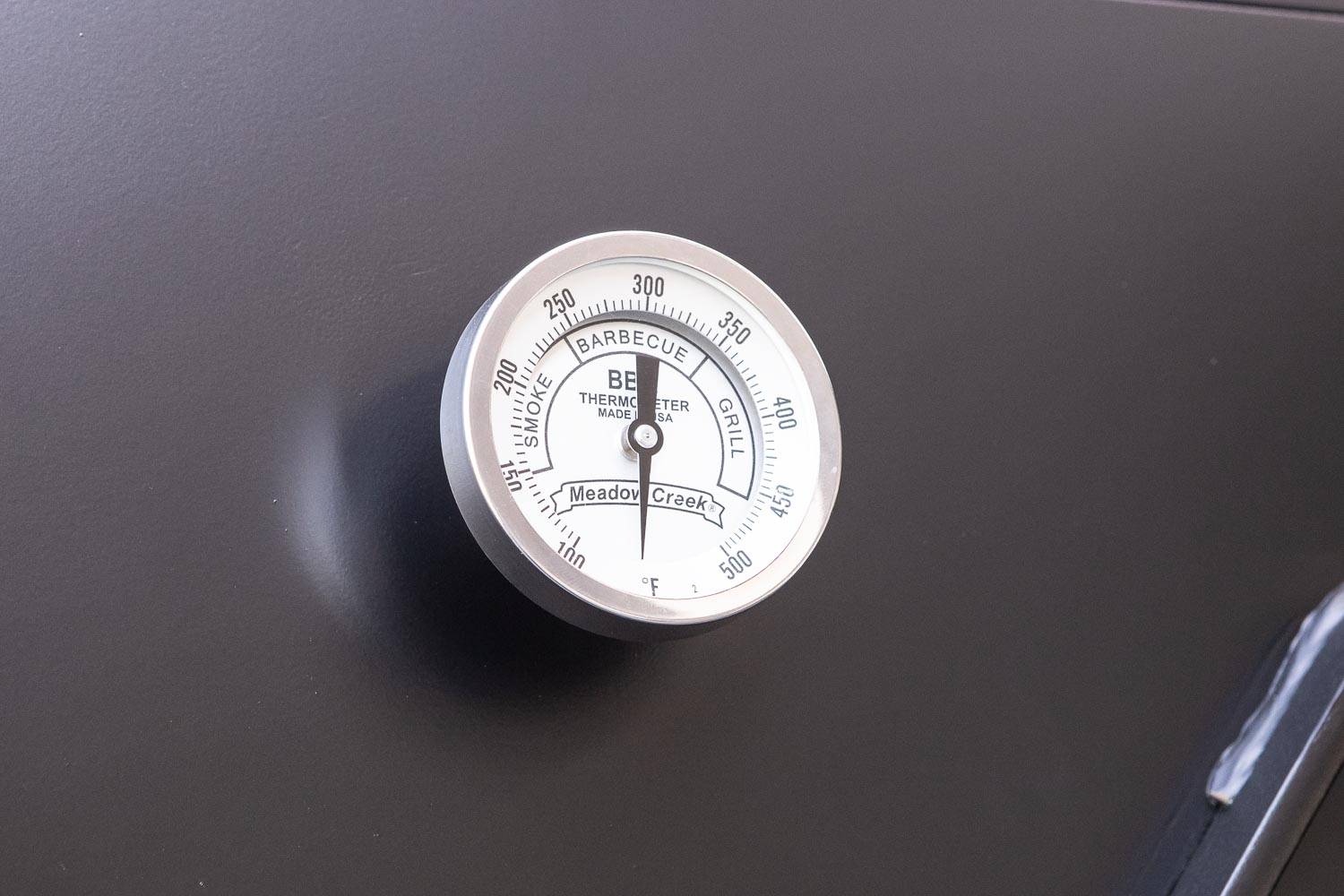

Thermometers on Smoker and Warming Box
4 Expanded Metal Exterior Shelves (2 on Each Side)

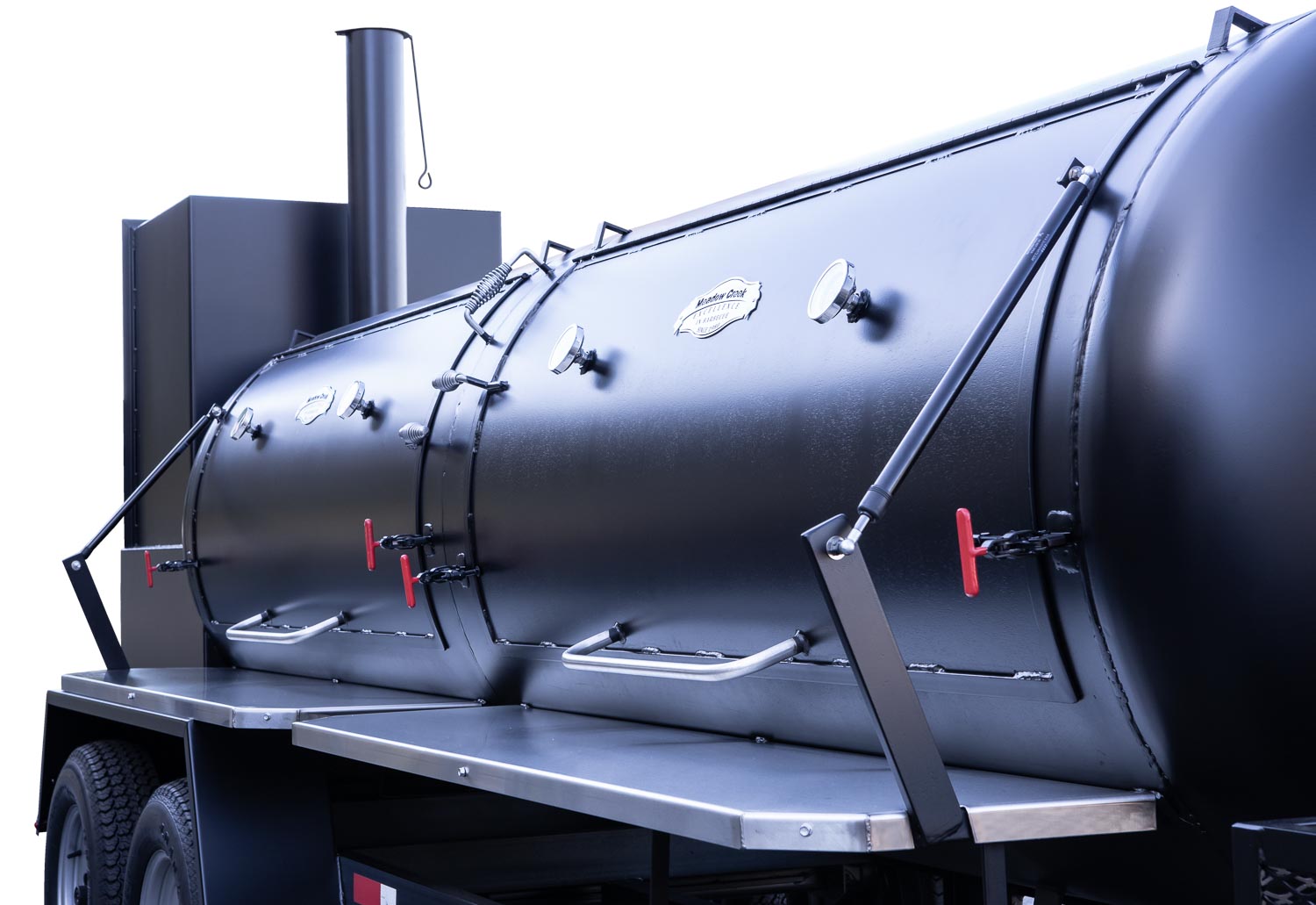

2 Doors on Each Side of Smoker

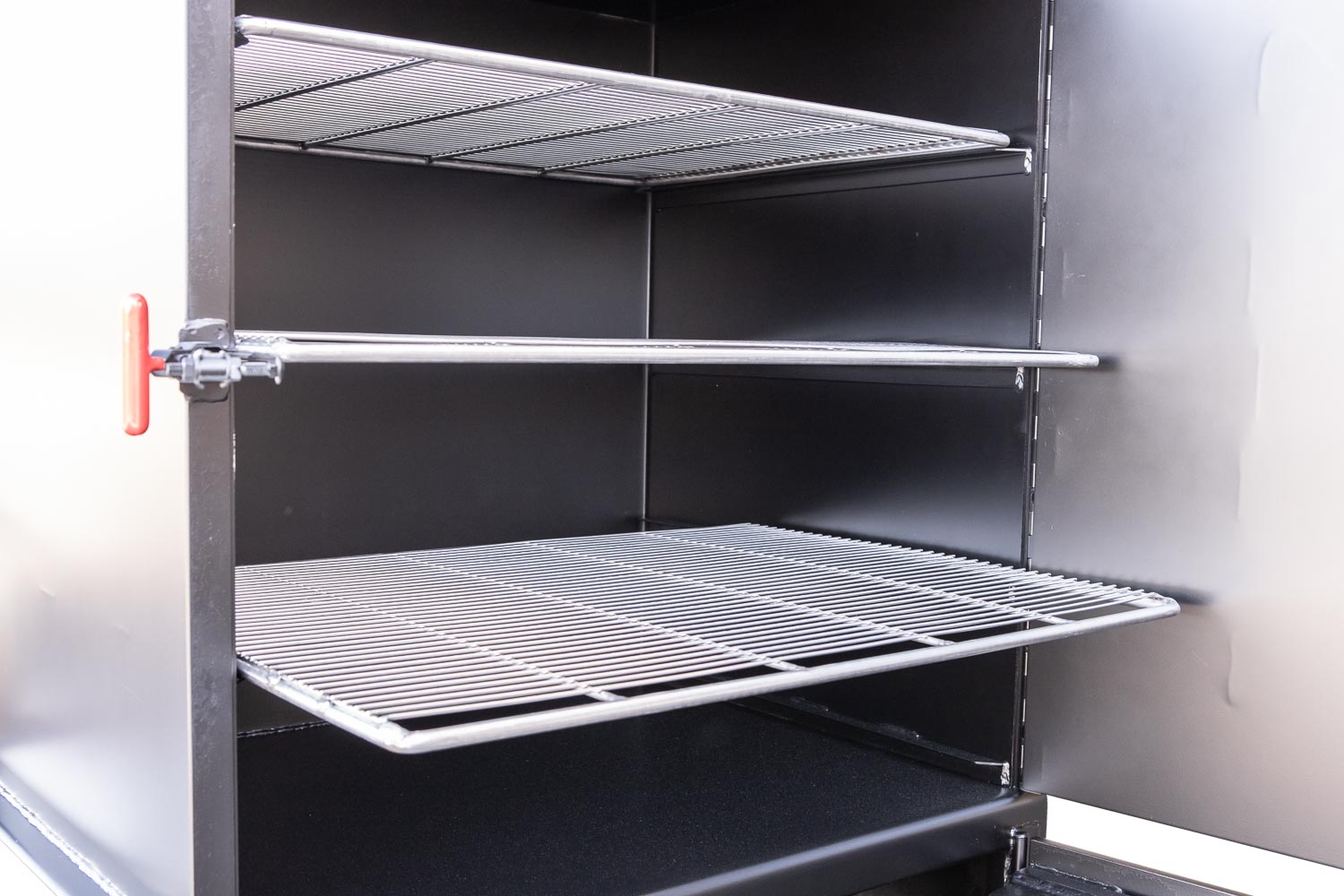

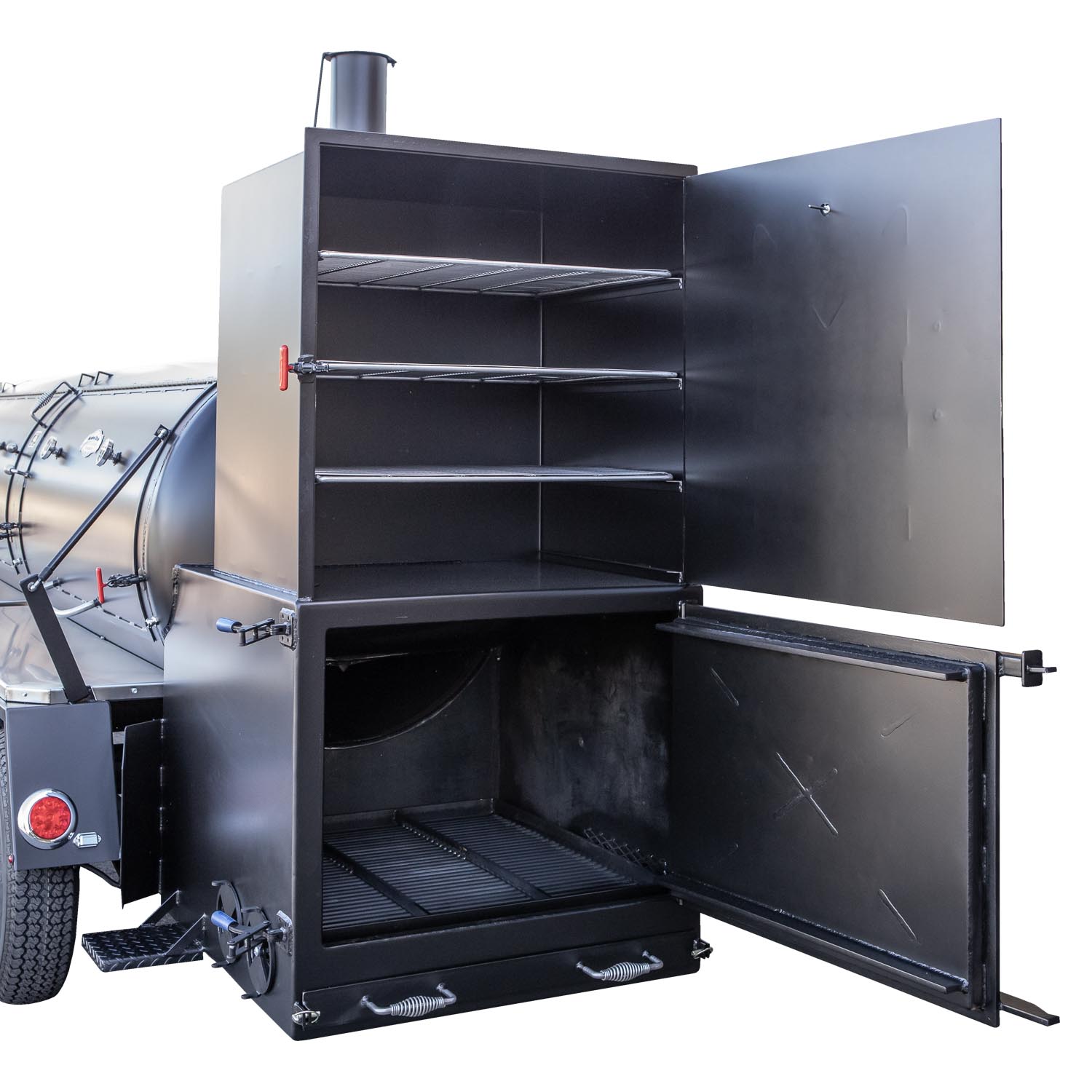

Warming Box With 3 Shelves
4″ Channel Frame Trailer

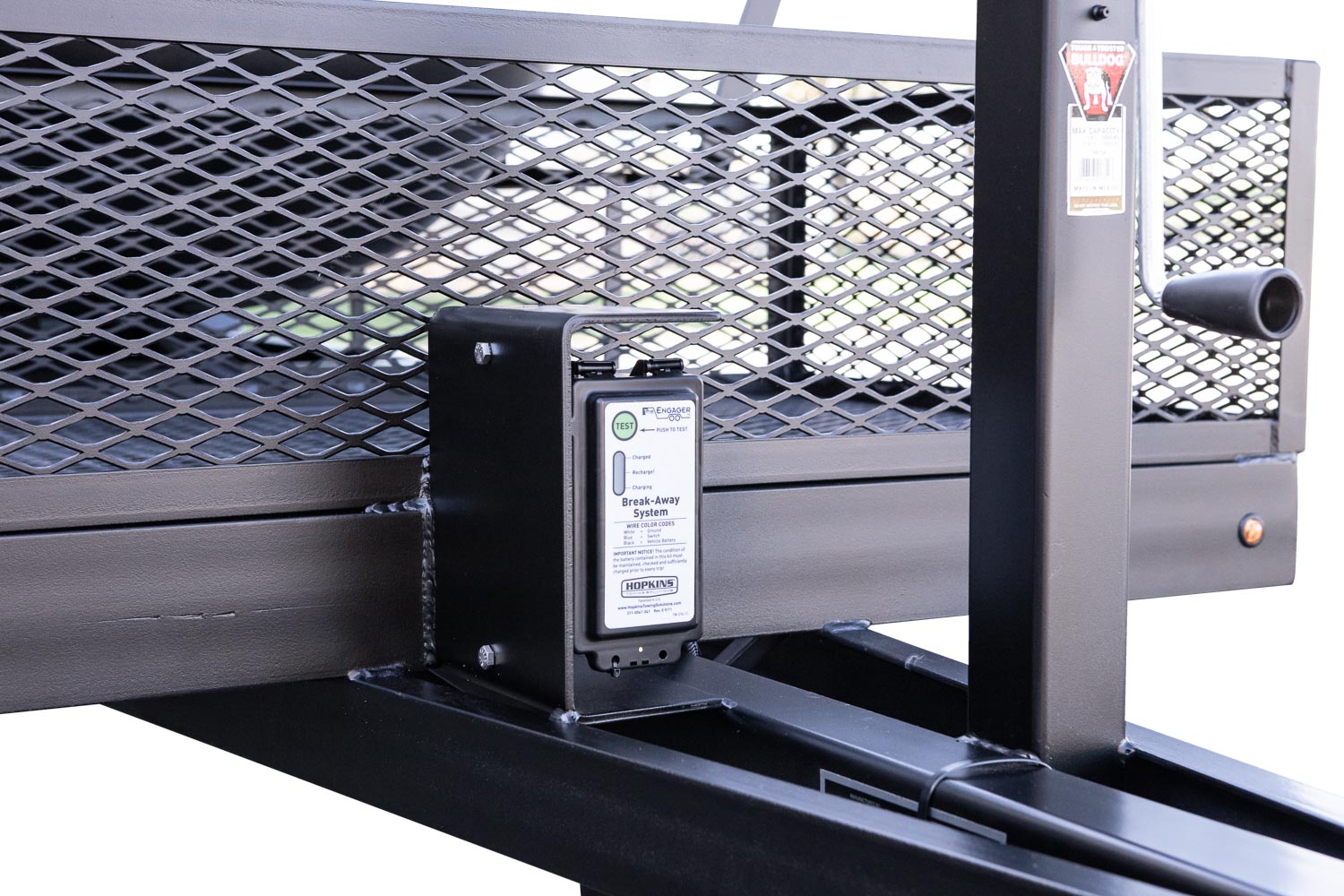

Tandem Axle With Brakes
15″ Highway Wheels

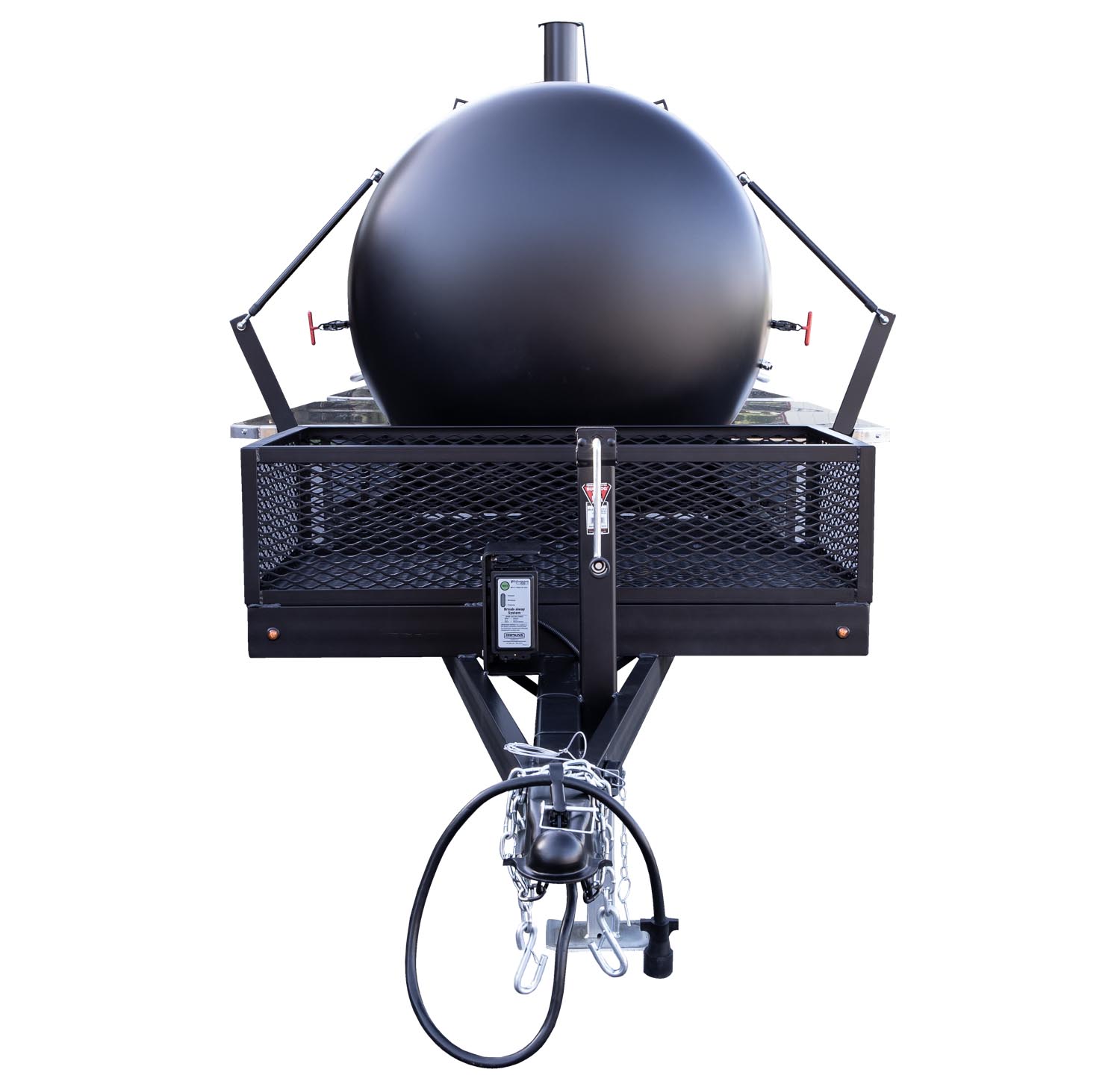

2-5/16″ Ball Hitch
Heavy-Duty Drop Leg Jack
Safety Chains
Rubber Torsion Heavy-Duty Axle
Easy-to-Lube Bearings

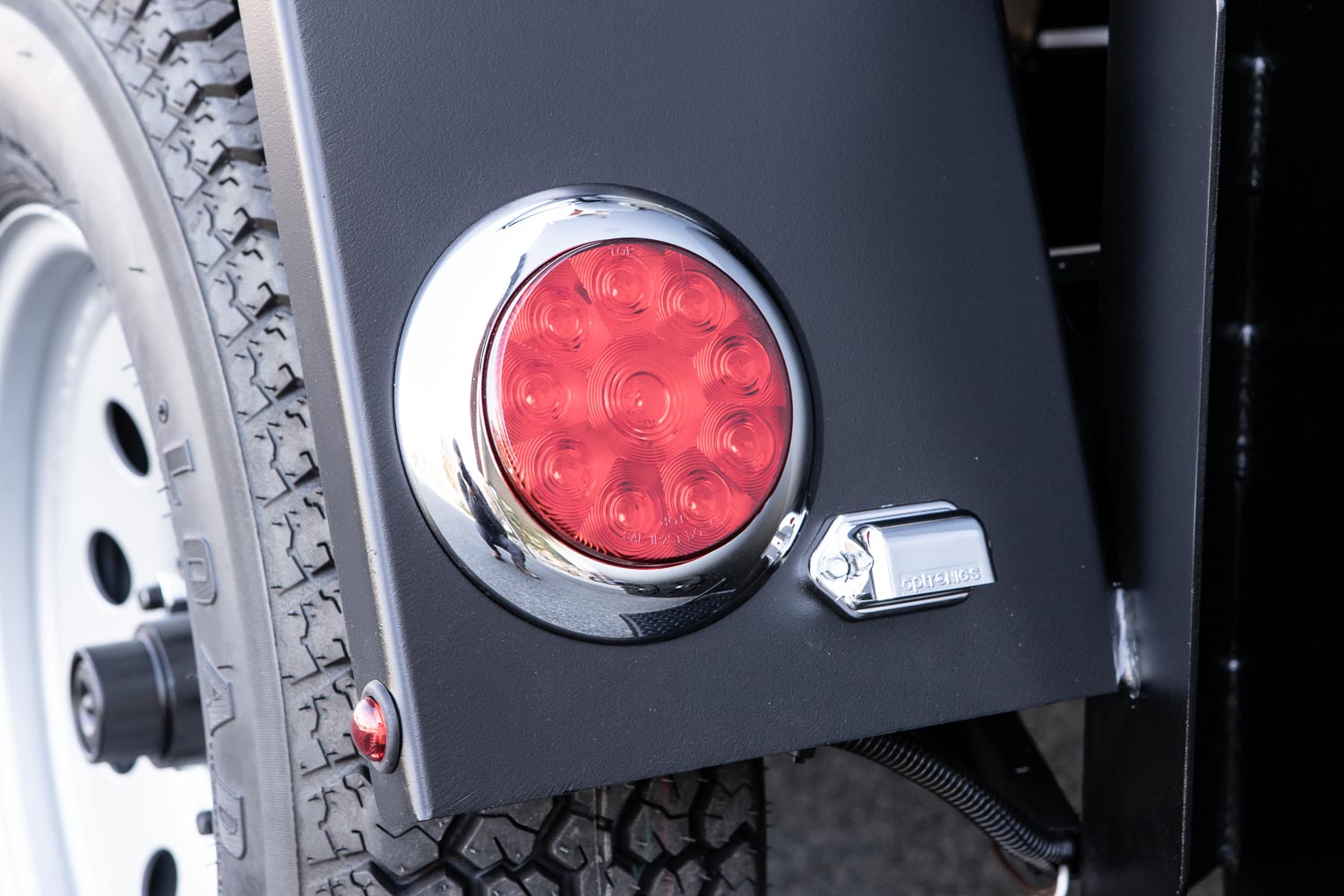

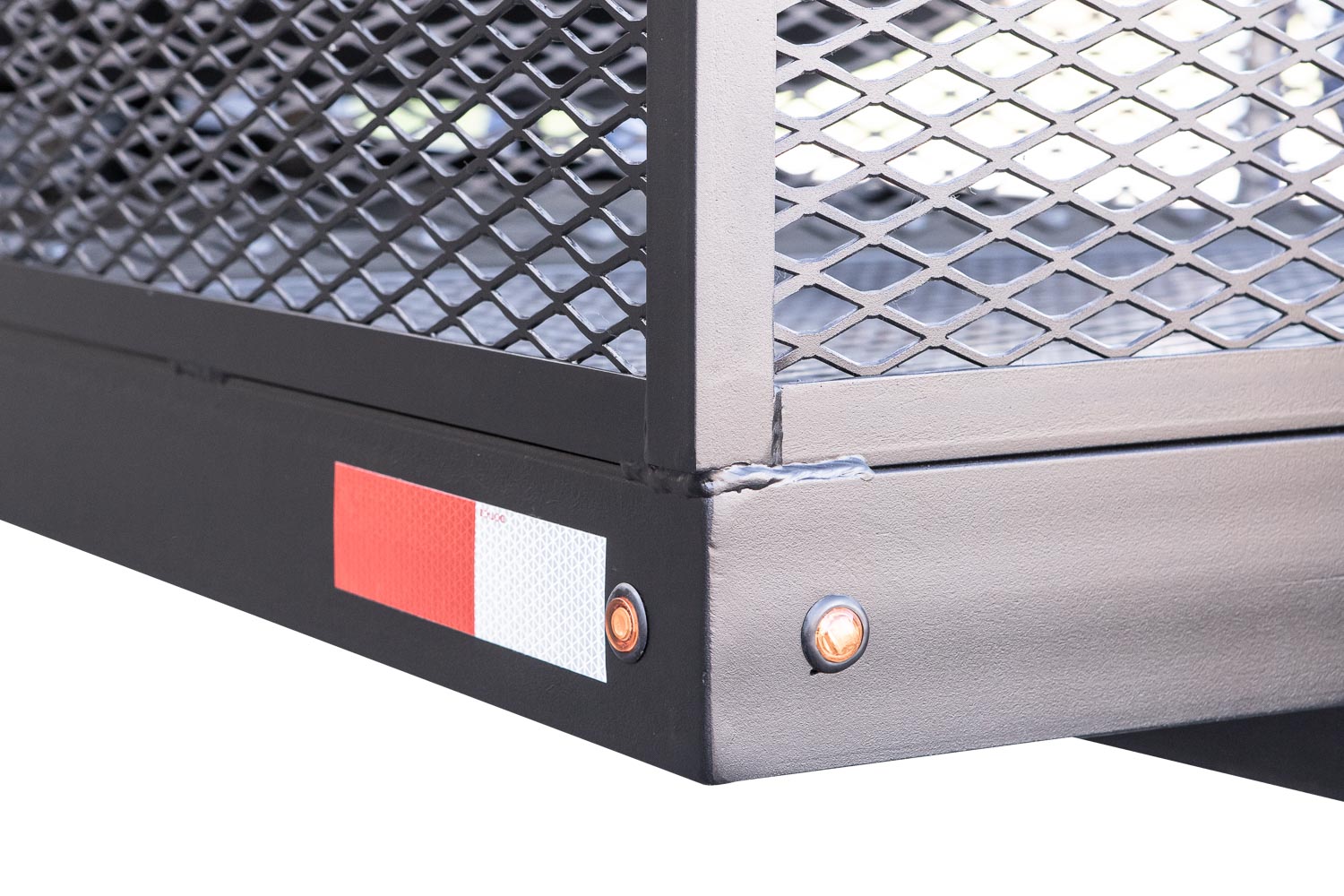

LED Trailer Lights With 7-Round RV Plug
Spacious Wood Box
Heat Baffles on Fire Box to Protect Wheels
Manufacturer’s VIN Plate
Gas Springs on Smoker Doors
Additional information
Overall Dimensions
202"l x 72"w x 98"h
Cooking Area
130.81 sq. ft. (18,837 sq. in.)
Grate Dimensions
2 – 33” x 63”, 4 – 39.75” x 63”, 2 – 37” x 63”
Space Above Top Grate
5.5”
Space Between Grates
5.5”
Grate Style
Wire Grid With 1/2” Spacing
Tank Dimensions
41” x 168” (1000-gallon)
Metal Thickness on Tank
0.25”

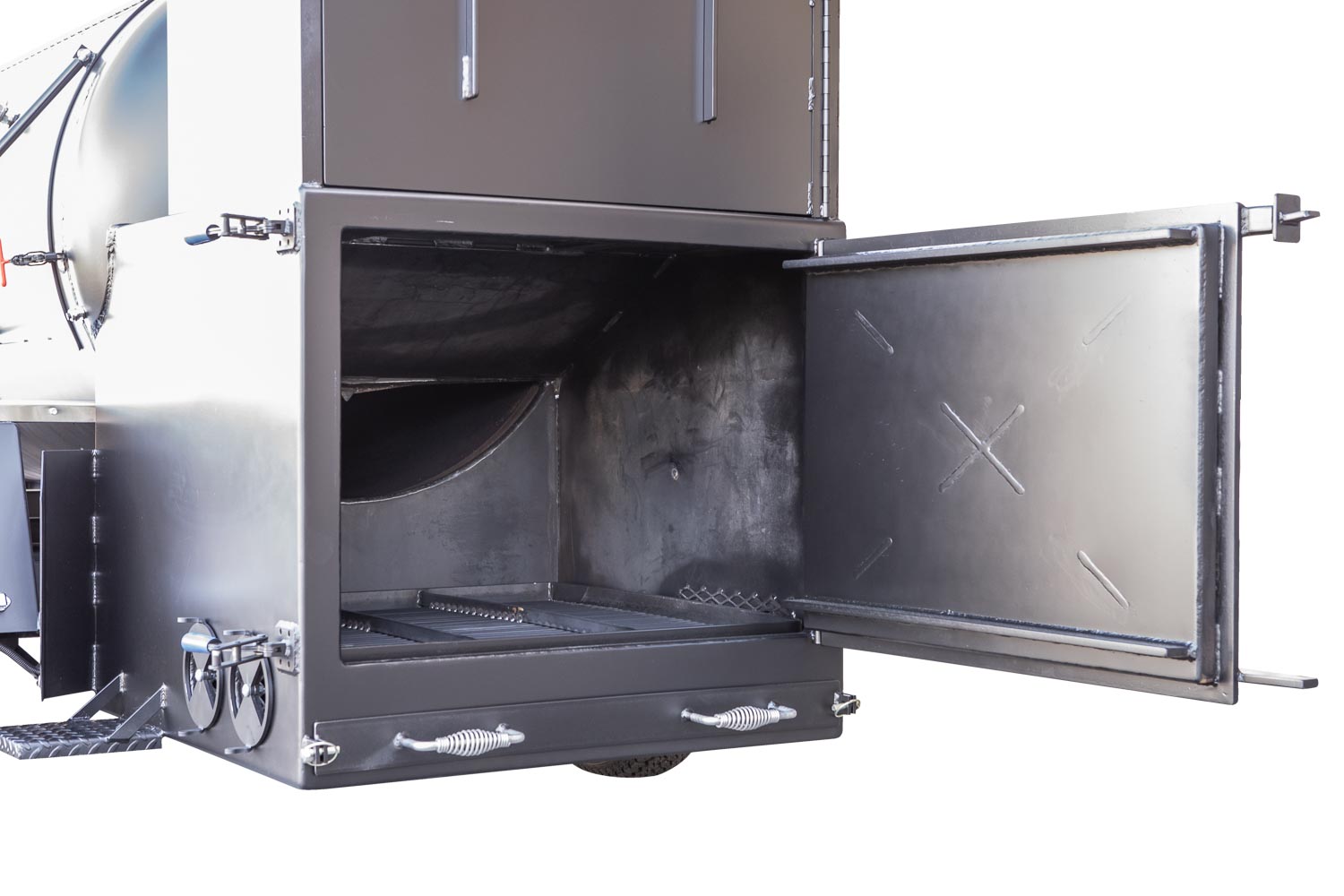

Fire Box Dimensions
38.5” Cube (Inside: 38” x 38” x 34”)
Metal Thickness on Fire Box
0.25”
Warming Box Dimensions
26” x 34.25” (Inside)
Warming Box Grate Dimensions
26” x 34.25”
Space Between Grates in Warmer
8.5”
Net Weight
5,000 lbs.
Capacity of Pork Butts
178-182
Capacity of Baby Back Ribs
140-165
Capacity of Spare Ribs
100-110
Capacity of Whole Briskets
130-140
Capacity of Whole Chickens
280-290
