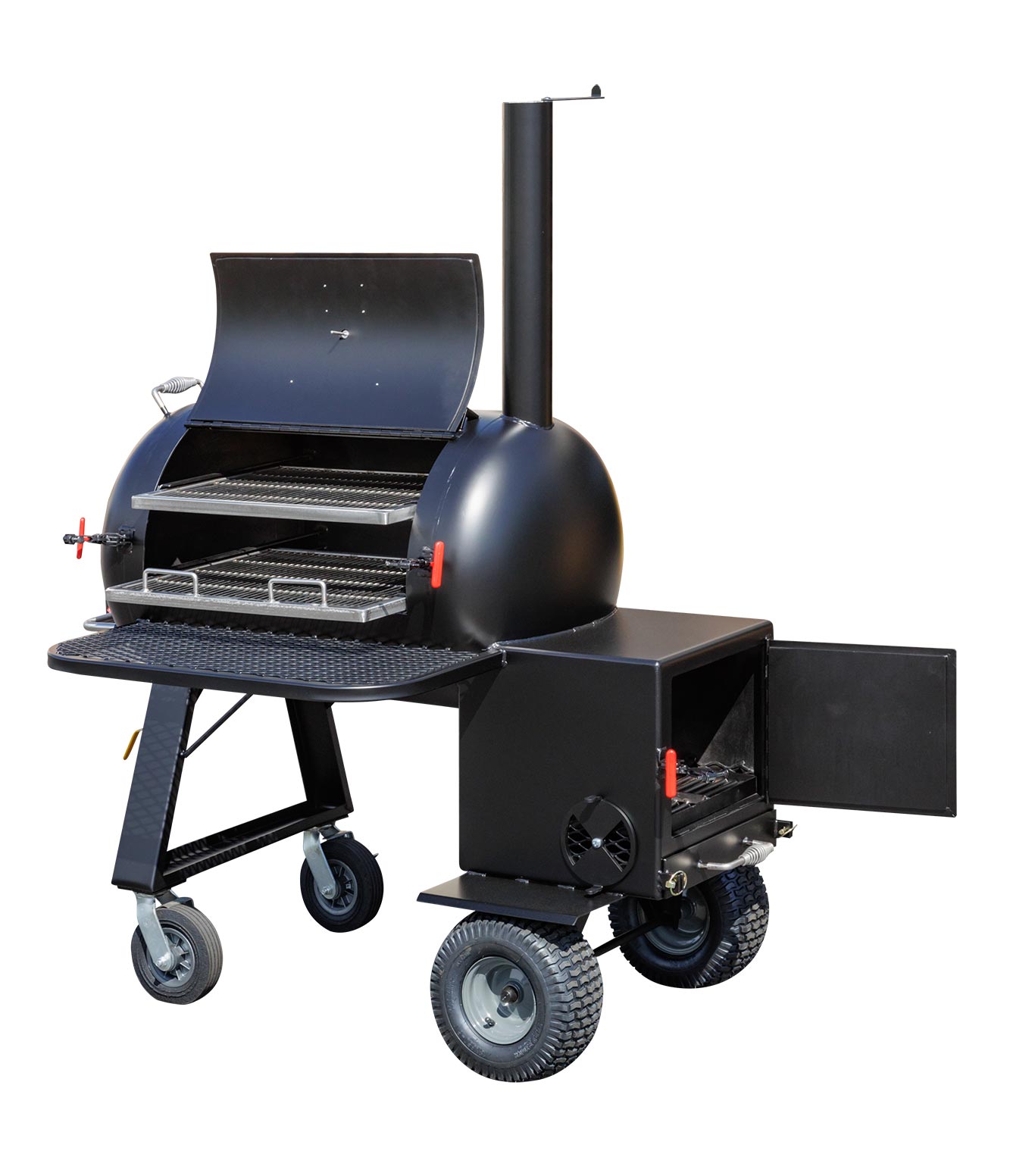

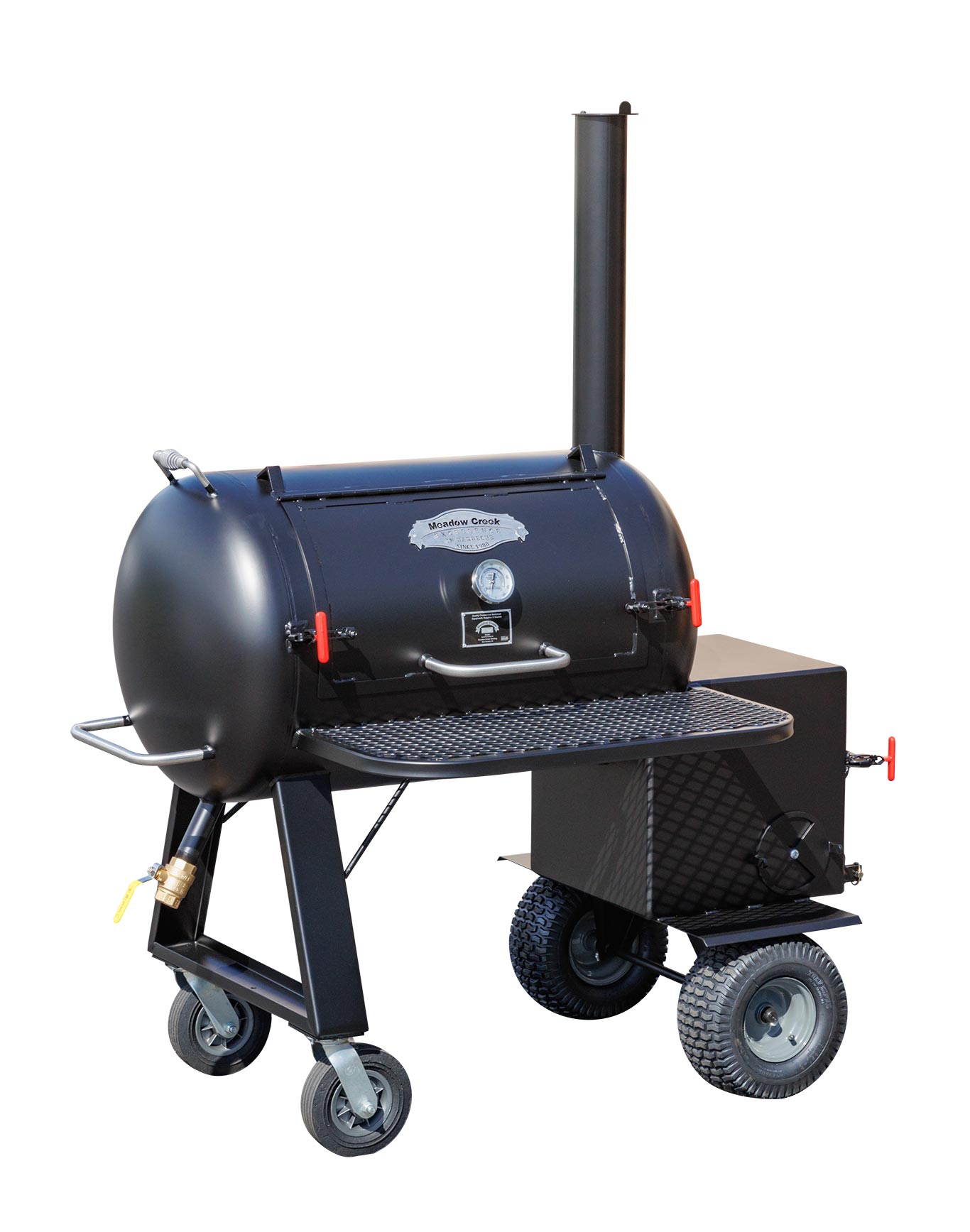

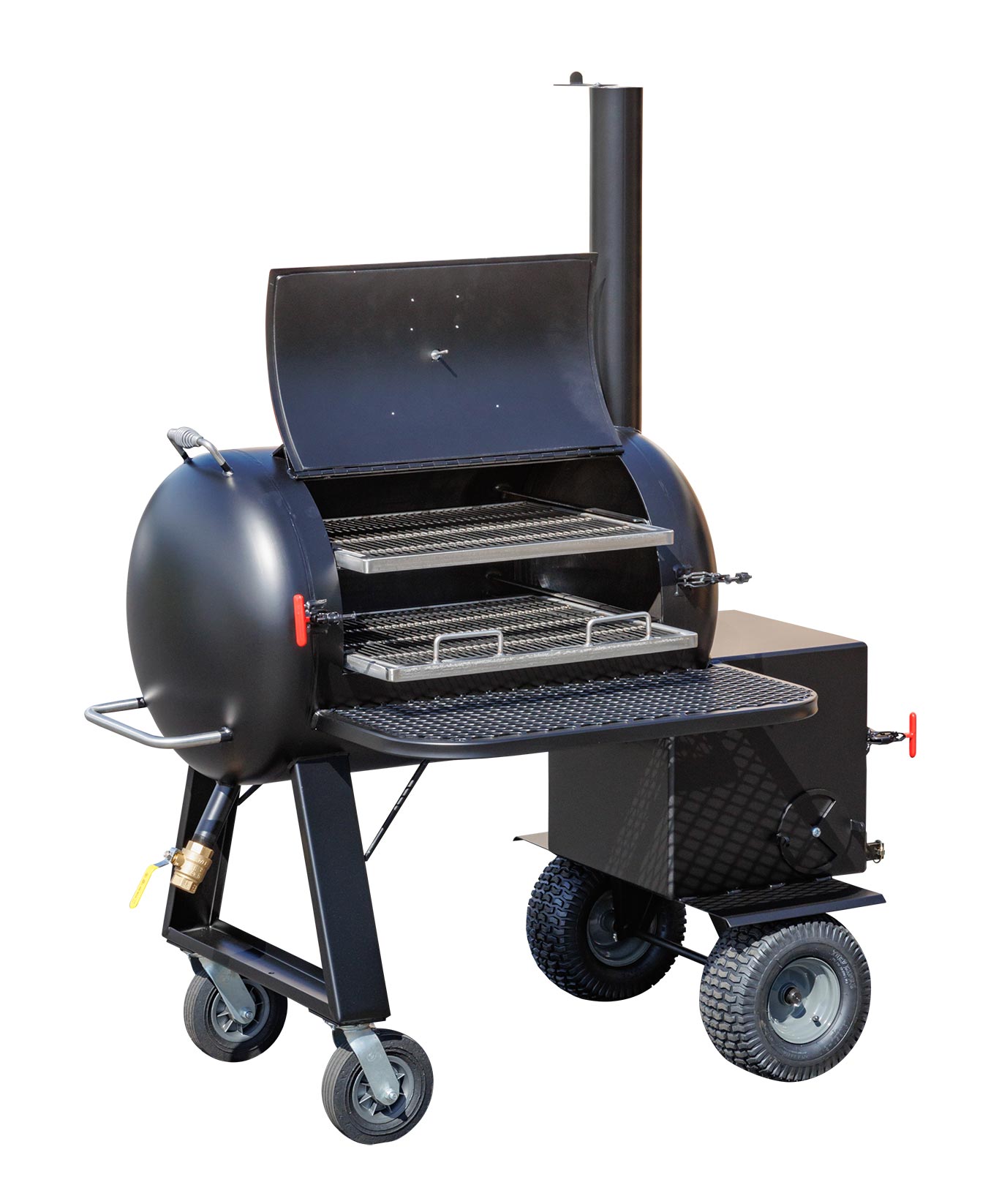

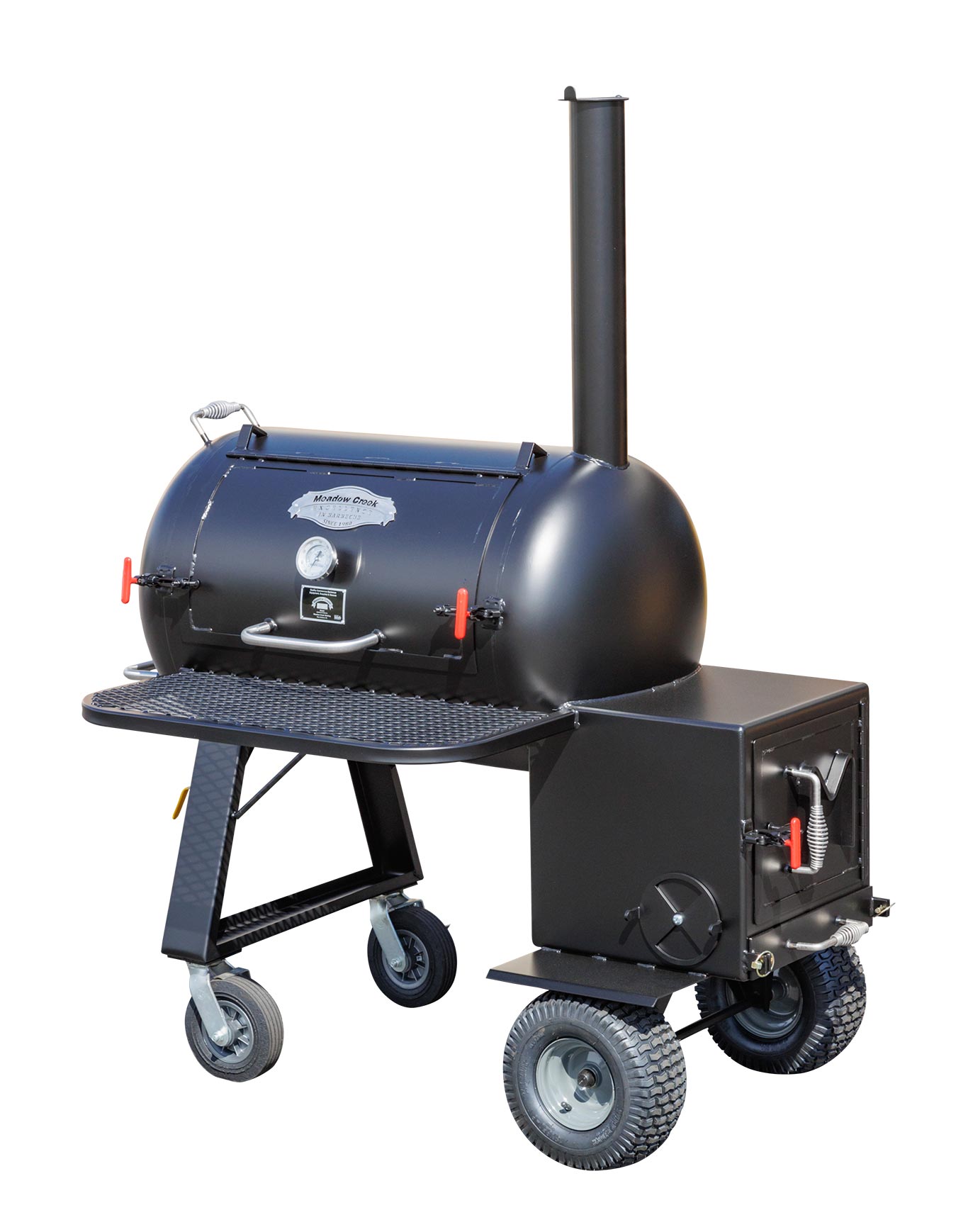

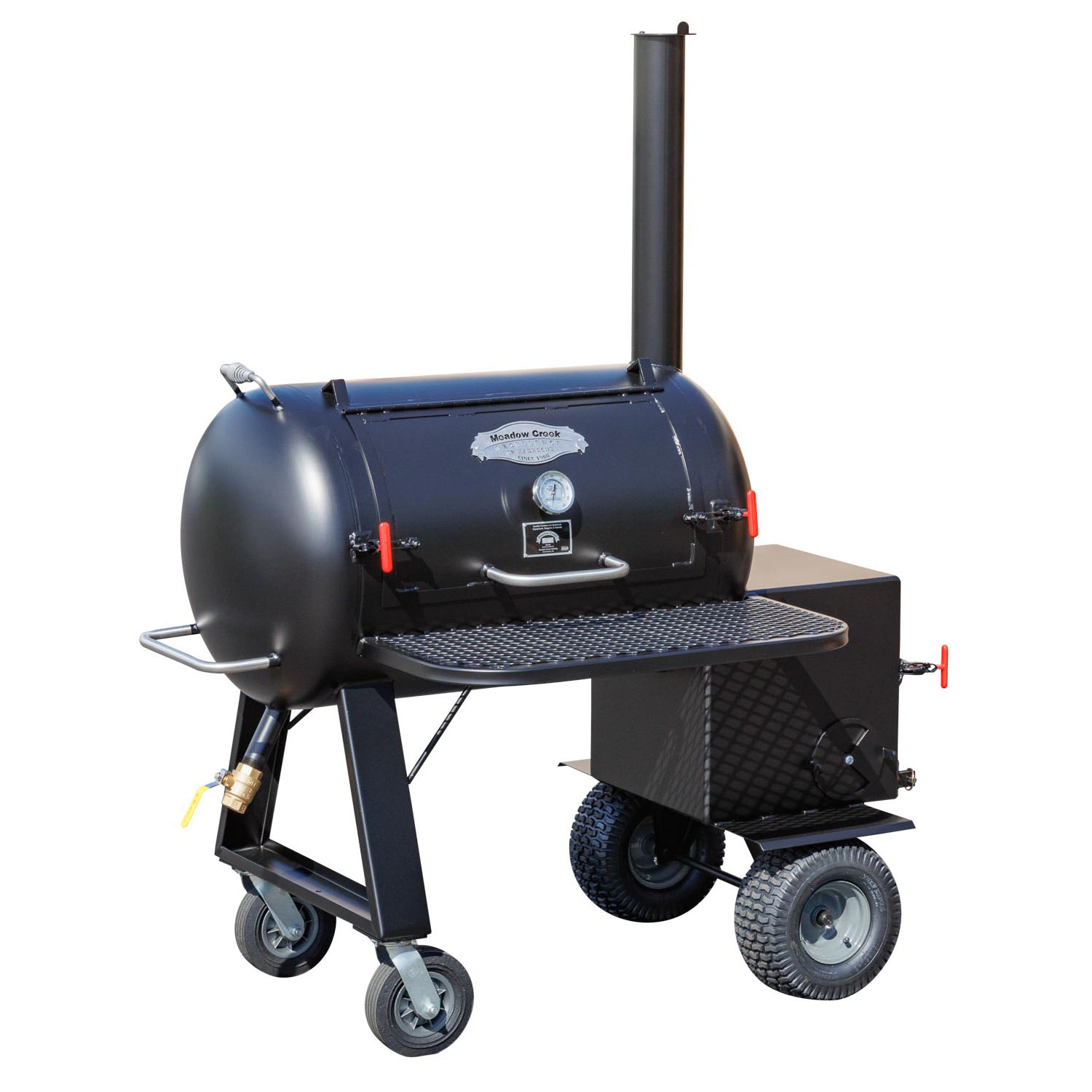

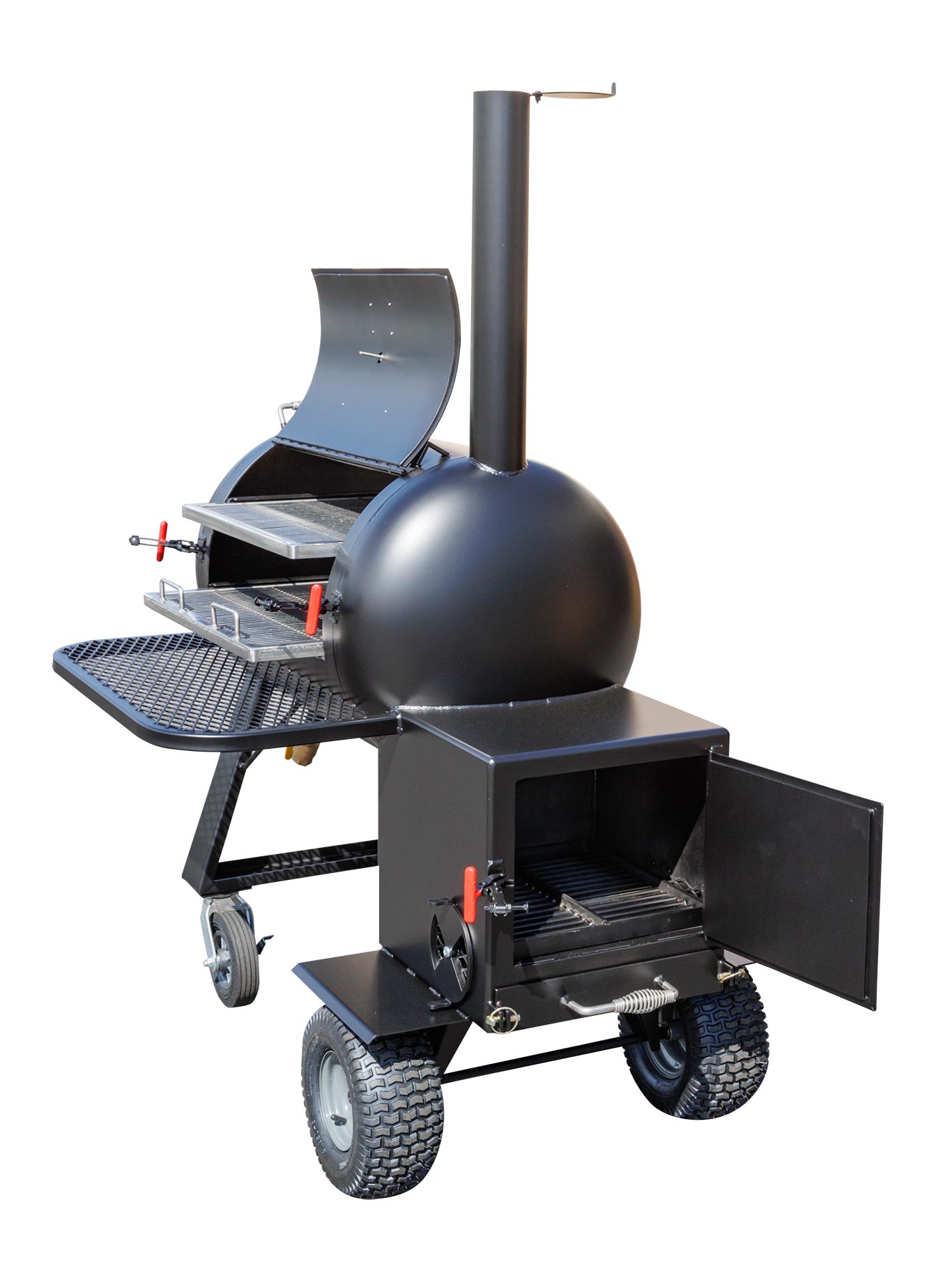

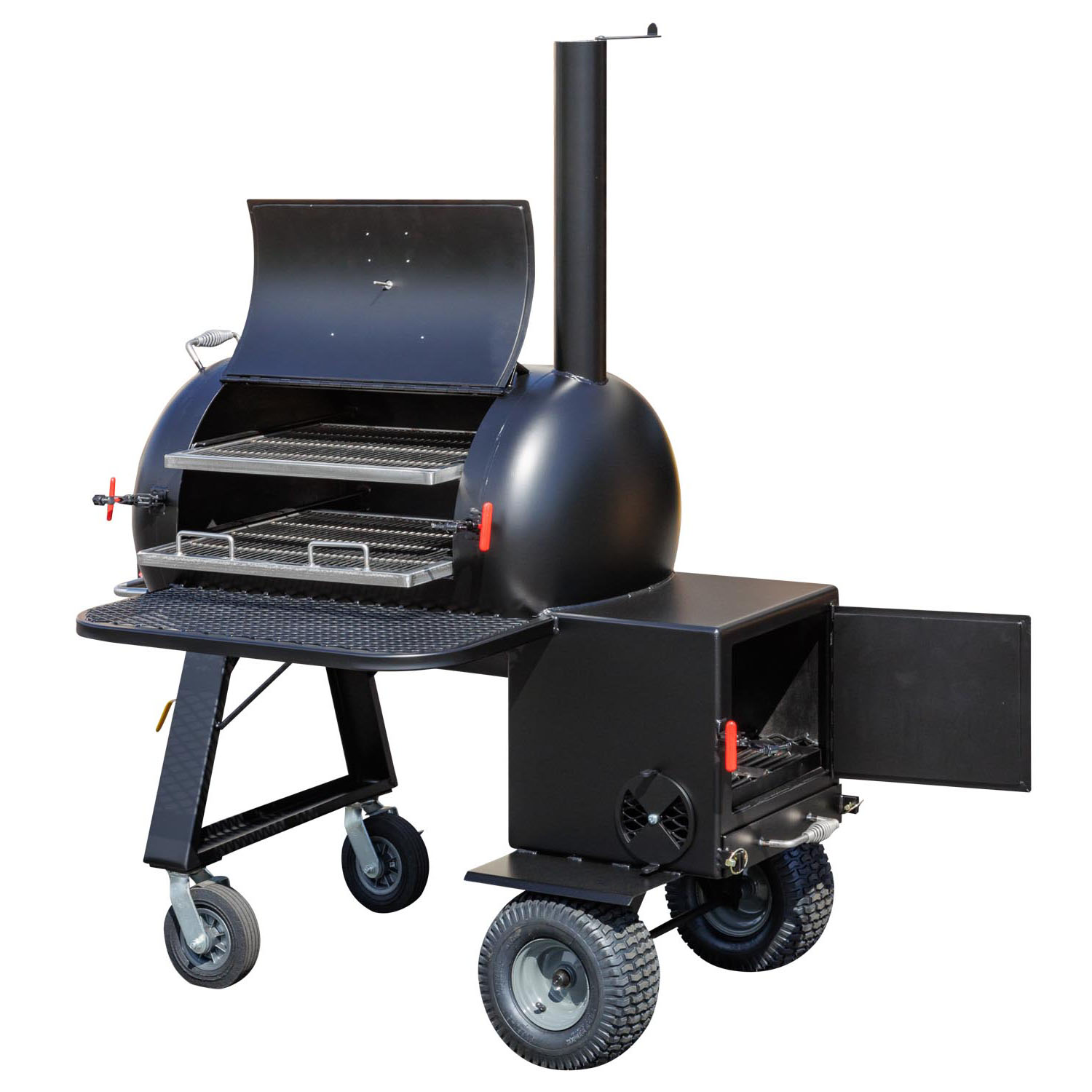

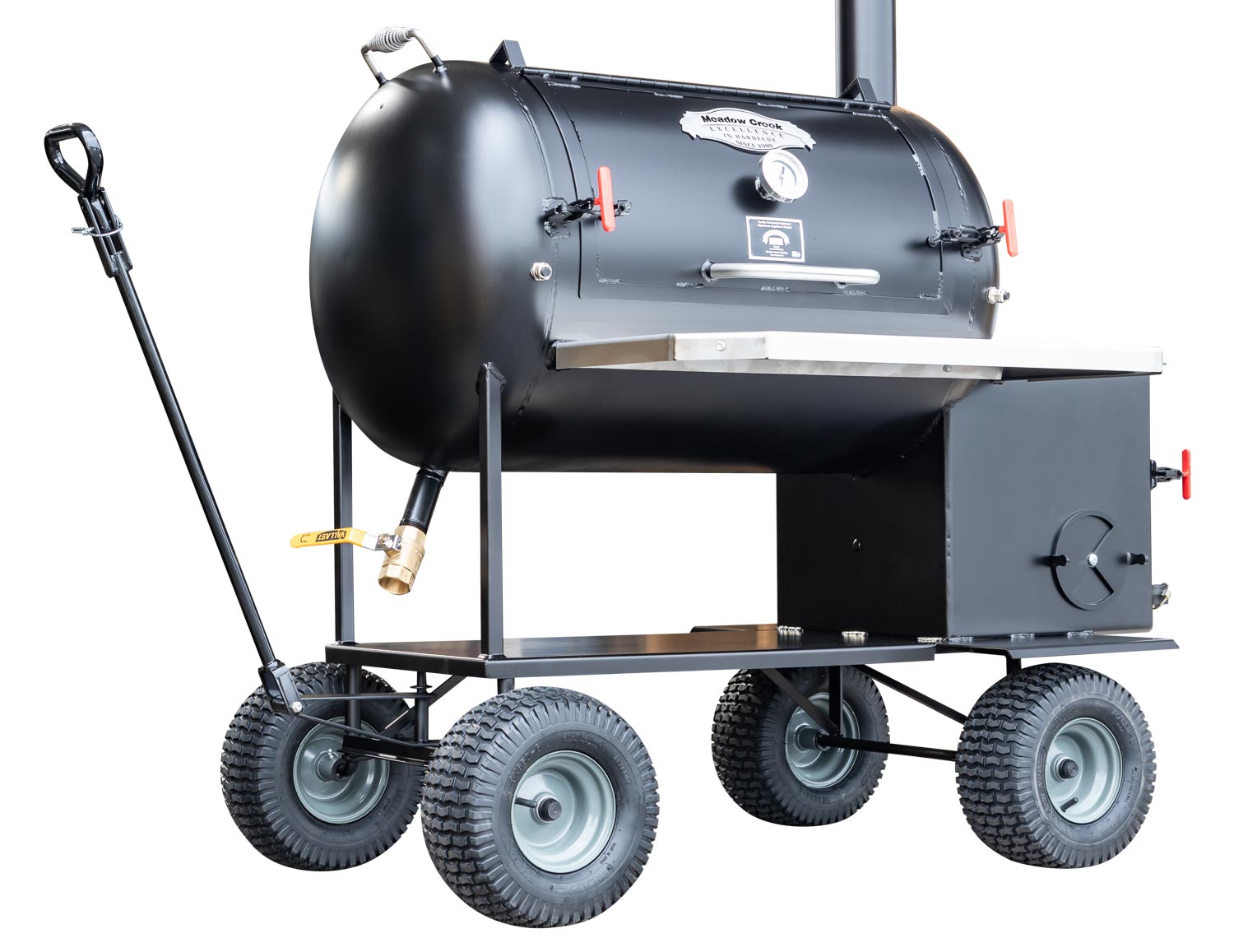

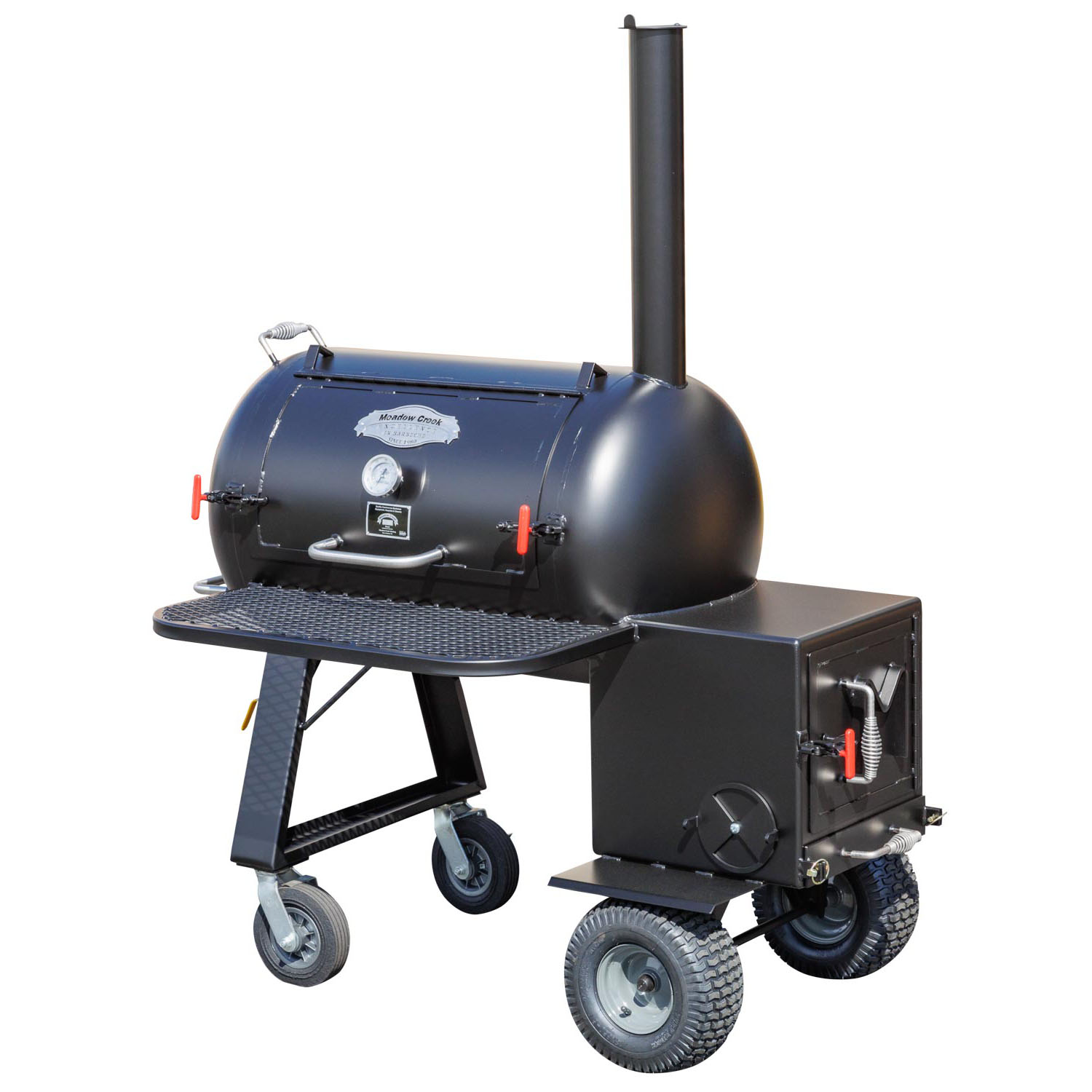

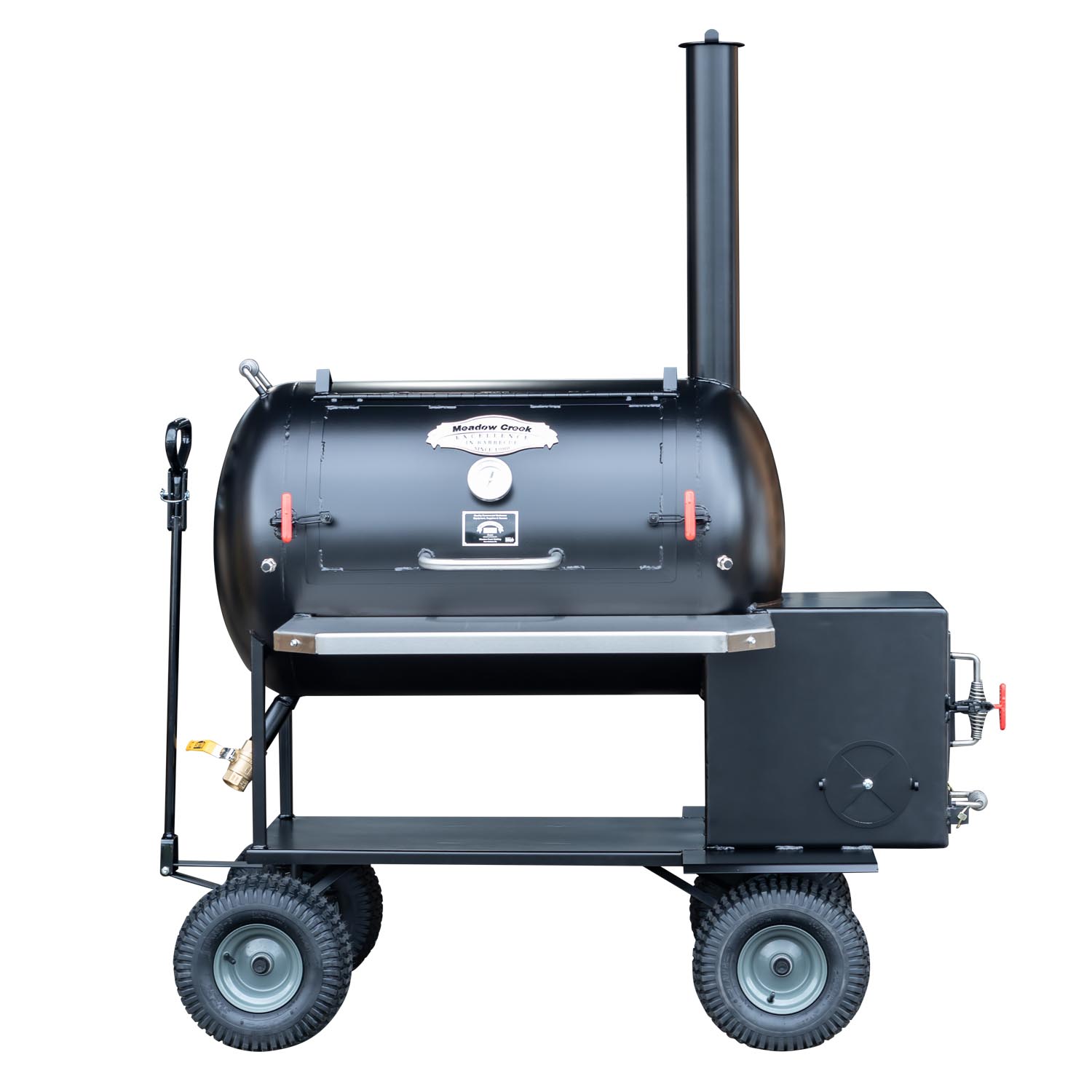

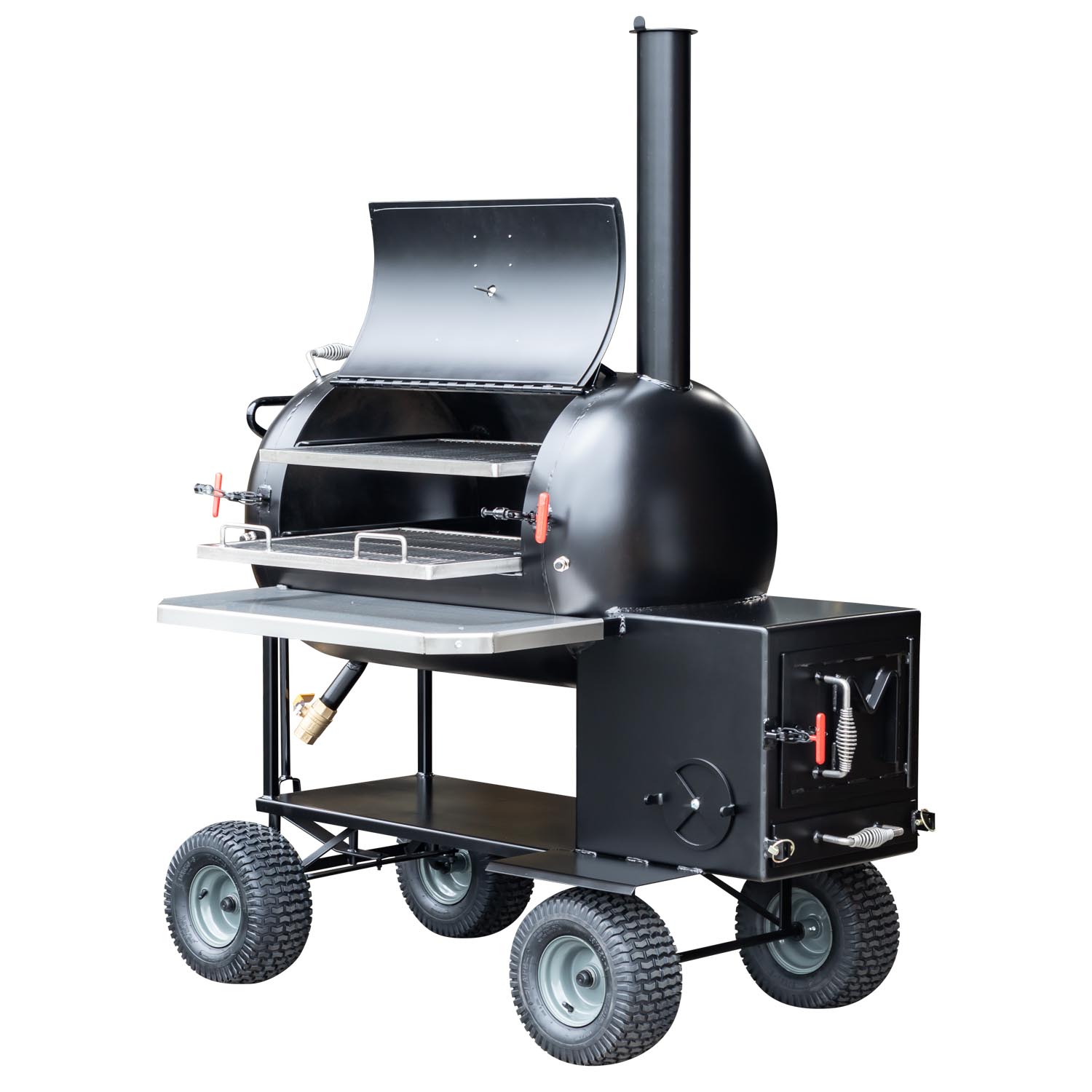

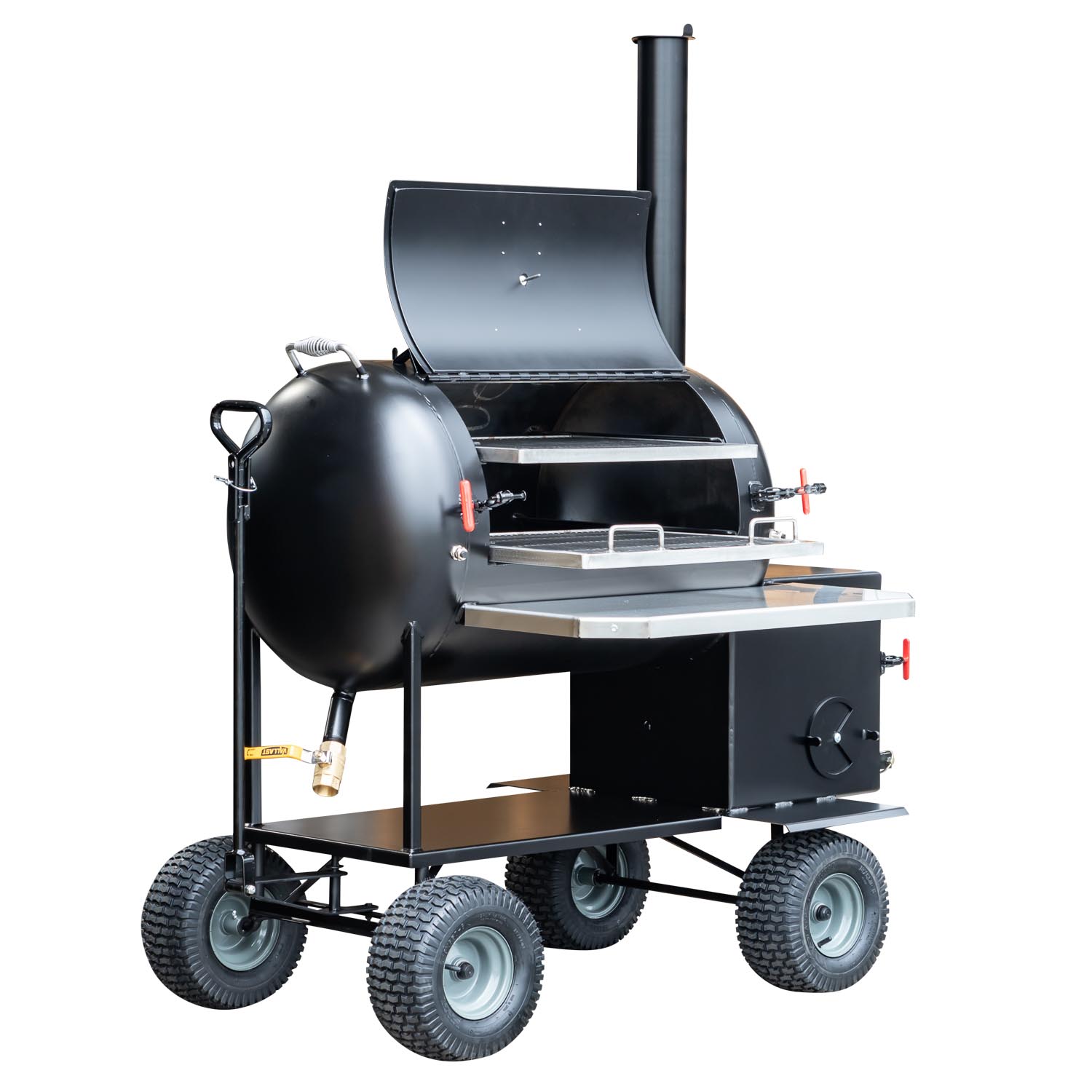

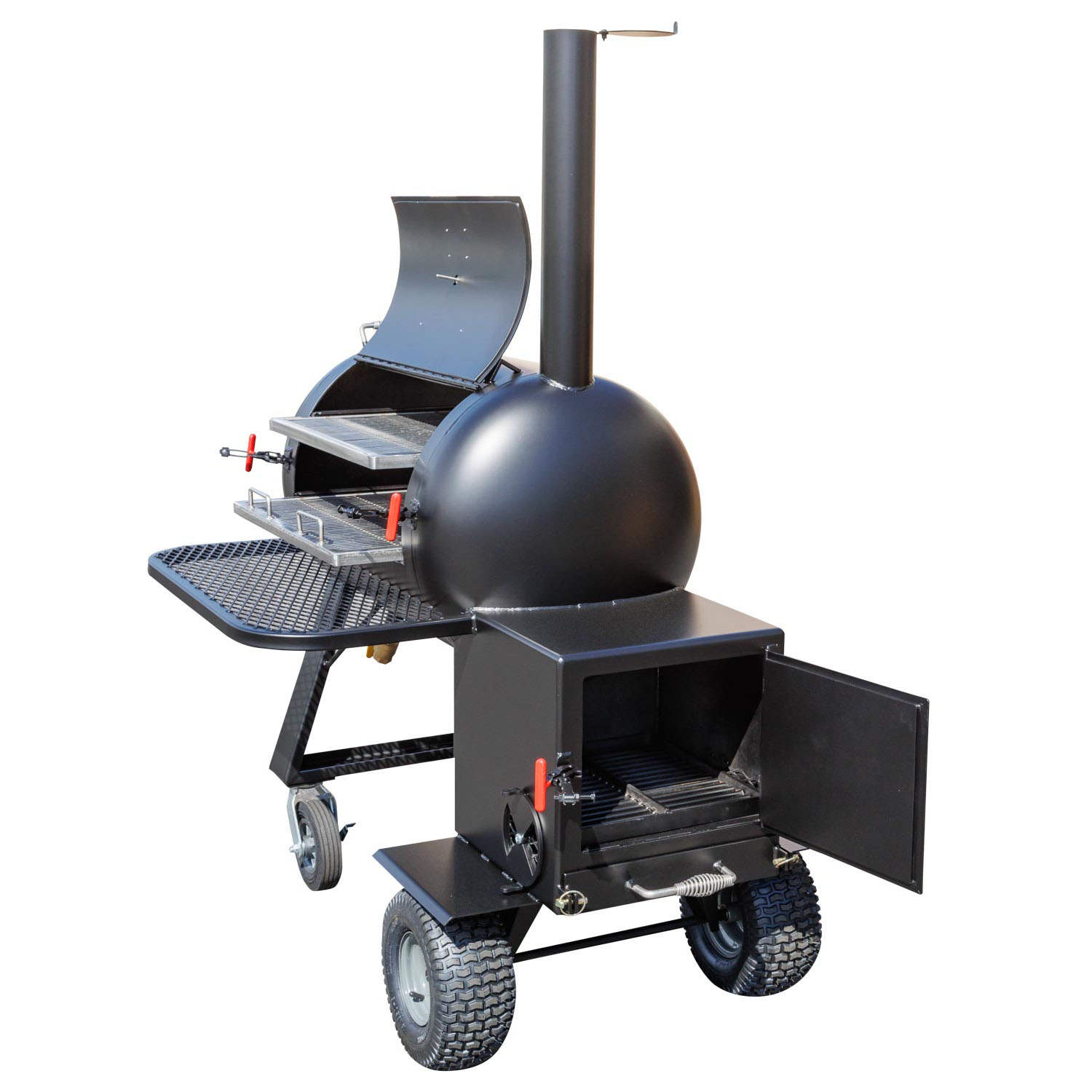

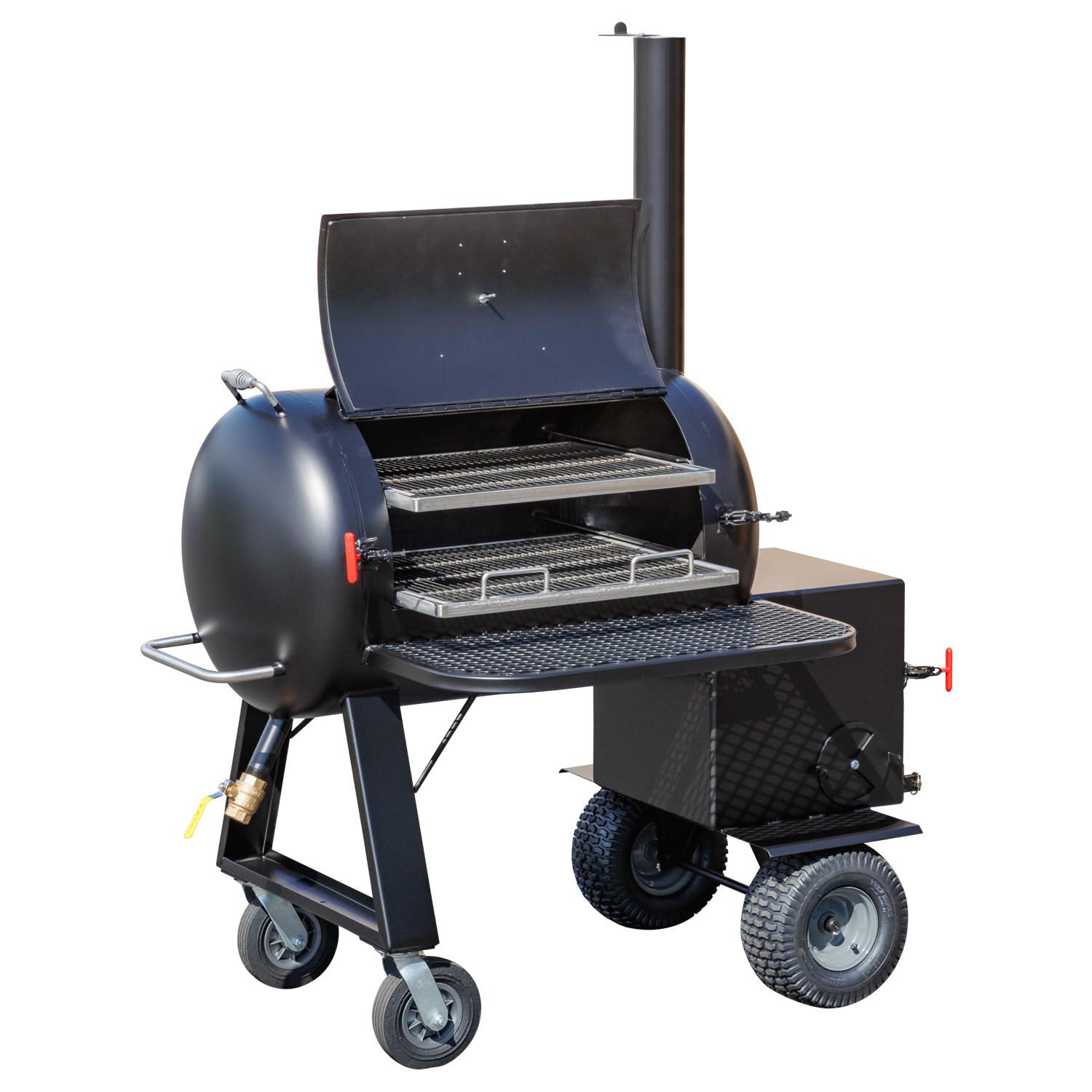

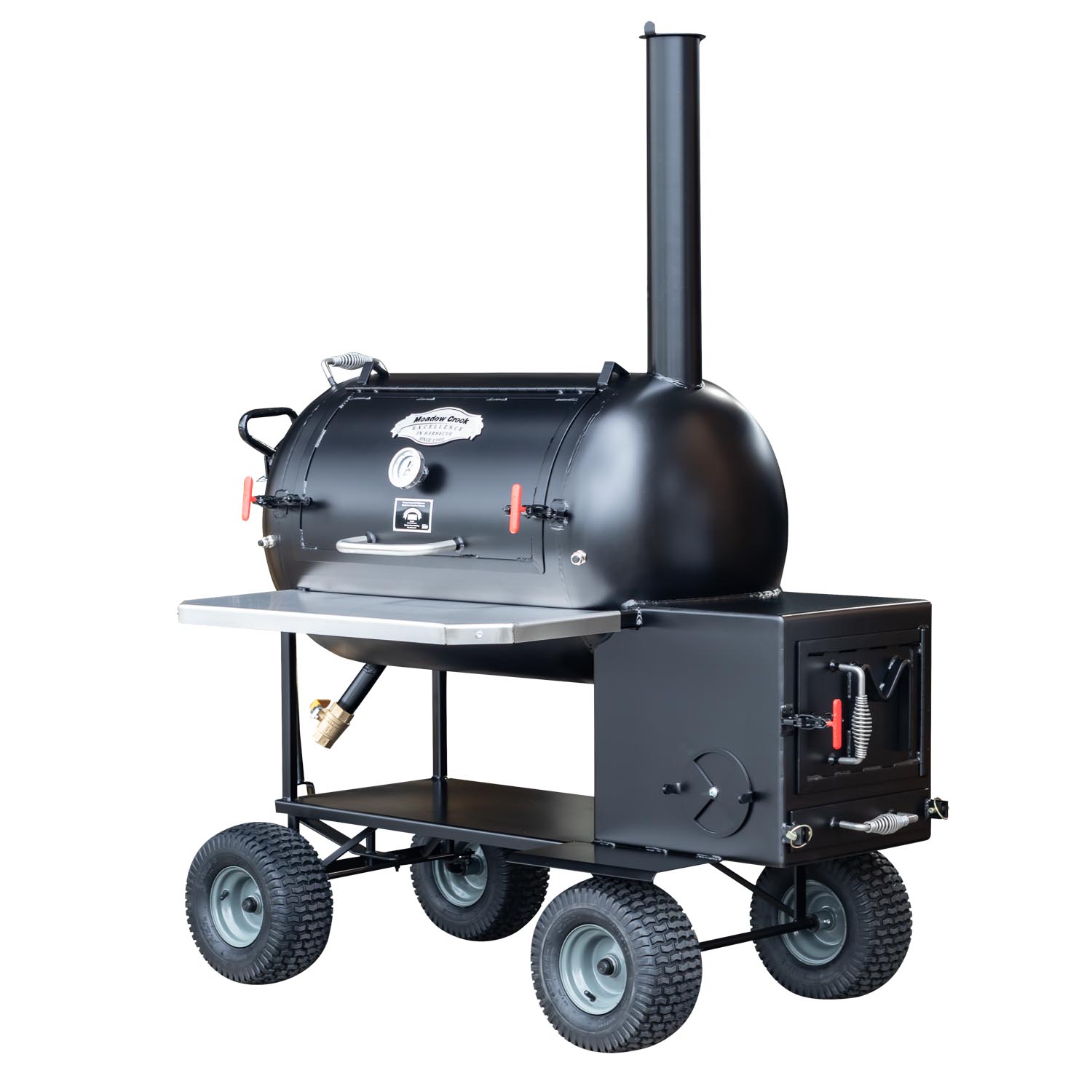

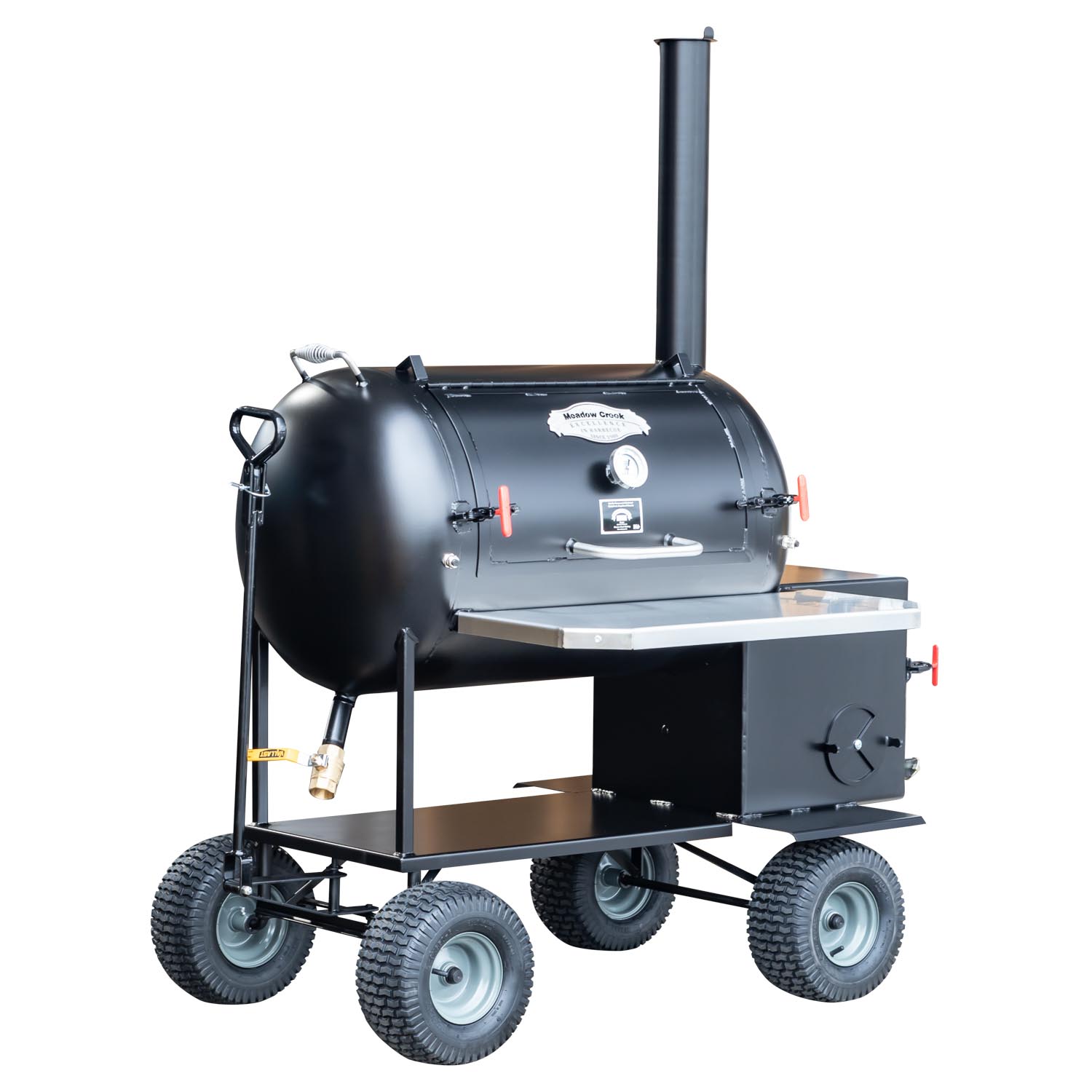

The Meadow Creek TS70P BBQ Smoker is an offset smoker for backyard or competition use. Like all of Meadow Creek’s tank smokers, the TS70P stick burner is made from a heavy steel tank and is equipped with two slide-out stainless steel grates that never rust for many years of enjoyable cooking. Reverse flow draft makes it easy to maintain a consistent and more even temperature in the smoking chamber.

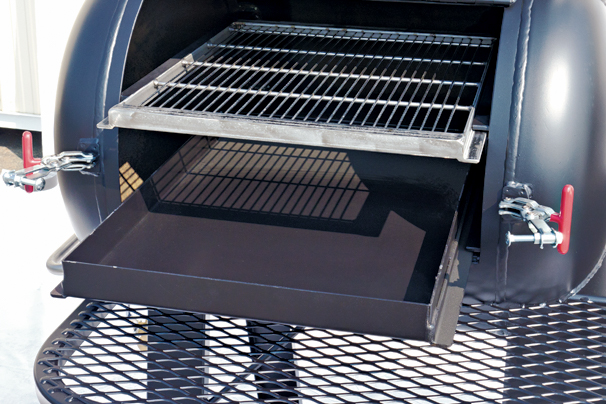

If you like water smoking, the built-in water pan holds water or apple juice in the bottom of the smoking chamber to help keep your meat from drying out. After you’re done, conveniently drain all the moisture out of the bottom through the handy drain spout.
Features
Reverse flow draft

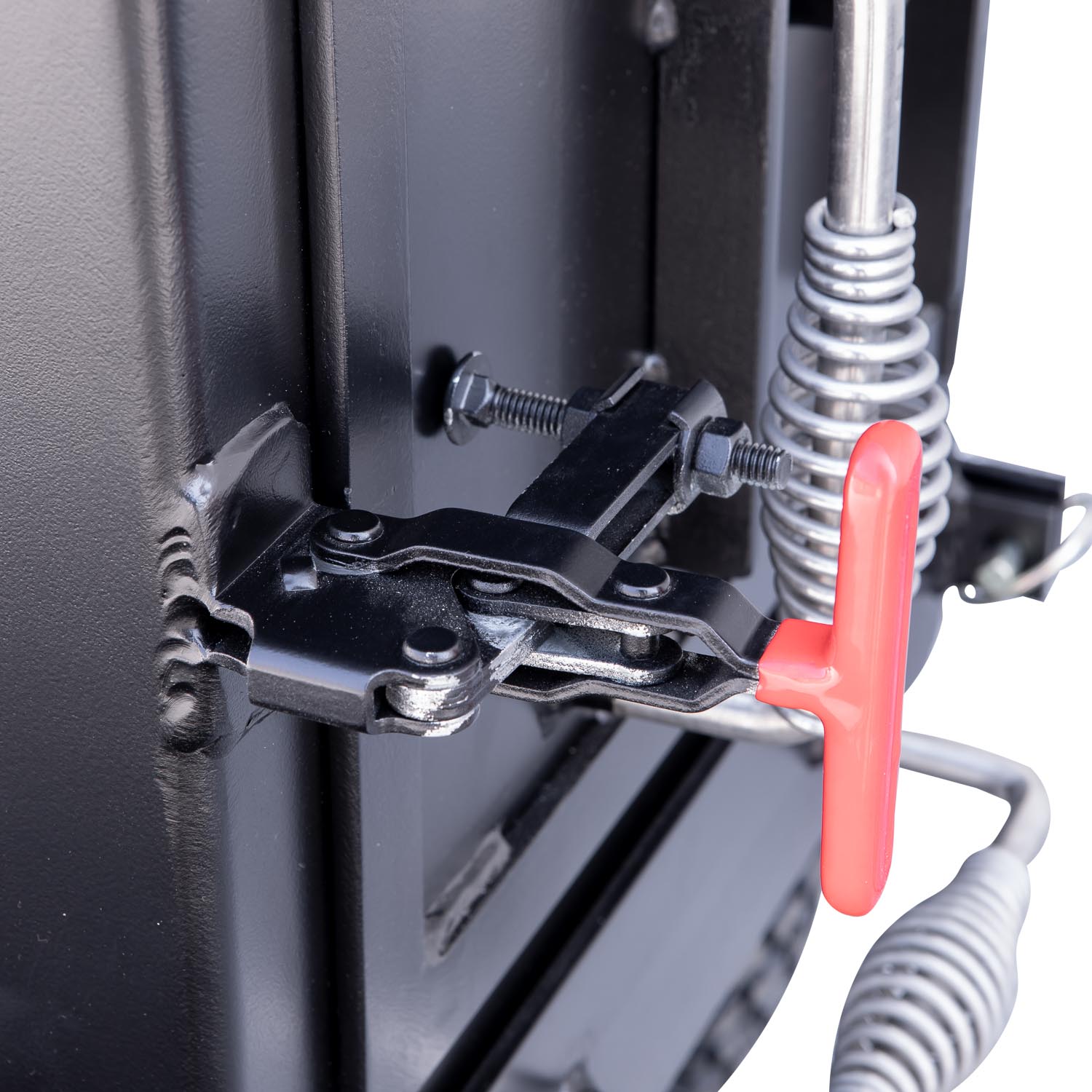

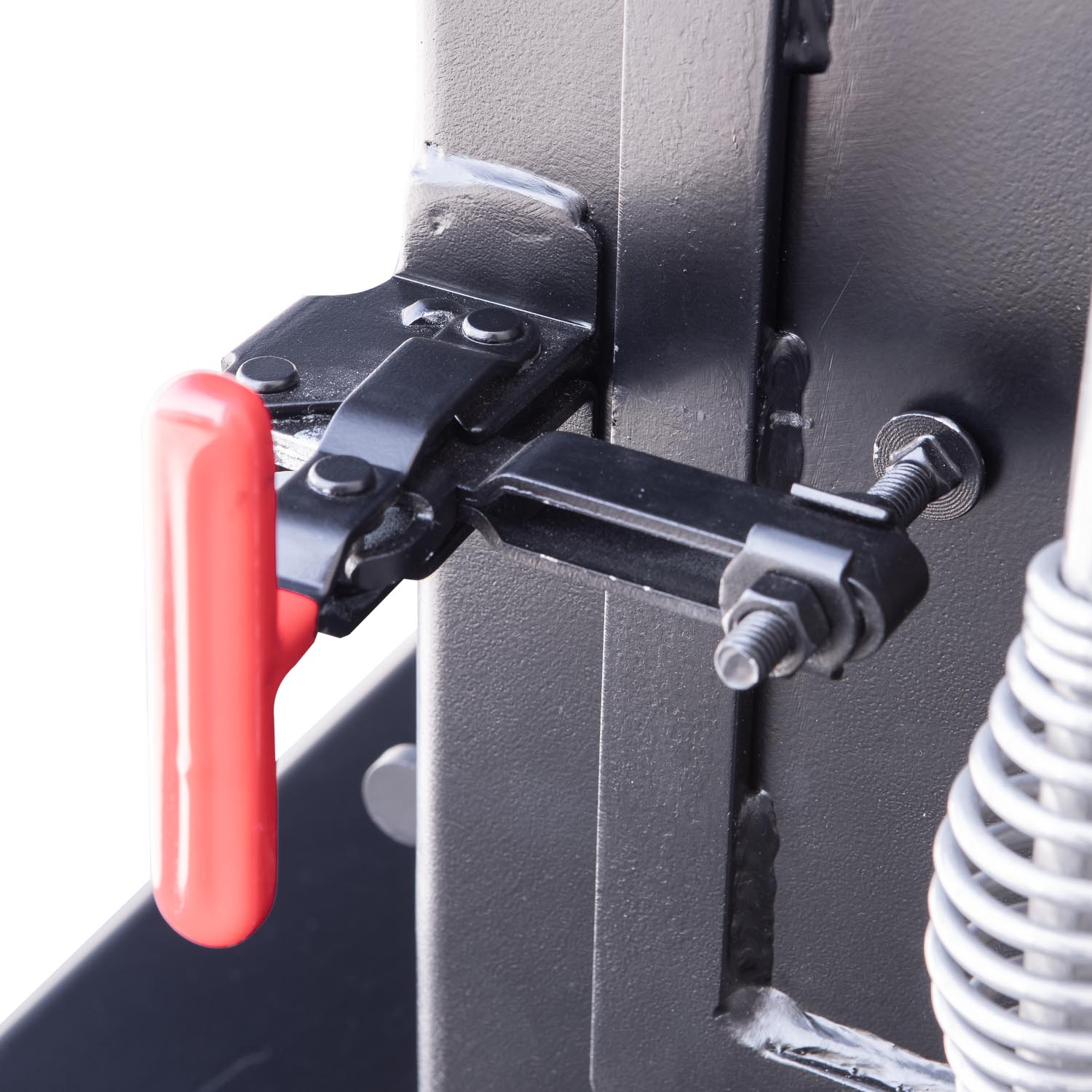

Positive-lock latches on all doors

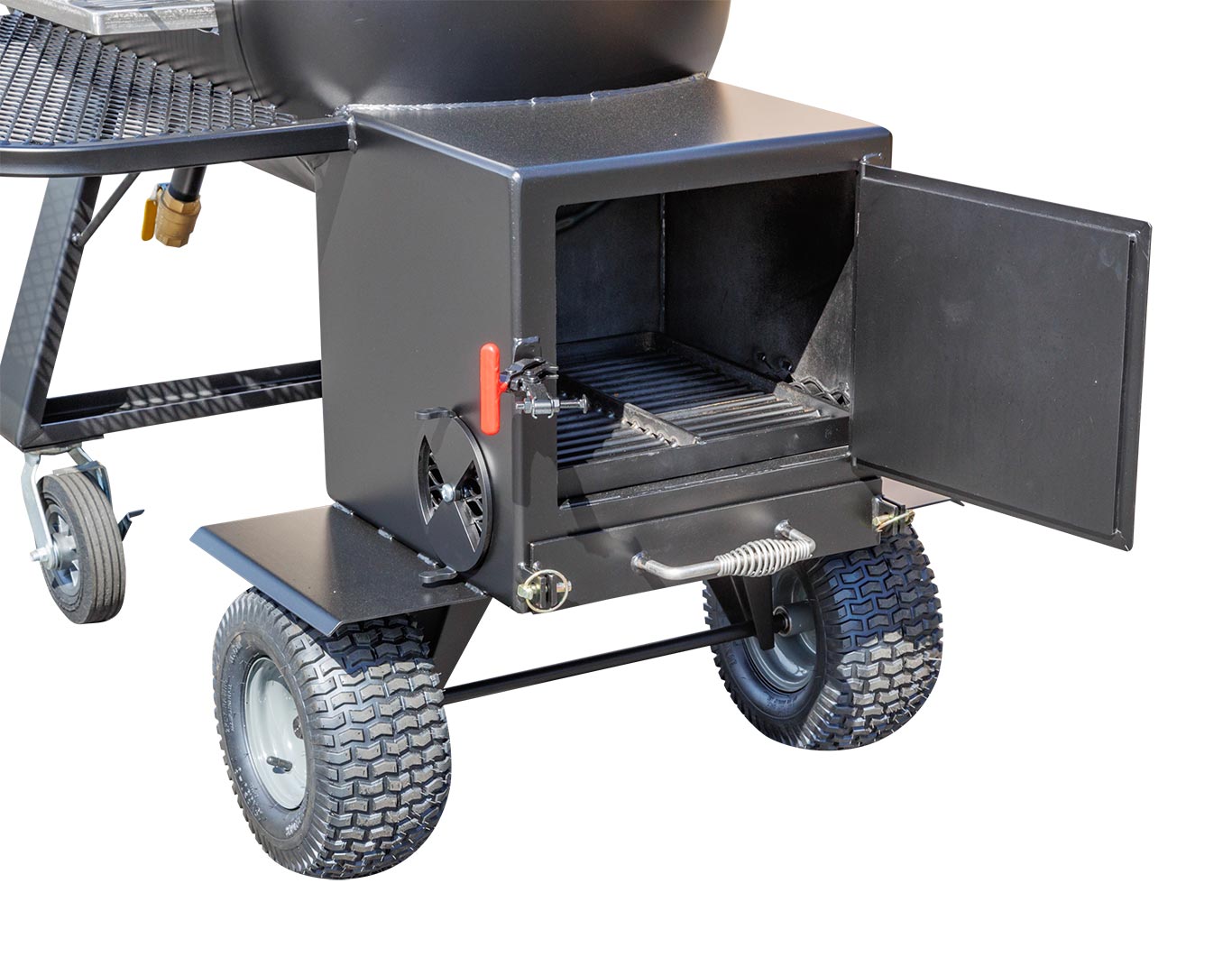

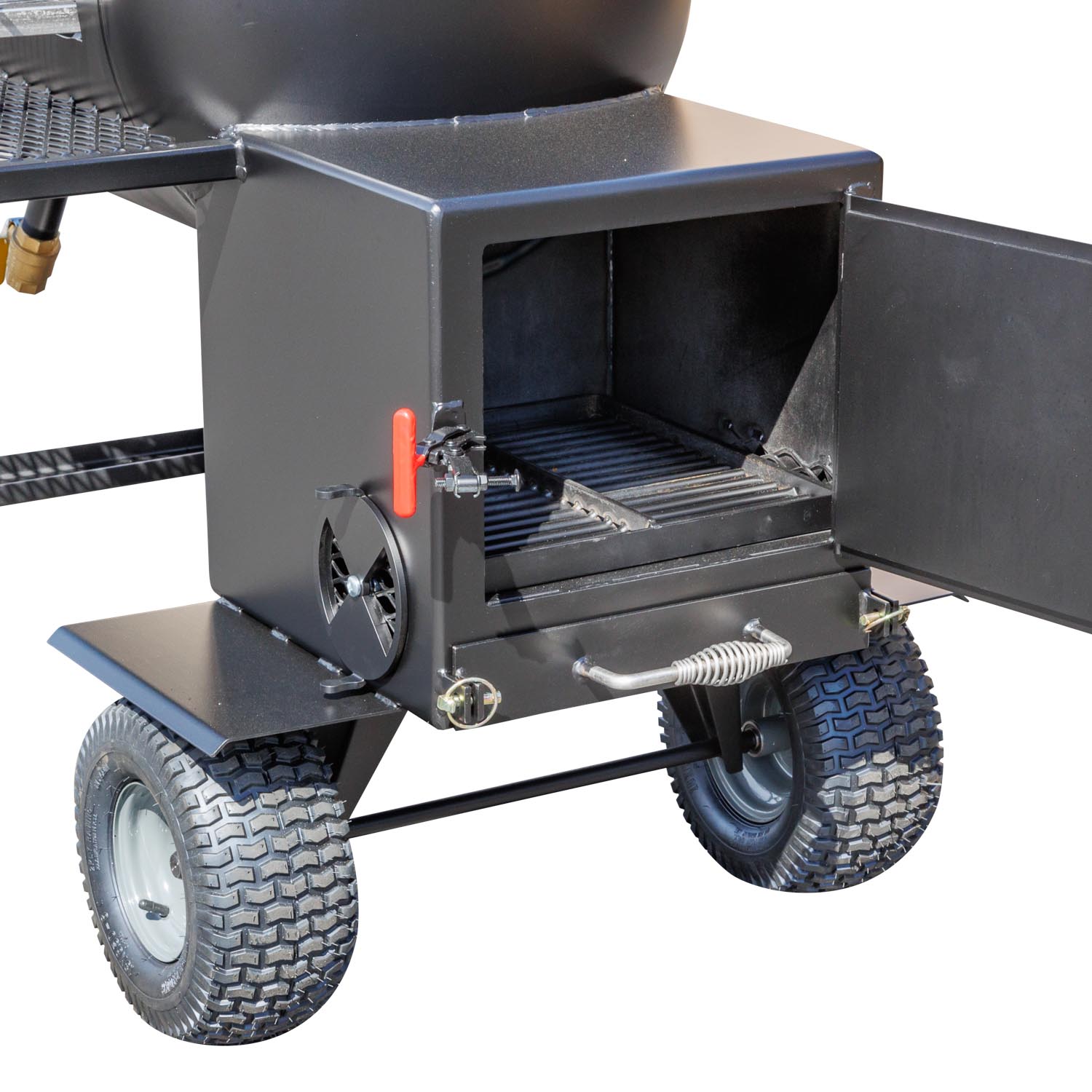

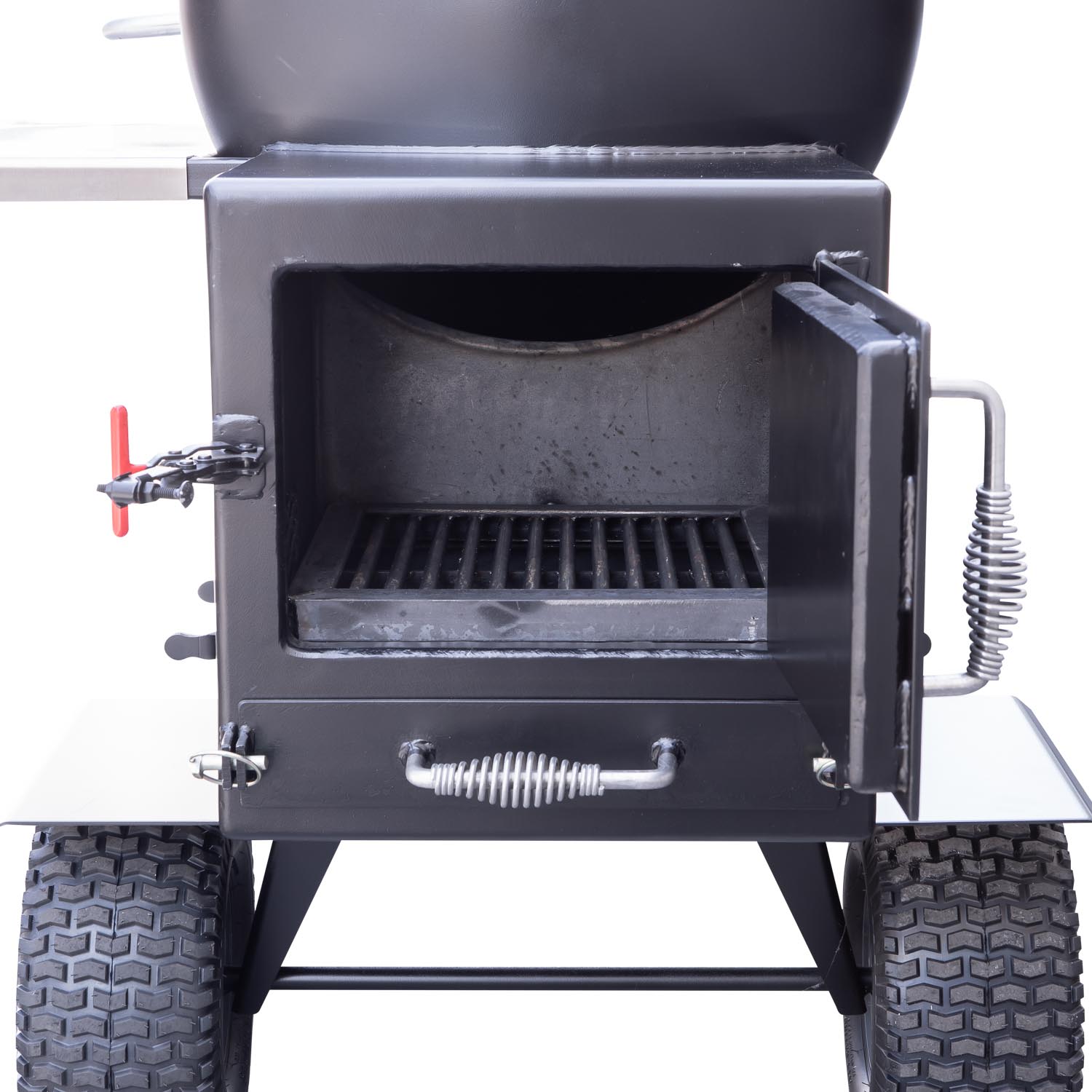

Grate in firebox with slide-out ash pan

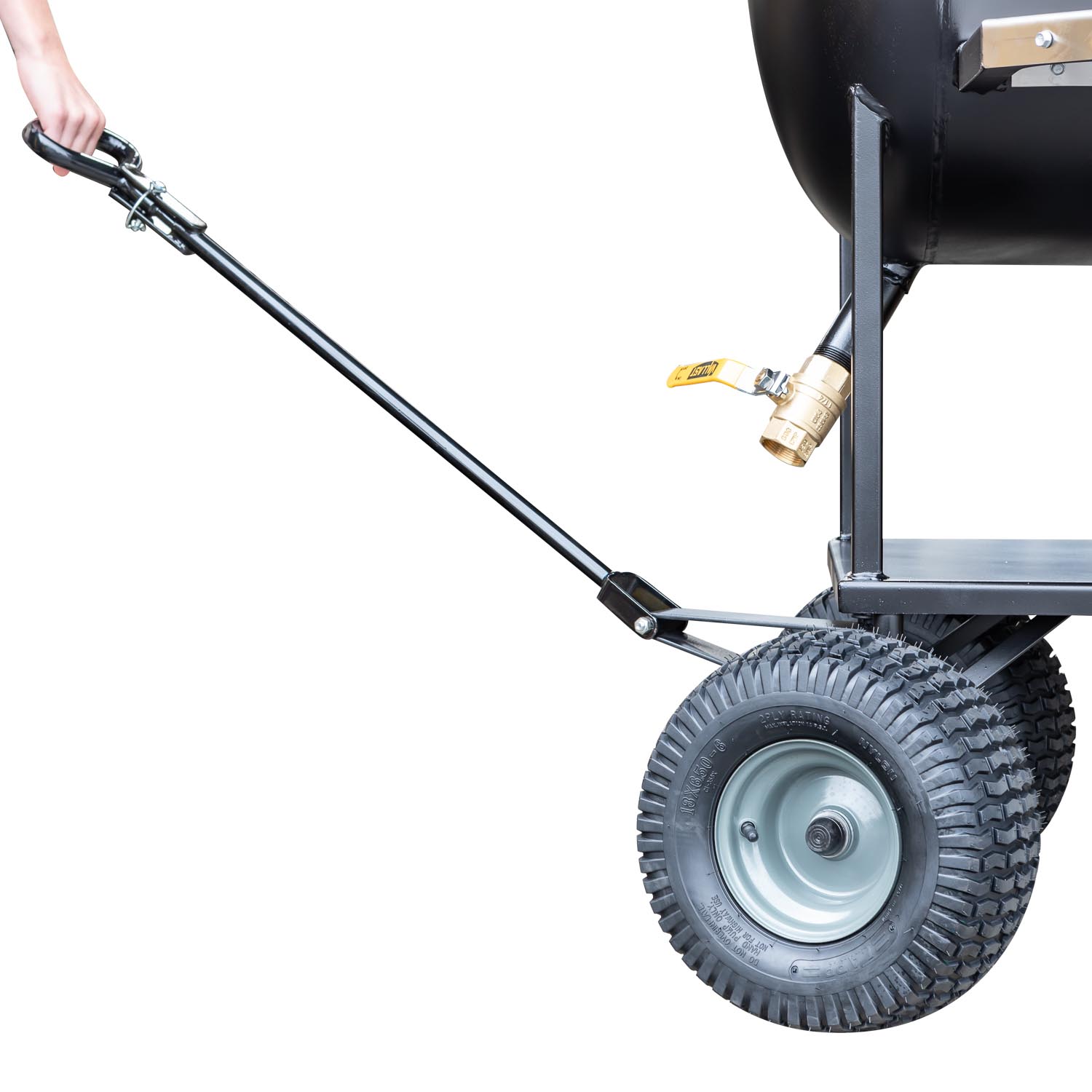

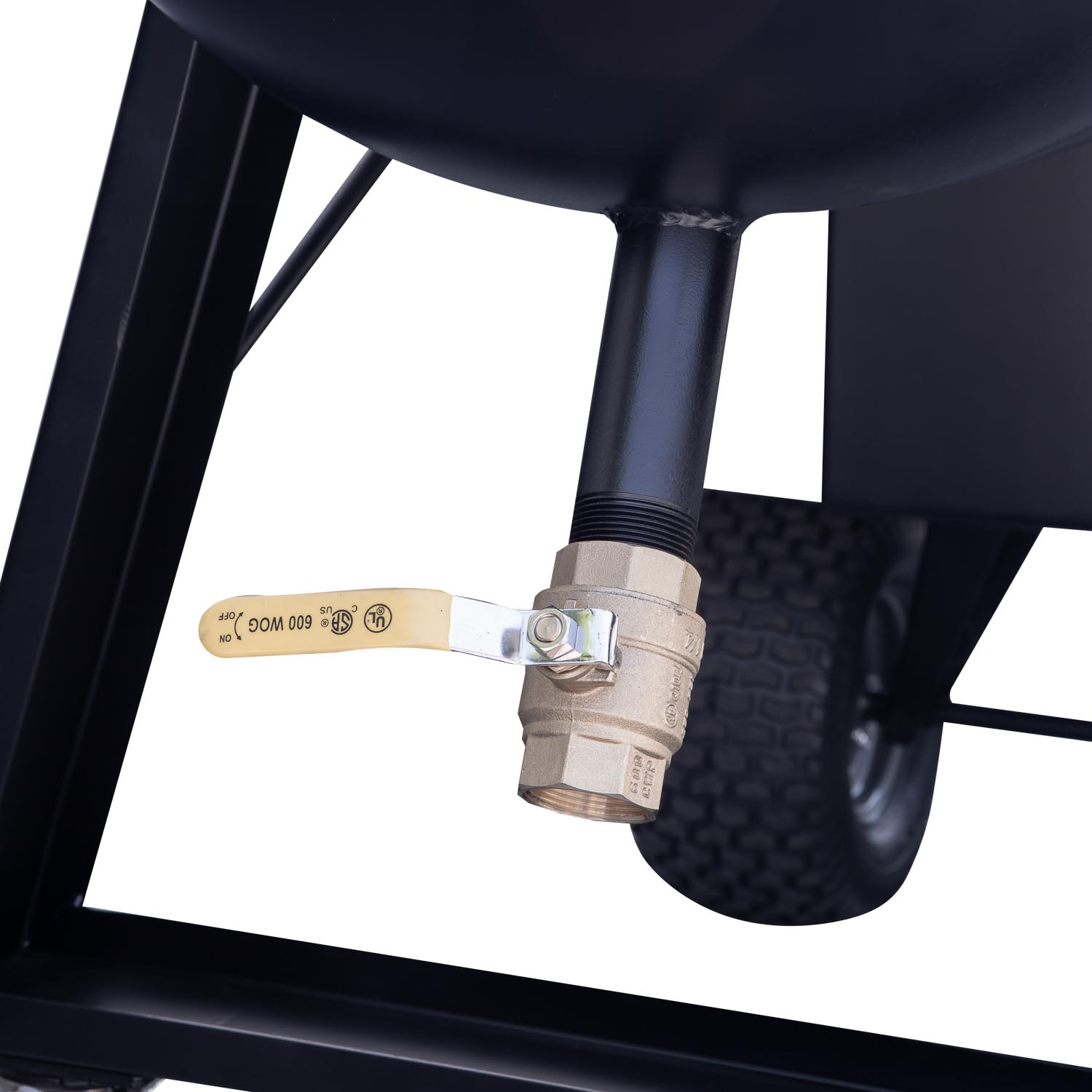

Drain with ball valve for draining the tank
Stainless steel handles
Door on one side of smoker

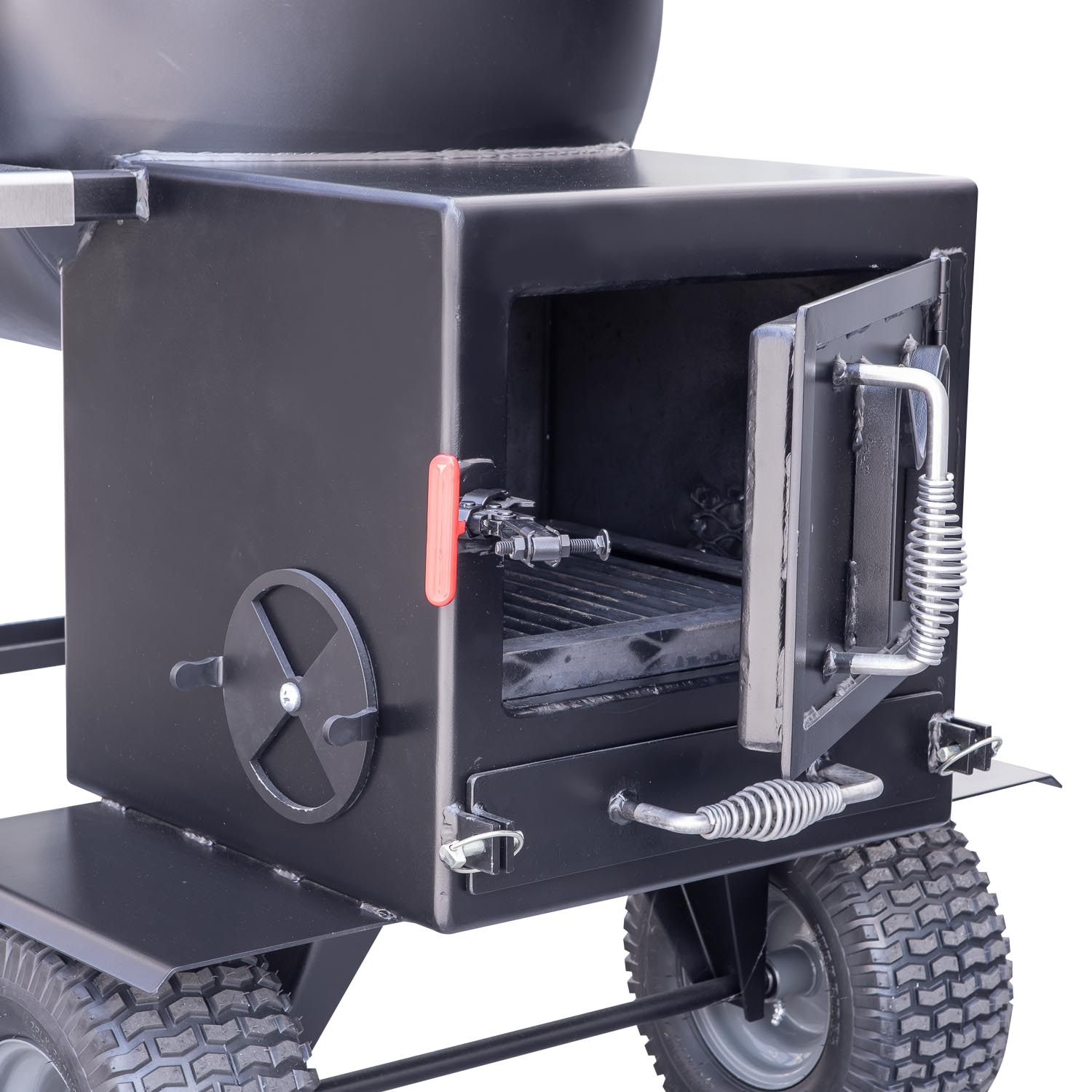

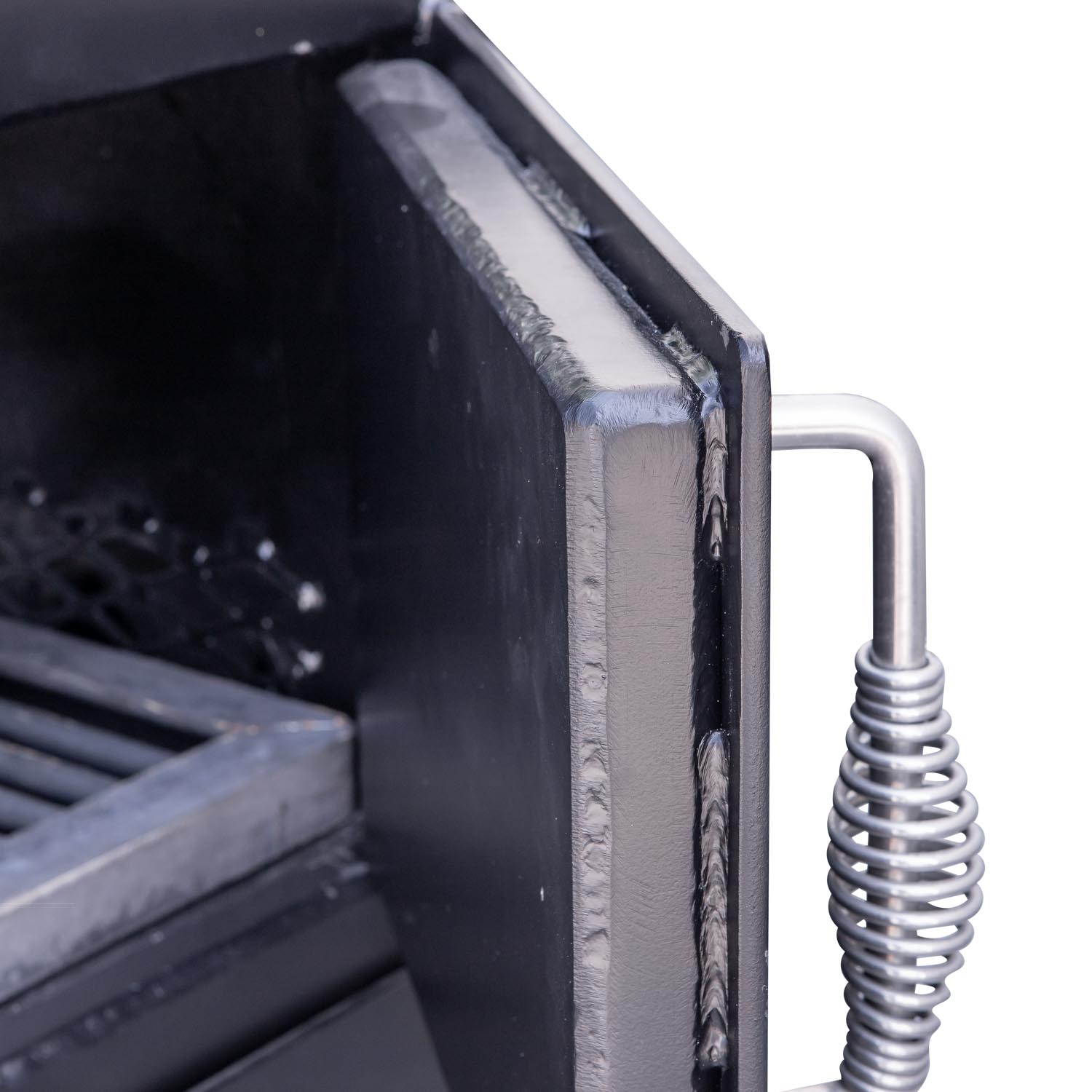

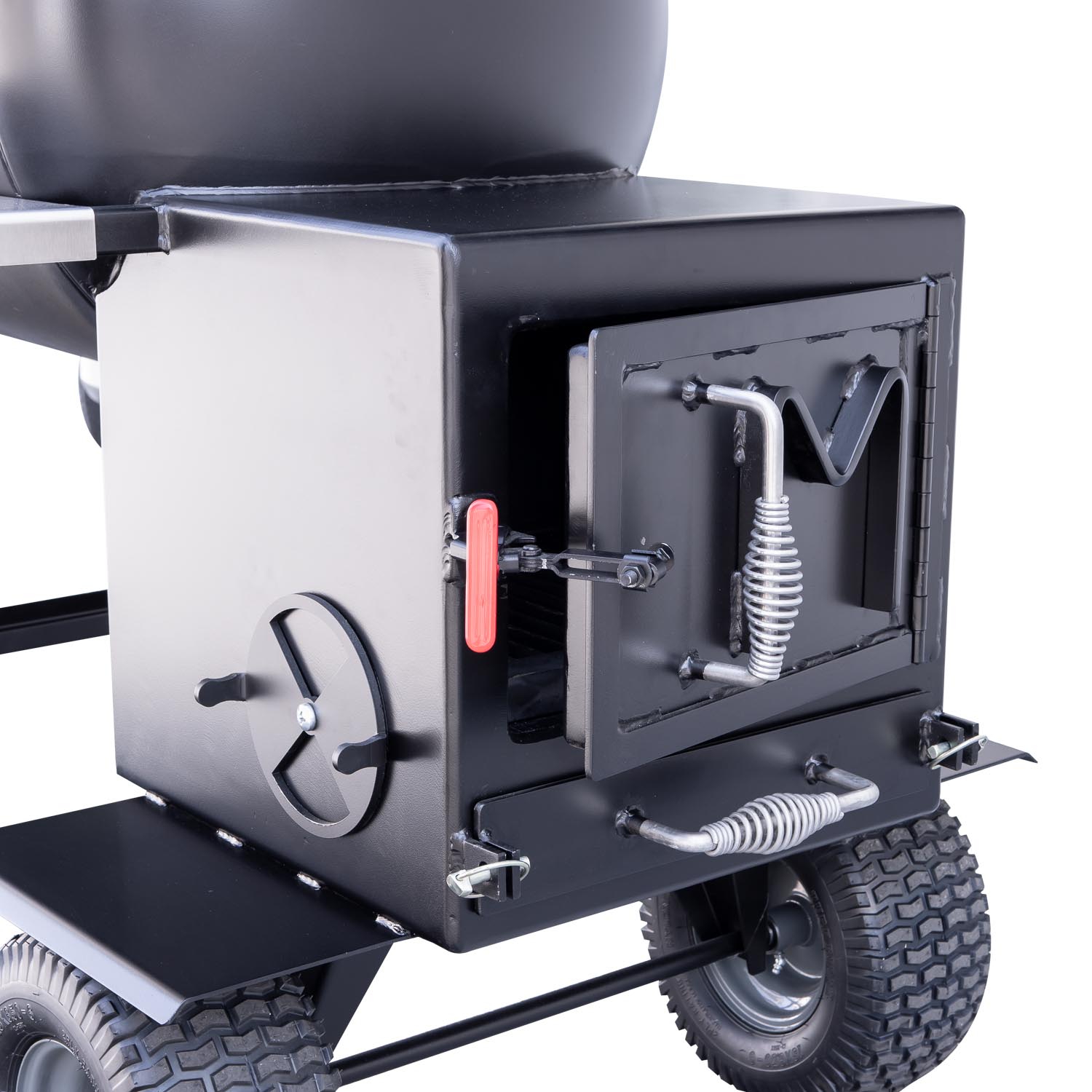

Stay cool handles and firebox door

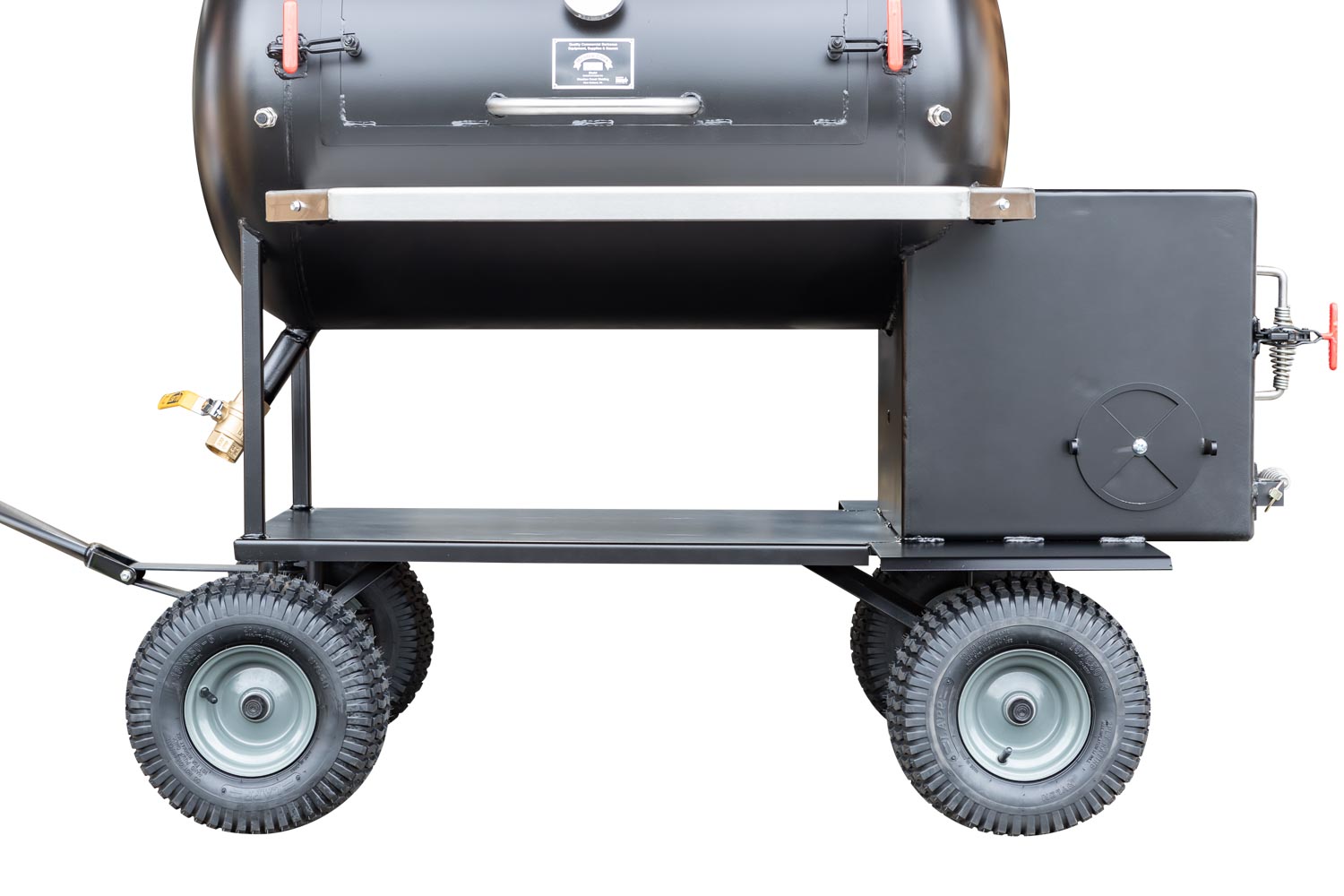

Exterior work shelf
Stainless steel calibratable thermometer

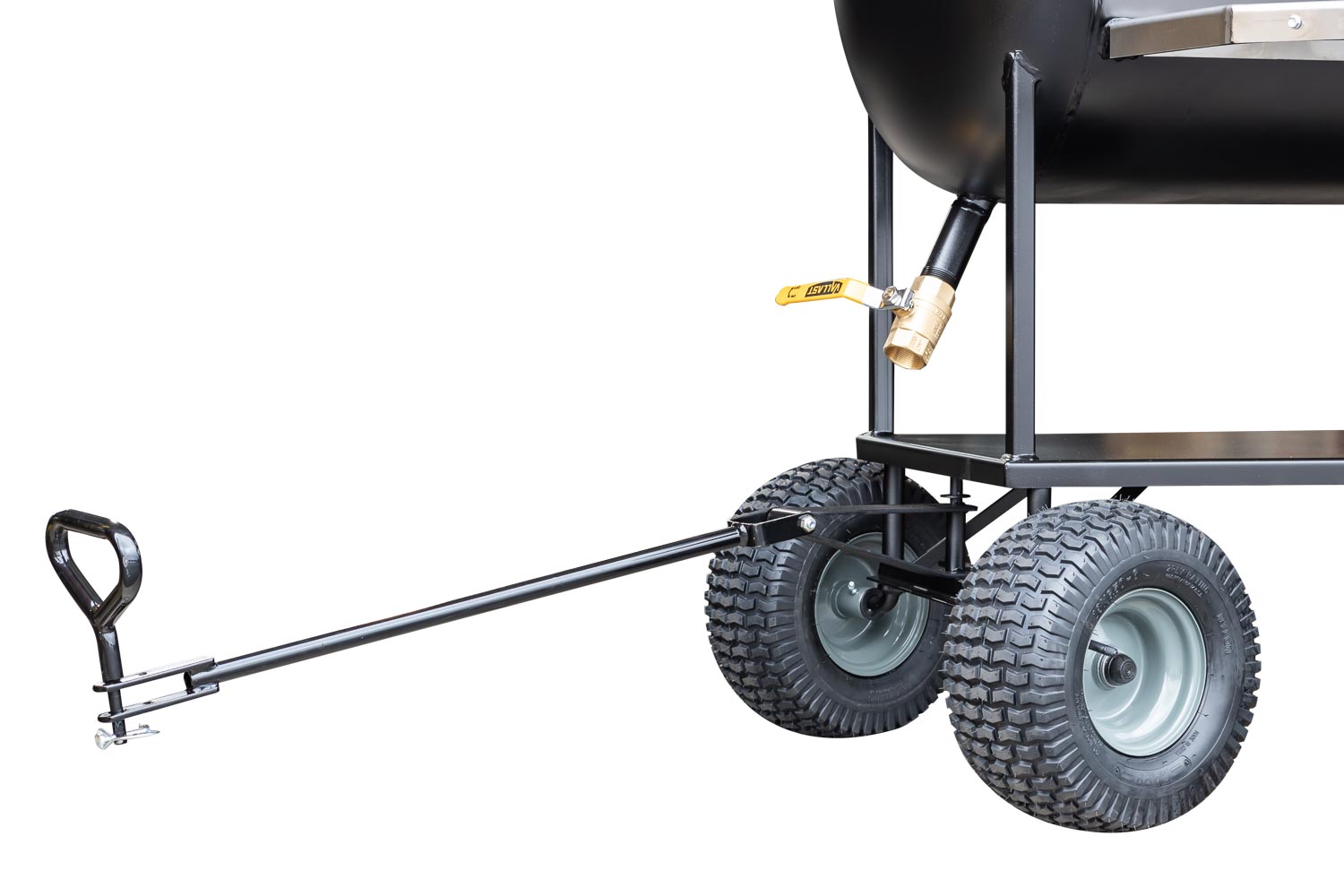

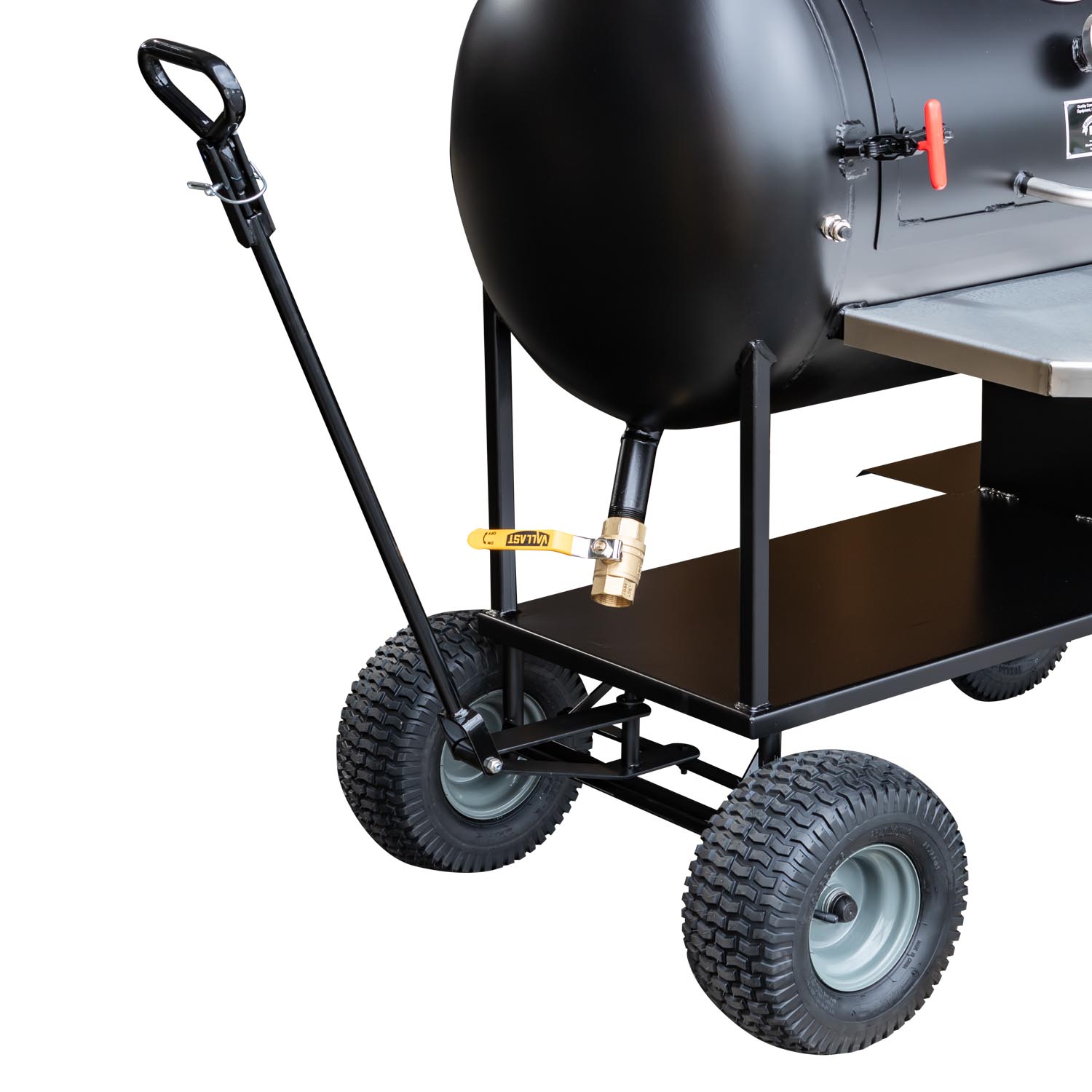

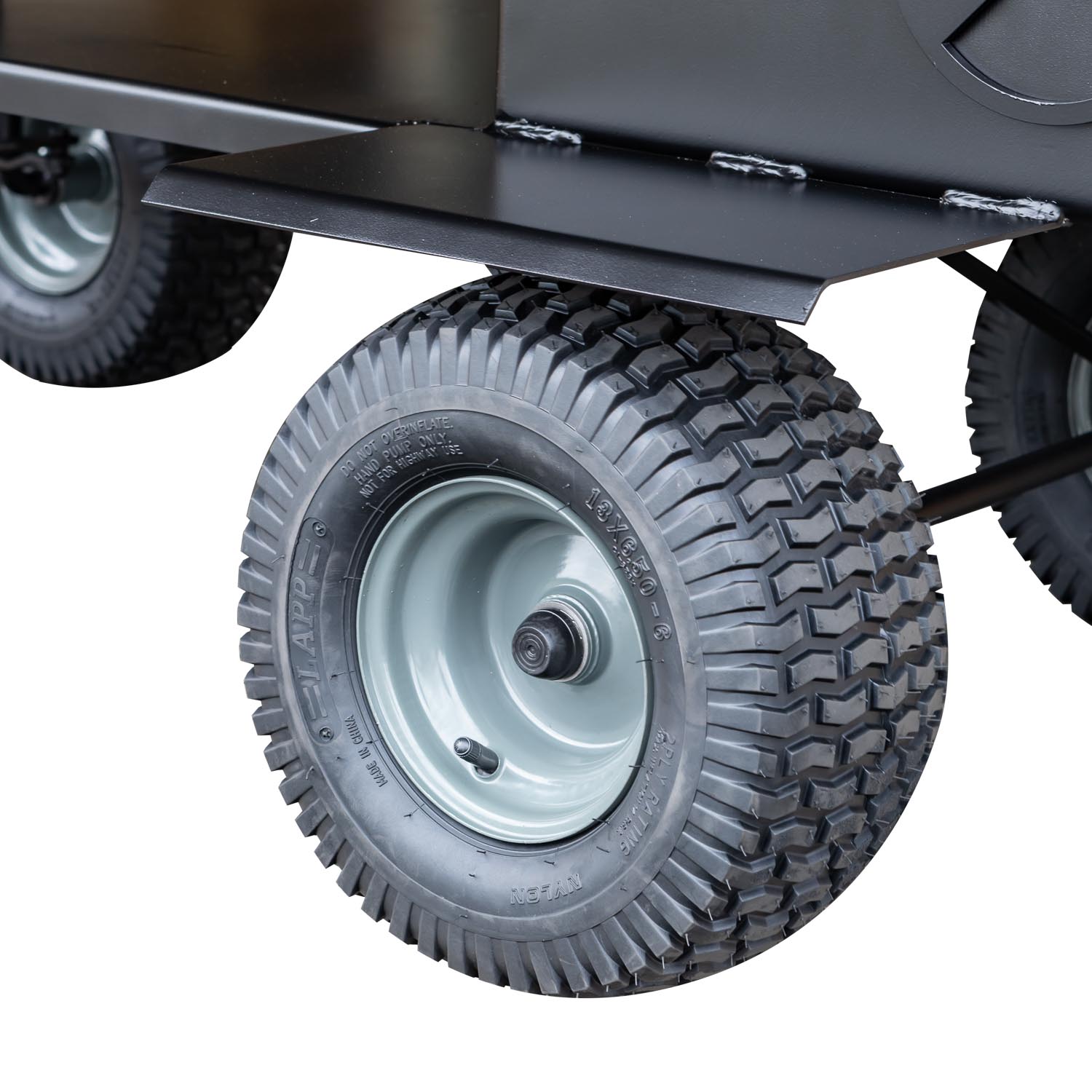

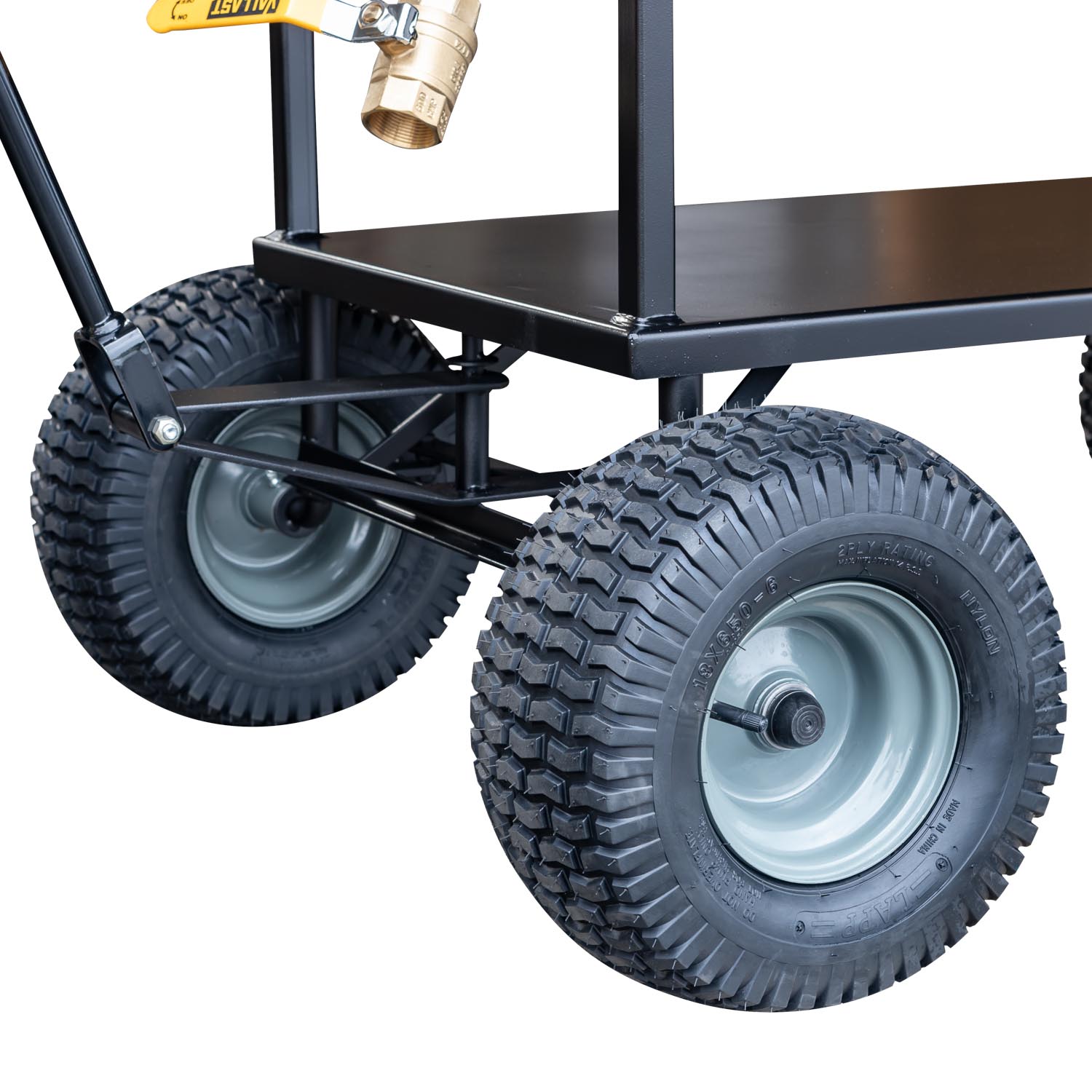

Heavy-duty pneumatic turf tires
8″ semi-pneumatic casters with brakes
Heat baffles on firebox protect the tires from excessive heat.

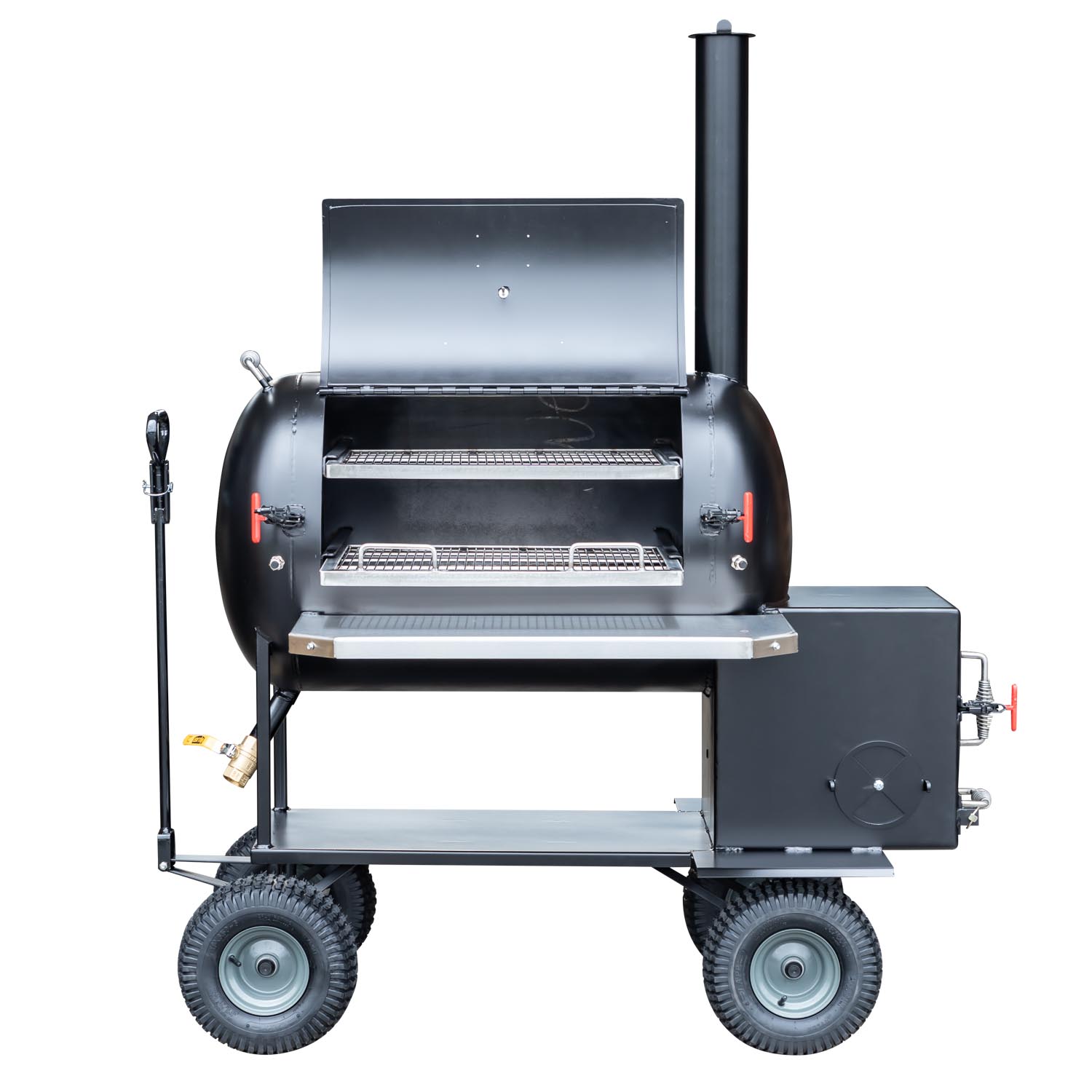

Cooking grates are made of rust-free food-grade T304 stainless steel rod and easy to clean.
Built in water pan helps keep your meat moist when water smoking with apple juice or other liquid.
Tanks are made of 3/16” plate steel and fireboxes of 1/4” plate steel and painted with black heat-resistant paint in an attractive matte finish.
Additional information
Overall Dimensions
64"l x 44"w x 76"h
Cooking Area
7.29 sq. ft. (1,050 sq. in.)
Top Grate Dimensions
25” x 20”
Space Above Top Grate
4.5”
Bottom Grate Dimensions
25” x 22”
Space Between Grates
5.5”
Grate Style
Wire Grid With 1/2” Spacing
Tank Dimensions
23.375” x 43.25” (70-gallon)
Metal Thickness on Tank
0.1875”
Fire Box Dimensions
18.5” Cube (Inside: 18” x 18” x 13”)
Metal Thickness on Fire Box
0.25”
Net Weight
535 lbs.
Shipping Weight
705 lbs.
Shipping Dimensions
78"l x 48"w x 85"h
Capacity of Pork Butts
7-8
Capacity of Baby Back Ribs
7-8
Capacity of Spare Ribs
6
Capacity of Whole Briskets
5-6
Capacity of Whole Chickens
12
Capacity of Whole Pigs
20-25 lbs.
